Mechanism on Heterogeneous Nucleation of the Primary Al Phase on TiAl₃ of a Hot-Dip Zn-11%Al-3%Mg-0.2%Si Coating on Steel Sheet

Abstract:

The solidification structure of a hot-dip Zn-11%Al-3%Mg-0.2%Si coating with a Ti addition on a steel substrate was investigated. Steel sheet was coated using a laboratory hot-dip galvanizing simulator. The coating was subsequently characterized via optical and high resolution scanning electron microscopy with EBSD and high temperature X-ray diffractometry. The hot-dip coating consisted of a combination of a Zn/Al/MgZn2 ternary eutectic structure, primary Al phase and MgZn2 phase. TiAl3 acts as a heterogeneous nucleation site for Al, which was shown to have perfect lattice coherency with TiAl3 as epitaxial Al growth from the TiAl3 was found. The growth direction of Al is along <110> and has a random texture, whereas Zn has a rather strong ND//<0001> fiber texture.

You might also be interested in these eBooks

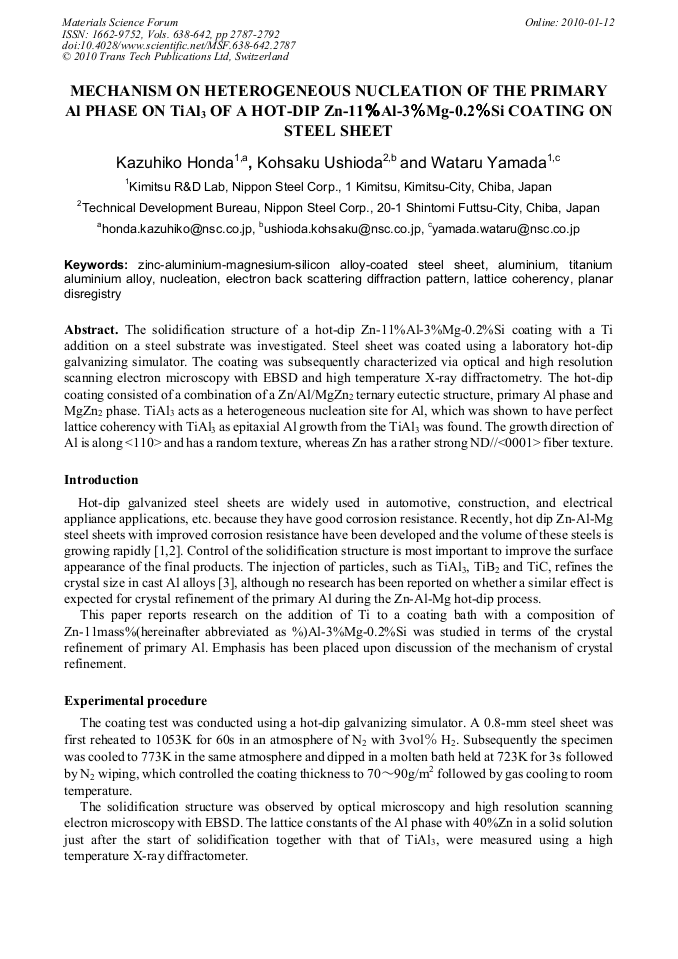

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 638-642)

Pages:

2787-2792

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.638-642.2787

Citation:

Cite this paper

Online since:

January 2010

Authors:

Kazuhiko Honda, Kohsaku Ushioda, Wataru Yamada

Keywords:

Aluminum (Al), Electron Back Scattering Diffraction Pattern, Lattice Coherency, Nucleation, Planar Disregistry, Titanium-Aluminum Alloys, Zinc-Aluminium-Magnesium-Silicon Alloy-Coated Steel Sheet

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] T. Tsujimura, A. Komatsu and A. Andoh: Proc. 5th Int. Conf. on Zinc and Zinc Alloy Coated Steel Sheet (Galvatech' 01), Verlag Stahleisen GmbH, Düsseldorf, (2001), p.145.

Google Scholar

[2] S. Tanaka, K. Honda, A. Takahashi, Y. Morimoto, M. Kurosaki, H. Shindo, K. Nishimura and M. Sugiyama: Proc. 5th Int. Conf. on Zinc and Zinc Alloy Coated Steel Sheet (Galvatech' 01), Verlag Stahleisen GmbH, Düsseldorf, (2001), p.153.

Google Scholar

[3] A. Kamio: J. JILM, Vol. 52 (2002), p.479.

Google Scholar

[4] K. Honda, W. Yamada and K. Ushioda: Mater. Trans., Vol. 49 (2008), p.1395.

Google Scholar

[5] K. Honda, K. Ushioda, W. Yamada, K. Tanaka and H. Hatanaka: Mater. Trans., Vol. 49 (2008), p.1401.

Google Scholar

[6] F. Gonzales and M. Rappaz: Metall. Mater. Trans. A, 37A (2006), p.2797.

Google Scholar

[7] T. Ohashi, T. Hiromoto, H. Fujii, Y. Nuri and K. Asano: Tetsu-to-Hagane, Vol. 62 (1976), p.614.

Google Scholar
