Influence of Molybdenum and Copper on the Corrosion Resistance of High Strength Austenitic Steels

Abstract:

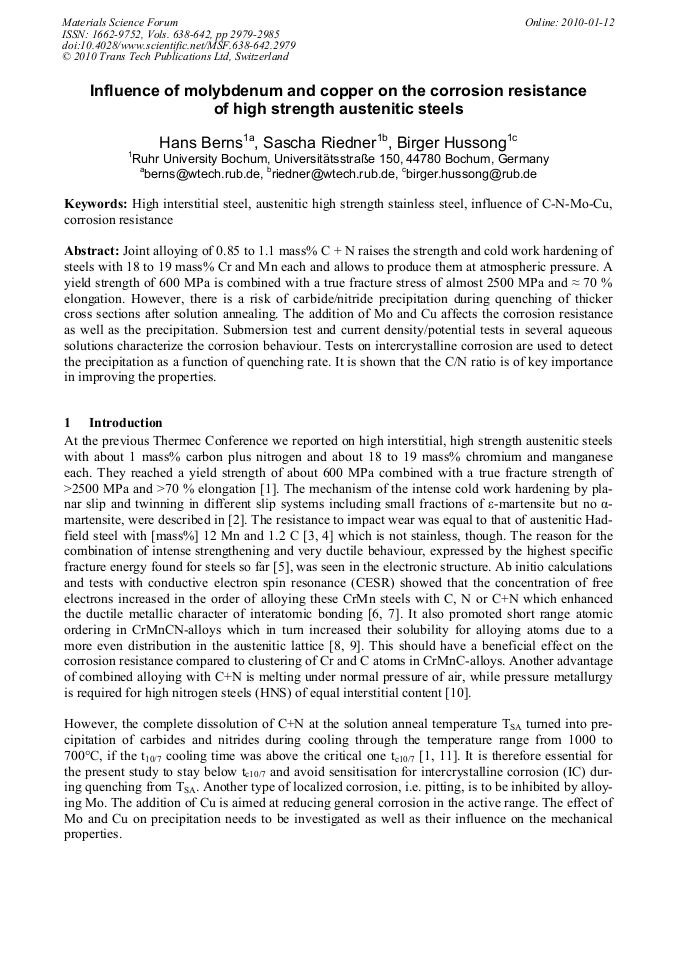

Joint alloying of 0.85 to 1.1 mass% C + N raises the strength and cold work hardening of steels with 18 to 19 mass% Cr and Mn each and allows to produce them at atmospheric pressure. A yield strength of 600 MPa is combined with a true fracture stress of almost 2500 MPa and ≈ 70 % elongation. However, there is a risk of carbide/nitride precipitation during quenching of thicker cross sections after solution annealing. The addition of Mo and Cu affects the corrosion resistance as well as the precipitation. Submersion test and current density/potential tests in several aqueous solutions characterize the corrosion behaviour. Tests on intercrystalline corrosion are used to detect the precipitation as a function of quenching rate. It is shown that the C/N ratio is of key importance in improving the properties.

• Periodical: Materials Science Forum (Volumes 638-642)
• Pages: 2979-2985
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.638-642.2979
• Online since: January 2010
• Authors: Hans Berns, Sascha Riedner, Birger Hussong
• Keywords: Austenitic High Strength Stainless Steel, Corrosion Resistance, High Interstitial Steel, Influence of C-N-Mo-Cu

References

[1] H. Berns, V.G. Gavriljuk, S. Riedner, A. Tyshchenko: steel research int. 78 (2007) No. 9, pp.714-719.

DOI: 10.1002/srin.200706274

[2] V.G. Gavriljuk, A.I. Tyshchenko, V.V. Bliznuk, I.L. Yakovleva, S. Riedner, H. Berns: steel research int. 79 (2008) No. 6, pp.413-422.

DOI: 10.1002/srin.200806147

[3] Yu. Petrov, V.G. Gavriljuk, H. Berns, F. Schmalt: WEAR 409 (2006) 6, pp.687-691.

DOI: 10.1016/j.wear.2005.04.009

[4] V.G. Gavriljuk, O. Razumov, Yu. Petrov, I. Surzhenko, H. Berns: steel research int. 78 (2007) No. 9, pp.720-723.

DOI: 10.1002/srin.200706275

[5] H. Berns, V.G. Gavriljuk: Key Engineering Materials Vols. 345-346, Trans Tech Publ. (2007) pp.421-424, online at http/www. scientific. net.

DOI: 10.4028/www.scientific.net/kem.345-346.421

[6] B.D. Shanina, V.G. Gavriljuk, H. Berns: steel research int. 78 (2007) No. 9, pp.724-728.

[7] V.G. Gavriljuk, B.D. Shanina, H. Berns: Acta Materialia 56 (2008) pp.5071-5082.

DOI: 10.1016/j.actamat.2008.06.021

[8] V.G. Gavriljuk, B. Shanina, H. Berns: A physical concept for alloying steels with carbon + nitrogen, Proceedings of the 7th European Symposium on Martensitic Transformations and Shape Memory Alloys, ESOMAT 2006, Special Issue Section of Materials Science & Engineering A, Vol. A481-482 (2008).

DOI: 10.1016/j.msea.2006.11.186

[9] H. Berns, V.G. Gavriljuk, B. Shanina: Advanced Engin. Mat., 10 (2008) 12, pp.1083-1093.

[10] V.G. Gavriljuk, H. Berns: High �itrogen Steels, Springer Berlin/Heidelberg, (1999).

[11] S. Riedner, H. Berns: HTM 63 (2008) 2, pp.84-94.

[12] ThermoCalc Users Guide, Version Q. ThermoCalc Software AB, Stockholm, Schweden, (2004).

[13] G.E. Totten (Ed. ): Steel Heat Treatment, Equipment and Process Design, Chap. 2. Taylor & Francis, Boca Raton/USA, (2007).

[14] R.F.A. Jargelius-Pettersson, Doctoral Thesis, Royal Inst. Of Technol., Stockholm, ISBN 917170-337-3, (1997).

[15] P. Forchhammer, H.J. Engel: Werkstoffe und Korrosion 20 (1969), pp.1-11.

[16] H. Hanninen.

[17] A.L. Schaeffler, W.T. Delong: Welding Research (1947) 601, (1973) 281, (1974) 273.

[18] J. Bernauer: Doctoral Thesis, ETH Zürich No. 15457, (2004).

[19] J. Bernauer, M.O. Speidel: in Proc. HNS 2003, Speidel M.O. (ed. ) vdf Hochschulverlag, Zürich, pp.159-168.
