Temperature Dependence of Austenite Nucleation Site on Reversion of Lath Martensite

Article Preview

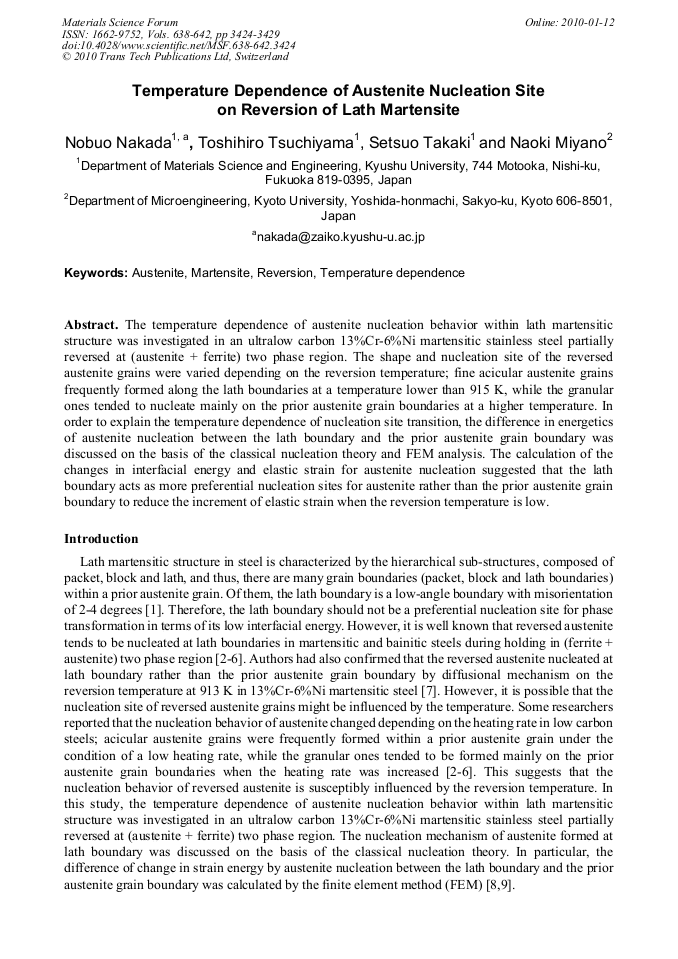

Abstract:

The temperature dependence of austenite nucleation behavior within lath martensitic structure was investigated in an ultralow carbon 13%Cr-6%Ni martensitic stainless steel partially reversed at (austenite + ferrite) two phase region. The shape and nucleation site of the reversed austenite grains were varied depending on the reversion temperature; fine acicular austenite grains frequently formed along the lath boundaries at a temperature lower than 915 K, while the granular ones tended to nucleate mainly on the prior austenite grain boundaries at a higher temperature. In order to explain the temperature dependence of nucleation site transition, the difference in energetics of austenite nucleation between the lath boundary and the prior austenite grain boundary was discussed on the basis of the classical nucleation theory and FEM analysis. The calculation of the changes in interfacial energy and elastic strain for austenite nucleation suggested that the lath boundary acts as more preferential nucleation sites for austenite rather than the prior austenite grain boundary to reduce the increment of elastic strain when the reversion temperature is low.

You might also be interested in these eBooks

Info:

Periodical:

Materials Science Forum (Volumes 638-642)

Pages:

3424-3429

Citation:

Online since:

January 2010

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2010 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] S. Morito, X. Huang, T. Furuhara, T. Maki and N. Hansen : Acta Materialia, 54 (2006), p.5323.

DOI: 10.1016/j.actamat.2006.07.009

Google Scholar

[2] V. D. Sadovskii : Problems of physical metallurgy and heat treatment, Moscow, (1956), p.31.

Google Scholar

[3] V. D. Sadovskii and B. K. Sokolov : Problems of physical metallurgy and heat treatment, Moscow, (1960), p.5.

Google Scholar

[4] S. S. D'Yachenko and G. V. Fedorov : Fiz. Met. Metalloved., 18 (1964), p.73.

Google Scholar

[5] S. Matsuda and Y. Okamura : Tetsu-to-Hagane, 60 (1974), p.226.

Google Scholar

[6] T. Hara, H. Asahi, T. Koseki, M. Sugiyama : CAMP-ISIJ, 19 (2006), p.456.

Google Scholar

[7] N. Nakada, T. Tsuchiyama, S. Takaki and S. Hashizume : ISIJ International, 47(2007), p.1527.

Google Scholar

[8] U. Dahmen : Acta Metall., 30 (1982), p.63.

Google Scholar

[9] N. Miyano, A. Takahashi, J. Miyazaki and K. Ameyama : Material Transactions, 19 (2008), p.471.

Google Scholar

[10] J. K. Lee and H. I. Aaronson : Acta Metallurgica, 23 (1975), p.799, p.809.

Google Scholar

[11] JSME Data Book The Modulus of Elasticity of Metals and Alloys, The Japan Society of Mechanical Engineers, Tokyo, (2001).

Google Scholar
