Effect of Grain Refinement on Mechanical Properties in 25Cr-1N Austenitic Steel

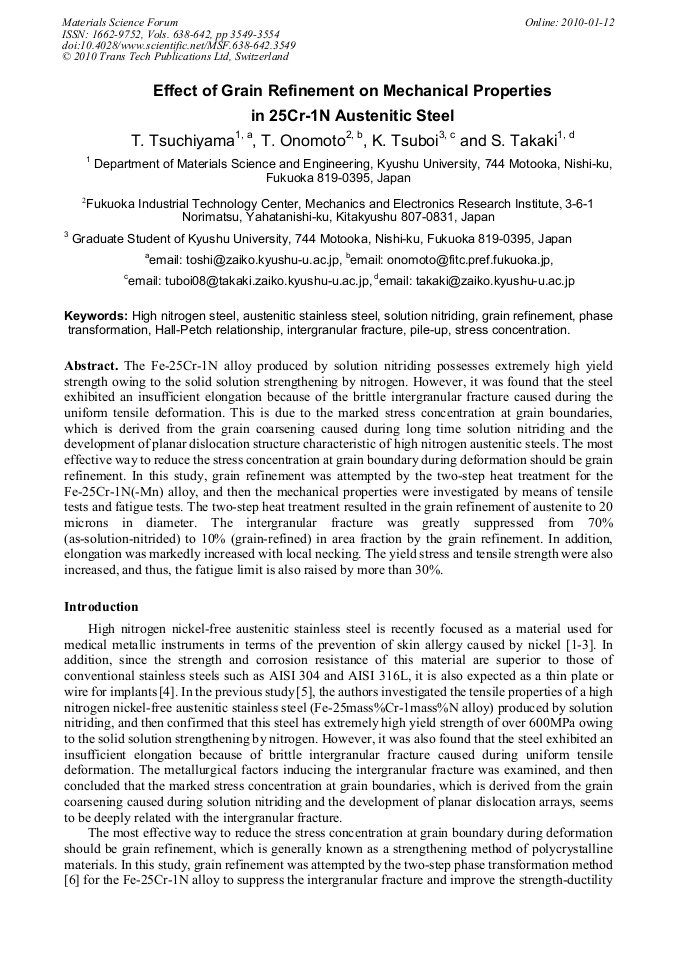

Abstract:

The Fe-25Cr-1N alloy produced by solution nitriding possesses extremely high yield strength owing to the solid solution strengthening by nitrogen. However, it was found that the steel exhibited an insufficient elongation because of the brittle intergranular fracture caused during the uniform tensile deformation. This is due to the marked stress concentration at grain boundaries, which is derived from the grain coarsening caused during long time solution nitriding and the development of planar dislocation structure characteristic of high nitrogen austenitic steels. The most effective way to reduce the stress concentration at grain boundary during deformation should be grain refinement. In this study, grain refinement was attempted by the two-step heat treatment for the Fe-25Cr-1N(-Mn) alloy, and then the mechanical properties were investigated by means of tensile tests and fatigue tests. The two-step heat treatment resulted in the grain refinement of austenite to 20 microns in diameter. The intergranular fracture was greatly suppressed from 70% (as-solution-nitrided) to 10% (grain-refined) in area fraction by the grain refinement. In addition, elongation was markedly increased with local necking. The yield stress and tensile strength were also increased, and thus, the fatigue limit is also raised by more than 30%.

• Periodical: Materials Science Forum (Volumes 638-642)
• Pages: 3549-3554
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.638-642.3549
• Online since: January 2010
• Authors: Toshihiro Tsuchiyama, T. Onomoto, K. Tsuboi, Setsuo Takaki
• Keywords: Austenitic Stainless Steel, Grain Refinement, Hall-Petch Relationship, High Nitrogen Steel (HNS), Intergranular Fracture, Phase Transformation, Pile-Up, Solution Nitriding, Stress Concentration

References

[1] N. Hallab, K. Merritt and J. J. Jacobs: J. Bone Joint Surg. Am., 83-A (2001), 428.

[2] J. Menzel, W. Kirschner and G. Stein: ISIJ Int., 36 (1996), 893.

[3] M. Sumita, T. Hanawa and S. H. Teoh: Mater. Sci. Eng. C, 24 (2004), 753.

[4] T. Nakanishi, T. Tsuchiyama, H. Mitsuyasua, Y. Iwamoto and S. Takaki: Mater. Sci. Eng. A, 460-461 (2007), 186.

[5] T. Tsuchiyama, Y. Fujii, Y. Terazawa, K. Nakashima, T. Ando and S. Takaki: ISIJ Int., 48 (2008), 861.

DOI: 10.2355/isijinternational.48.861

[6] N. Nakada, N. Hirakawa, T. Tsuchiyama and S. Takaki: Scr. Mater., 57 (2007), 153.

[7] JIS Hand Book Iron and Steel I, Japan Standard Association, Tokyo, (2006), 638.

[8] T. Tsuchiyama, H. Ito, K. Kataoka and S. Takaki: Metall. Mater. Trans. A, 34A (2003), 2591.

[9] S. Takaki, S. Tanimoto, K. Tomimura and Y. Tokunaga: Tetsu-to-Hagané, 74 (1988), 1058.

[10] T. Tsuchiyama, H. Uchida, K. Kataoka and S. Takaki: ISIJ Int., 42 (2002), 1438.

[11] L. -Å. Norström: Metal Sci., 11 (1977), 208.

[12] P. J. Uggowitzer and M. O. Speidel: Proc. Int. Conf. Stainless Steels, Chiba, (1991), 762.
