Precipitation Behavior of Steels with Various Copper during Continuous Cooling

Abstract:

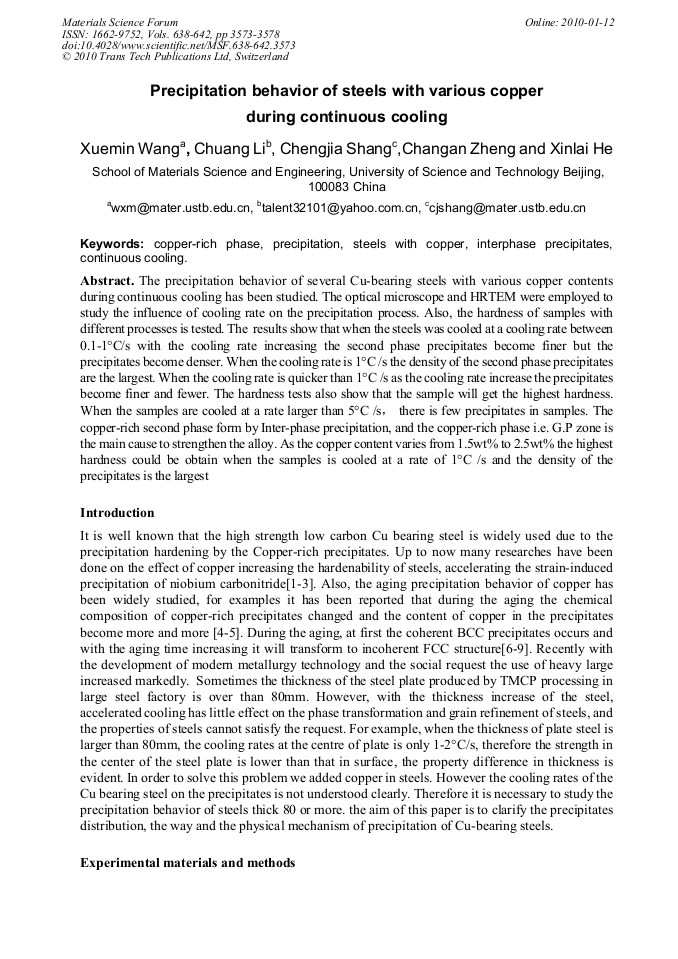

The precipitation behavior of several Cu-bearing steels with various copper contents during continuous cooling has been studied. The optical microscope and HRTEM were employed to study the influence of cooling rate on the precipitation process. Also, the hardness of samples with different processes is tested. The results show that when the steels was cooled at a cooling rate between 0.1-1°C/s with the cooling rate increasing the second phase precipitates become finer but the precipitates become denser. When the cooling rate is 1°C /s the density of the second phase precipitates are the largest. When the cooling rate is quicker than 1°C /s as the cooling rate increase the precipitates become finer and fewer. The hardness tests also show that the sample will get the highest hardness. When the samples are cooled at a rate larger than 5°C /s， there is few precipitates in samples. The copper-rich second phase form by Inter-phase precipitation, and the copper-rich phase i.e. G.P zone is the main cause to strengthen the alloy. As the copper content varies from 1.5wt% to 2.5wt% the highest hardness could be obtain when the samples is cooled at a rate of 1°C /s and the density of the precipitates is the largest

• Periodical: Materials Science Forum (Volumes 638-642)
• Pages: 3573-3578
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.638-642.3573
• Online since: January 2010
• Authors: Xue Min Wang, Chuang Li, Cheng Jia Shang, Chang An Zheng, Xin Lai He
• Keywords: Continuous Cooling, Copper Rich Phase, Interphase Precipitation, Precipitation, Steel with Copper

References

[1] Deschamps A, Militzer M, Poole W J: ISIJ International Vol. 41(2001), p.196.

[2] Yokio T, Takahashi M, Maruyama N, et al: J of Materials Science Vol. 36(2001), p.5757.

[3] Wang X, Zhou G, Yang S et al: The journal of iron and steel research Vol. 12(2000), p.40.

[4] Thompson S W，Krauss G: Metall. and Mater. Transactions A Vol. 27A(1996), p.1573.

[5] P. J Othen, M.L. Jenkins and G.D. Smith: Philosophical magazine A Vol. 70 (1994), p.15.

[6] Monzen, R. Jenkins, M. L: Philosophical Magazine Leters Vol. 80(2000), p.137.

[7] N Maruyama, M Sugiyama, T Hara: Materials Transactions JIM Vol. 40(1999), p.268.

[8] Jing LIU, Daruo XIE, Dahai WANG, et al: ISIJ International Vol. 39(1999), p.616.

[9] Seiya Yanagital, Toshimasa Yoshiie, Hiromitsu Ino: J. Japan Inst. Metals Vol. 64(2000), p.118. 15µm 300nm 0 2 4 6 8 10 40 60 80 100 120 140 160 180 200 220 240 260 280 300 Hardness, Hv Cooling rate, o C/s 2# 3# 4.
