Pack Cementation Treatment of Titanium Using Tetracalcium Phosphate Powder for Biomedical Applications

Kyosuke Ueda; Hajime Suto; Kaori Nakaie; Takayuki Narushima

doi:10.4028/www.scientific.net/MSF.654-656.2172

Paper Titles

Self-Accommodation Morphology in Ti-Nb-Al Shape Memory Alloy
p.2154

Fabrication of Ti-Based Biodegradable Material Composites Prepared by Spark Plasma Sintering Method
p.2158

Calcium Phosphate Coating on Titanium Using Dry Process
p.2162

MAO-Prepared Hydroxyapatite Coating on Ultrafine-Grained Titanium
p.2168

Pack Cementation Treatment of Titanium Using Tetracalcium Phosphate Powder for Biomedical Applications
p.2172

Phase and Morphology of Carbides in ASTM F75 Co-Cr-Mo-C Alloys Formed at 1473 to 1623 K
p.2176

Heat Treatment of ASTM F75 Co-Cr-Mo-C-Si-Mn Alloys
p.2180

Grain Refining Technique and Mechanical Properties of the Biomedical Co-Cr-Mo Alloy
p.2184

Effect of Temperature and Strain Rate on Microstructure of Dynamically Recrystallized Ni₄₅Co₅ Mn_36.7In_13.3 Alloy
p.2188

HomeMaterials Science ForumMaterials Science Forum Vols. 654-656Pack Cementation Treatment of Titanium Using...

Pack Cementation Treatment of Titanium Using Tetracalcium Phosphate Powder for Biomedical Applications

Abstract:

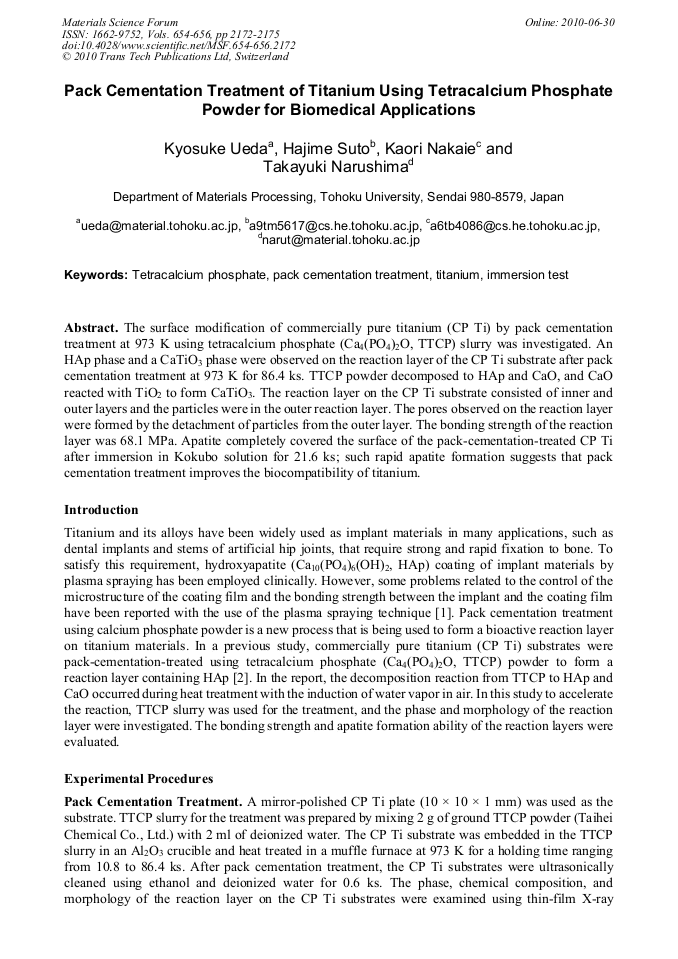

The surface modification of commercially pure titanium (CP Ti) by pack cementation treatment at 973 K using tetracalcium phosphate (Ca4(PO4)2O, TTCP) slurry was investigated. An HAp phase and a CaTiO3 phase were observed on the reaction layer of the CP Ti substrate after pack cementation treatment at 973 K for 86.4 ks. TTCP powder decomposed to HAp and CaO, and CaO reacted with TiO2 to form CaTiO3. The reaction layer on the CP Ti substrate consisted of inner and outer layers and the particles were in the outer reaction layer. The pores observed on the reaction layer were formed by the detachment of particles from the outer layer. The bonding strength of the reaction layer was 68.1 MPa. Apatite completely covered the surface of the pack-cementation-treated CP Ti after immersion in Kokubo solution for 21.6 ks; such rapid apatite formation suggests that pack cementation treatment improves the biocompatibility of titanium.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 654-656)

Pages:

2172-2175

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.654-656.2172

Citation:

Cite this paper

Online since:

June 2010

Authors:

Kyosuke Ueda, Hajime Suto, Kaori Nakaie, Takayuki Narushima

Keywords:

Immersion Test, Pack Cementation Treatment, Tetracalcium Phosphate, Titanium

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] I.S. Lee, D.H. Kim, H.E. Kim, Y.C. Jung and C.H. Han: Biomaterials, Vol. 23, (2002), pp.609-615.

Google Scholar

[2] K. Ueda, H. Suto and T. Narushima: Met. Mater. Int., in press.

Google Scholar

[3] K. Ueda, T. Narushima, T. Goto, M. Taira and T. Katsube: Biomed. Mater., Vol. 2, (2007), p. S160-S166.

Google Scholar

[4] T. Kokubo and H. Takadama: Biomaterials, Vol. 27, (2006), pp.2907-2915.

Google Scholar

[5] F.H. Lin, L.C. Jen, C.K. Shao and S.J. Sheng: Mater. Sci. Eng. C, Vol. 13, (2000), pp.97-104.

Google Scholar

[6] K. Kusabiraki, T. Sugihara and T. Ooka: ISIJ, Vol. 78, (1992), pp.829-836.

Google Scholar

[7] S.W.K. Kweh, K.A. Khor and P. Cheang: Biomaterials, Vol. 23, (2002), pp.775-785. Fig. 5 Effect of immersion time in Kokubo solution, (a) 10. 8 and (b) 21. 6 ks, on apatite formation of reaction layer on pack-cementation-treated CP Ti substrates.

Google Scholar
