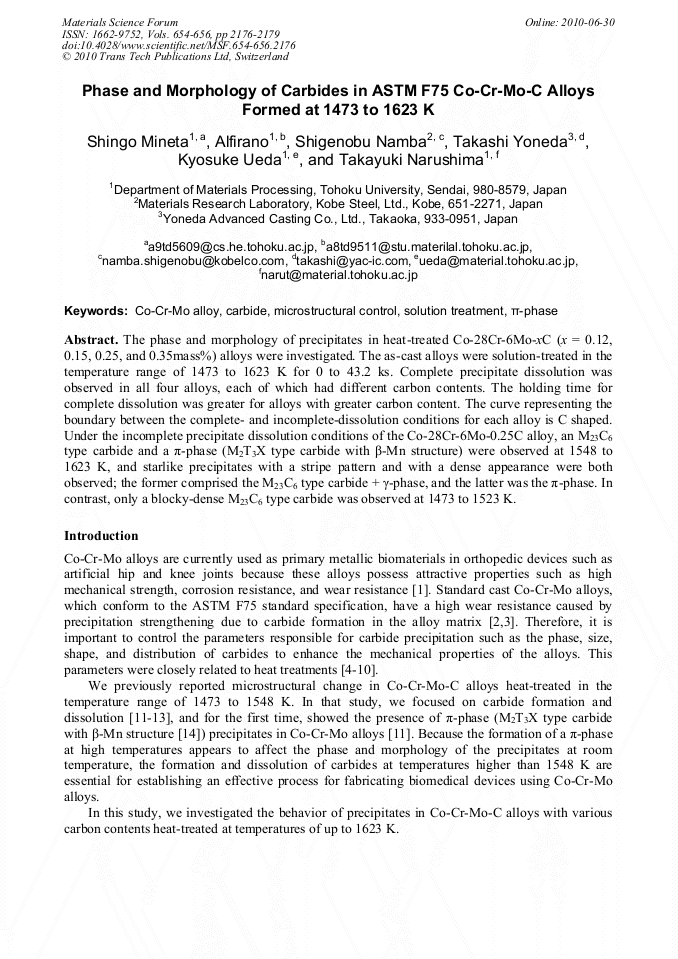

Phase and Morphology of Carbides in ASTM F75 Co-Cr-Mo-C Alloys Formed at 1473 to 1623 K

Abstract:

The phase and morphology of precipitates in heat-treated Co-28Cr-6Mo-xC (x = 0.12, 0.15, 0.25, and 0.35mass%) alloys were investigated. The as-cast alloys were solution-treated in the temperature range of 1473 to 1623 K for 0 to 43.2 ks. Complete precipitate dissolution was observed in all four alloys, each of which had different carbon contents. The holding time for complete dissolution was greater for alloys with greater carbon content. The curve representing the boundary between the complete- and incomplete-dissolution conditions for each alloy is C shaped. Under the incomplete precipitate dissolution conditions of the Co-28Cr-6Mo-0.25C alloy, an M23C6 type carbide and a π-phase (M2T3X type carbide with β-Mn structure) were observed at 1548 to 1623 K, and starlike precipitates with a stripe pattern and with a dense appearance were both observed; the former comprised the M23C6 type carbide + γ-phase, and the latter was the π-phase. In contrast, only a blocky-dense M23C6 type carbide was observed at 1473 to 1523 K.

• Periodical: Materials Science Forum (Volumes 654-656)
• Pages: 2176-2179
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.654-656.2176
• Online since: June 2010
• Authors: Shingo Mineta, Alfirano Alfirano, Shigenobu Namba, Takashi Yoneda, Kyosuke Ueda, Takayuki Narushima
• Keywords: Carbide, Co-Cr-Mo Alloy, Microstructural Control, Solution Treatment, π-Phase

References

[1] M. Niinomi: Metall. Mater. Trans. A Vol. 33 (2002), p.477.

[2] F.R. Morral: J. Meter. Vol. 1 (1966), p.384.

[3] P.C. Noble: Met. Forum Vol. 6 (1983), p.59.

[4] H.S. Dobbs and J.L.M. Robertson: J. Mater. Sci. Vol. 18 (1983), p.391.

[5] L.E. Ramírez, M. Castro, M. Méndez, J. Lacaze, M. Herrera and G. Lesoult: Scr. Mater. Vol. 47 (2002), p.811.

[6] A.J.T. Clemow and B.L. Daniell: Mater. Res. Vol. 13 (1979), p.265.

[7] M. Caudillo, M.H. Trejo, M.R. Castro, E. Ramírez, C.R. González and J.I. Juárez: J. Biomed. Mater. Res. Vol. 59 (2002), p.378.

[8] H. Mancha, E. Carranza, J.I. Escalante, G. Méndoza, M. Méndez, F. Cepeda and E. Valdés: Metall. Mater. Trans. A Vol. 32 (2001), p.979.

[9] C.M. Ocampo, M. Talavera and H. Lopez: Metall. Mater. Trans. A Vol. 30 (1999), p.611.

[10] M. Herrera, A. Espinoza, J. Méndez, M. Castro, J. López and J. Rendón: J. Mater. Sci. Vol. 16 (2005), p.607.

[11] S. Mineta, S. Namba, T. Yoneda, K. Ueda, and T. Narushima: Metall. Mater. Trans. A accepted.

[12] S. Mineta, S. Namba, T. Yoneda, K. Ueda, and T. Narushima: Adv. Mater. Res. Vols. 89-91 (2010) p.377.

[13] S. Mineta, Alfirano, S. Namba, T. Yoneda, K. Ueda, and T. Narushima: Processing and Fabrication of Advanced Materials XVIII Vol. 3 (2009) p.1301.

[14] M. Kikuchi, S. Wakita, and R. Tanaka: Trans. ISIJ, Vol. 13 (1973), p.226.
