Microstructure for Printed Multilayer LTCC Tape of Different Paste Rheology

Abstract:

Screen printing is the most common method of transferring silver thick film paste to a low temperature co-fired ceramic tape. Silver paste with varying rheology will have a varying print quality. The effect of silver paste rheology on the microstructure is investigated. Although there are many parameters to be considered, this parameter is a critical parameter which will control the line width and roughness on the substrate. To study the effect of paste rheology, a test pattern design was printed on the Heraeus CT2000 LTCC tape using silver paste. Then the LTCC tape was stacked and laminated at pressure of 28 MPa and temperature of 65 oC for 10 minutes. The laminated sample then was fired up to 850 oC. The fired silver conductor printed on the LTCC tape then was analyzed. Prints were evaluated by scanning electron microscopy. It was found that silver paste with high viscosity produce a good microstructure.

You might also be interested in these eBooks

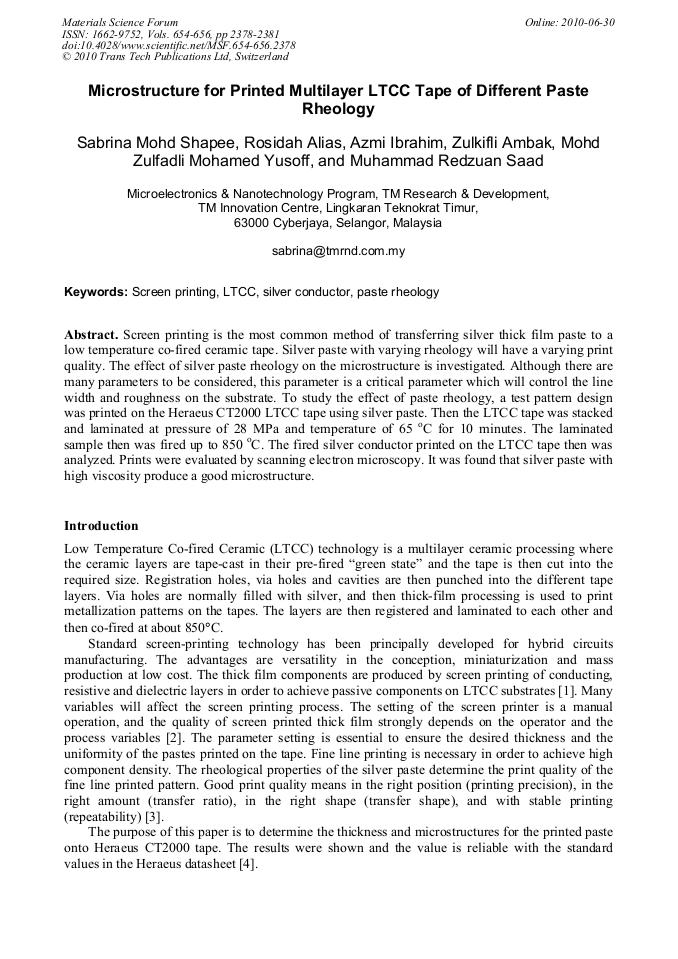

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 654-656)

Pages:

2378-2381

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.654-656.2378

Citation:

Cite this paper

Online since:

June 2010

Authors:

Sabrina Mohd Shapee, Rosidah Alias, Ibrahim Azmi, Zulkifli Ambak, Mohd Zulfadli Mohamed Yusoff, Muhammad Redzuan Saad

Keywords:

Low Temperature Co-Fired Ceramic (LTCC), Paste Rheology, Screen Printing, Silver Conductor

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] G.C. Dubey, Microelectronics and Reliability, Vol 14, (1975) p.427.

Google Scholar

[2] M.R. Parikh, W.F. Quilty, Jr. and K.M. Gardiner IEEE Trans. on Components, Hybrids and Manufacturing Technology, Vol. 14, No. 3, (1991), p.493.

DOI: 10.1109/33.83933

Google Scholar

[3] Y. Imanaka, Multilayered Low Temperature Cofired Ceramics (LTCC) Technology, Springer Science and Business Media Inc., New York, (2005).

DOI: 10.1007/b101196

Google Scholar

[4] Heraeus Design Guidelines from www. heraeus. com.

Google Scholar

[5] LTCC Production in 2003 KEKO Research Newsletter from www. keko-equipment. com.

Google Scholar

[6] J.E. Sergent, Screen Printing in Ceramic Interconnect Technology Handbook edited by Fred D. Barlow and Aicha Elshabini, CRC Press, (2007), p.199.

DOI: 10.1201/9781420018967.ch5

Google Scholar

[7] M. Lahti, Gravure Offset Printing for Fabrication Of Electronic Devices and Integrated Components in LTCC Modules, PhD Thesis, University Oulu, (2008).

Google Scholar
