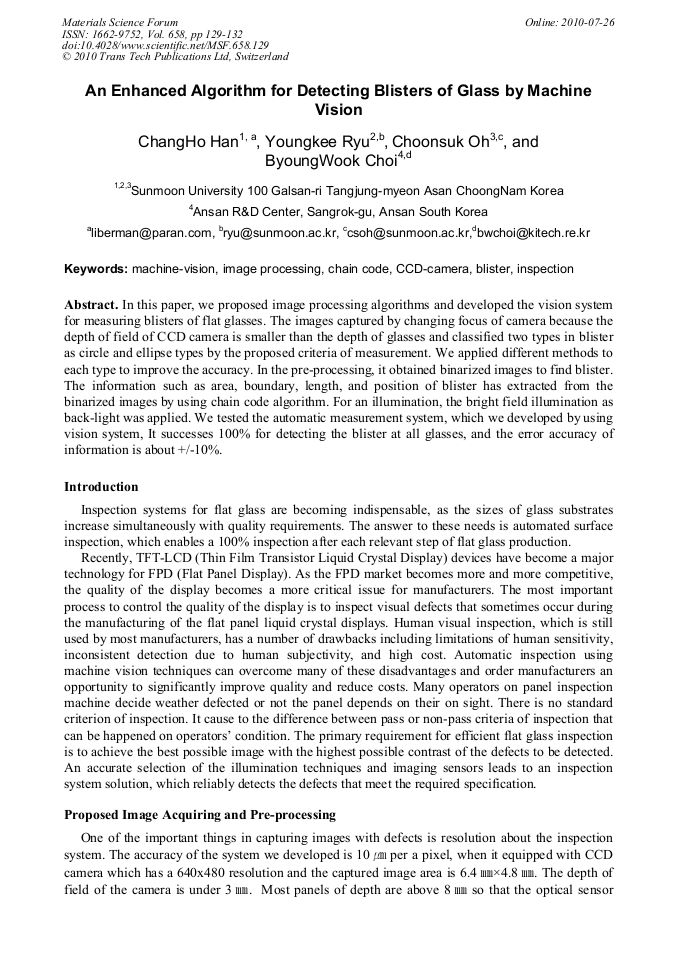

An Enhanced Algorithm for Detecting Blisters of Glass by Machine Vision

Abstract:

In this paper, we proposed image processing algorithms and developed the vision system for measuring blisters of flat glasses. The images captured by changing focus of camera because the depth of field of CCD camera is smaller than the depth of glasses and classified two types in blister as circle and ellipse types by the proposed criteria of measurement. We applied different methods to each type to improve the accuracy. In the pre-processing, it obtained binarized images to find blister. The information such as area, boundary, length, and position of blister has extracted from the binarized images by using chain code algorithm. For an illumination, the bright field illumination as back-light was applied. We tested the automatic measurement system, which we developed by using vision system, It successes 100% for detecting the blister at all glasses, and the error accuracy of information is about +/-10%.

• Periodical: Materials Science Forum (Volume 658)
• Pages: 129-132
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.658.129
• Online since: July 2010
• Authors: Chang Ho Han, Young Kee Ryu, Choon Suk Oh, Byoung Wook Choi
• Keywords: Blister, CCD Camera, Chain-Code, Image Processing, Inspection, Machine Vision

References

[1] Sang Pil Youn, Young Kee Ryu, Development of a non-contact optical sensor for measuring the shape and thickness of the transparent objects, Optomechatronic System, SPIE, Vol 4190, p.20~28, November, (2000).

[2] Ji-hua Zhang, Liong Cai, An Autofocusing Measurement System with a Piezoelectric Translator, IEEE/ASME TRANSACTION ON MECHATRONIC, 2, pp.213-316, (1997).

DOI: 10.1109/3516.622974

[3] Y.K. Ryu and H.S. Cho, New Optical Sensing System for Obtaining 3D shape of Specular Objects, Optical Engineering, Vol 35, No5, pp.1483-1495, (1966).

DOI: 10.1117/1.600685

[4] R.C. Gonzalez, R.E. Woods, Digital Image Processing, 2nd ed., Prentice Hall, (2002).

[5] Jee Hong Kim, A Detection Method of Non-uniform Brightness Defects in LCD Based on Human Vision, Journal of IEEK vol. 41, SP-3, pp.9-16, (2004).

[6] Matrox Electronic System Ltd., Matrox Imaging Library, Manual No. 10513-MN-0600, February, (1999).

[7] C. Oh, Y. Ryu, and B. Roh, Video Tape Recorder Head inspection using Image Processing Techniques, Optical Engineering, vol. 38, no. 1 pp.124-130, Jan., (1999).

DOI: 10.1117/1.602067

[8] P.J. Rousseeuw and A. M. Leroy, Robust Regression and Outlier Detection, New York: John Wiley & Sons, (1987).

DOI: 10.1002/0471725382

[9] Y. Ryu, C. Oh and J. Lim, Development of a non-contact optical sensor for a measuring the shape of a surface and thickness of transparent objects, Optical Engineering, vol. 40, no. 4, pp.500-502, Apr., (2001).

DOI: 10.1117/1.1355260
