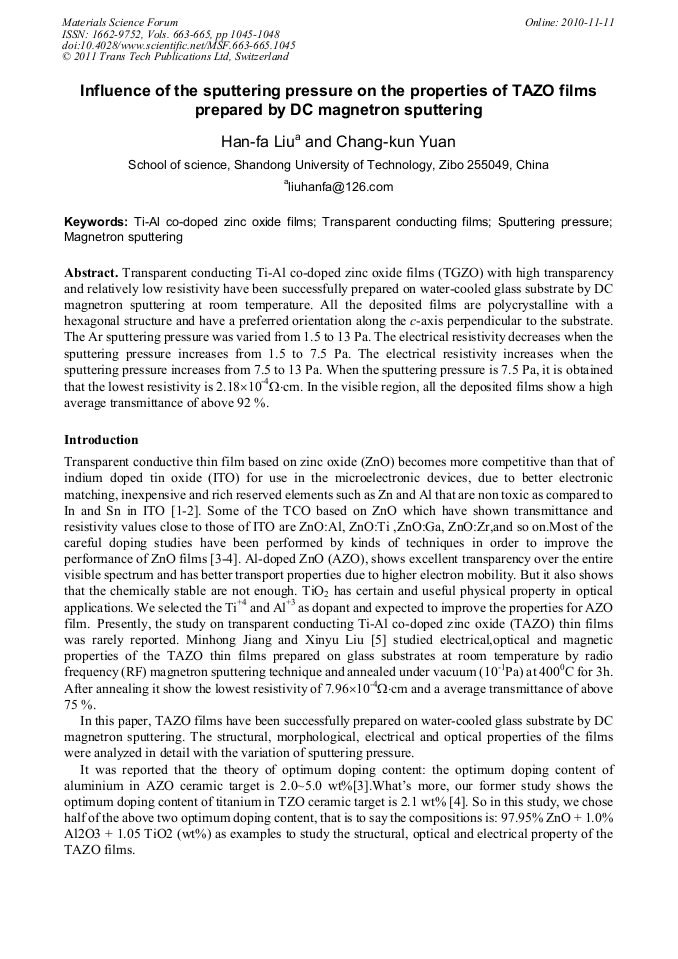

Influence of the Sputtering Pressure on the Properties of TAZO Films Prepared by DC Magnetron Sputtering

Abstract:

Transparent conducting Ti-Al co-doped zinc oxide films (TGZO) with high transparency and relatively low resistivity have been successfully prepared on water-cooled glass substrate by DC magnetron sputtering at room temperature. All the deposited films are polycrystalline with a hexagonal structure and have a preferred orientation along the c-axis perpendicular to the substrate. The Ar sputtering pressure was varied from 1.5 to 13 Pa. The electrical resistivity decreases when the sputtering pressure increases from 1.5 to 7.5 Pa. The electrical resistivity increases when the sputtering pressure increases from 7.5 to 13 Pa. When the sputtering pressure is 7.5 Pa, it is obtained that the lowest resistivity is 2.18×10-4Ω⋅cm. In the visible region, all the deposited films show a high average transmittance of above 92 %.

• Periodical: Materials Science Forum (Volumes 663-665)
• Pages: 1045-1048
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.663-665.1045
• Online since: November 2010
• Authors: Han Fa Liu, Chang Kun Yuan
• Keywords: Magnetron Sputtering, Sputtering Pressure, Ti-Al Co-Doped Zinc Oxide Film, Transparent Conducting Films

References

[1] H. F. Liu, H. F. Zhang, C. X. Lei and C. K. Yuan: J. Semicond. Vol. 30 (2009), p.02300.

[2] W. Lin, R.X. Ma and W. Shao: App. Surf. Sci. Vol. 253 (2007), p.5179.

[3] X. T. Hao, J. Ma and H. L. Ma: Chinese Journal of Liquid Crystals and Displays Vol. 17 (2002), p.169.

[4] H. F. Liu, H. F. Zhang, Y. Z. Yuan and C. K. Yuan: Semiconductor Technology Vol. 34 (2009), p.1092.

[5] M. H. Jiang and X. Y. Liu: App. Surf. Sci. Vol. 255 (2008), p.3175.
