Surfacial Metallization of Carbon Fibers by Copper Coating and Field Emission Properties

Lan Yang; Yun Ye; Tai Liang Guo; Xiao Jin Huang

doi:10.4028/www.scientific.net/MSF.663-665.183

Paper Titles

Preparation of YVO₄:Eu³⁺,Ln (Ln = Bi³⁺, La³⁺, Li⁺) Red Phosphors by Combustion Synthesis and their Luminescence Properties
p.162

Effect of Sputtering Pressure on the Formation of Semiconducting Mg₂Si Films
p.166

Synthesis and Luminescent Properties of Violet-Ultraviolet Long Afterglow Phosphors
p.170

Influence of Flux on Morphological and Luminescent Properties of Y₃Al₅O₁₂:Tb³⁺ Phosphor
p.177

Surfacial Metallization of Carbon Fibers by Copper Coating and Field Emission Properties
p.183

Photocatalytic Performance of Polyoxometallate Intercalated Layered Double Hydroxide
p.187

Transmission Spectra of Quantum-Well Structured Photonic Crystals with Positive- or Negative- Refractive Index Materials
p.191

Electronic and Optical Properties of the Zn and Mg Doped AlN
p.195

Kinetic Monte Carlo Simulation of the Flux Dependence of Semiconductor Quantum Dot Growth
p.199

HomeMaterials Science ForumMaterials Science Forum Vols. 663-665Surfacial Metallization of Carbon Fibers by Copper...

Surfacial Metallization of Carbon Fibers by Copper Coating and Field Emission Properties

Abstract:

Carbon fibers (CNFs) were surfacial metallized by electroless deposited with copper, and their field emission properties were investigated by diode test. The results indicated that the field emission properties of CNFs were affected by the thicknesses of copper. After CNFs were surfacial metallized, the volume resistivity of CNFs was decreased and field emission property was increased, respectively; increase the thin-film thickness, there appeared an optimal film thickness value for properties of field electron emission. It was found that CNFs owned the best field emission properties after electroless depositing for 15 min, with copper metal thickness as 2.1 µm and the volume resistivity down to 2.3510-4 Ω•cm. The field emission tests showed when applied voltage was 562 V, CNFs appeared bright dots, and the high luminance achieved 1388 cd/m2 under applied voltage 1013 V. Further more theoretical analyses, copper coating on CNFs surface is attributed to good electric conductivity, the low work function and the lower attenuation of electron scattering in thin-film.

You might also be interested in these eBooks

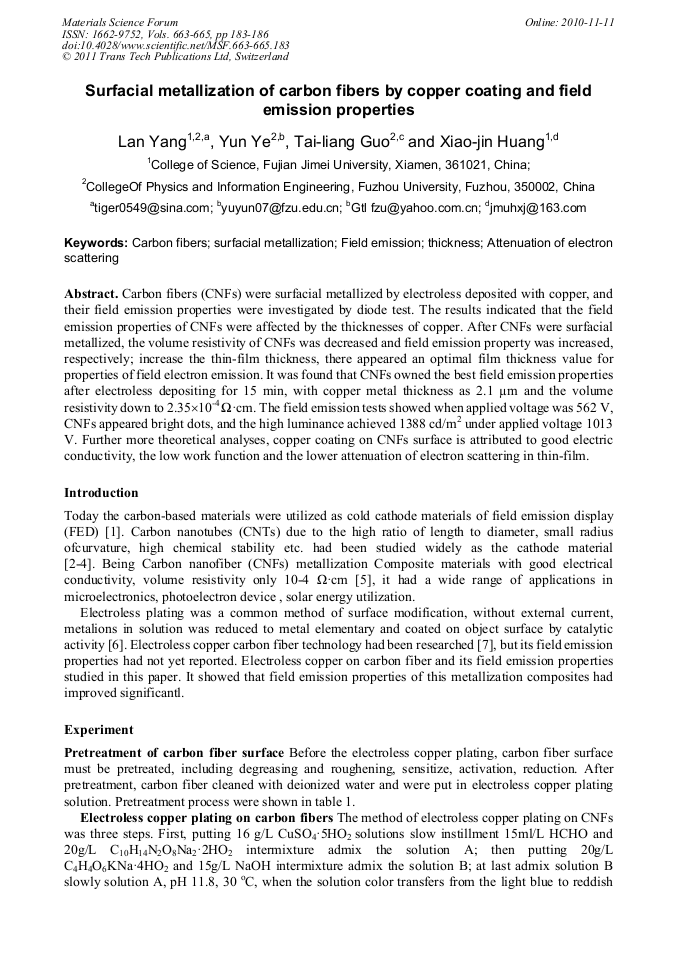

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 663-665)

Pages:

183-186

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.663-665.183

Citation:

Cite this paper

Online since:

November 2010

Authors:

Lan Yang, Yun Ye, Tai Liang Guo, Xiao Jin Huang

Keywords:

Attenuation of Electron Scattering, Carbon Fiber (CF), Field Emission, Surfacial Metallization, Thickness

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Q. Wang, J. Wang and Y. Di: Diamond and Related Materials Vol. 17 (2008), p.217.

Google Scholar

[2] J.P. Soo, S.J. Yu and Y.R. Kyong: J. Colloid and Interface Science Vol. 245(2002), p.385.

Google Scholar

[3] F.Z. Kong, X.B. Zhang and W.Q. Xiong: Surface and Coatings Technology Vol. 155 (2002), p.33.

Google Scholar

[4] Y.C. Fan, Y.M. Liu and Y. Chen: Applied Surface Science Vol. 255 (2009), p.7753.

Google Scholar

[5] K. Chiharu, Y. Yutaka, A. Hidemitsu and S. Takashi: Diamond & Related Materials Vol. 16 (2007), p.1383.

Google Scholar

[6] E.P. Sheshin, A.S. Baturin and K.N. Nikolskiy: Applied Surface Science Vol. 251 (2005), p.196.

Google Scholar

[7] H.B. Jeong, S.Y. Hee and Y.Y. Ki: Surface & Coatings Technology Vol. 202 (2008), p.3571.

Google Scholar

[8] S. S. Tzeng: Carbon Vol. 44 (2006), p. (1986).

Google Scholar
