Preparation and Characterization of Conductive Polyaniline/Cerium Dioxide Composites

Hui Huang; Zhong Cheng Guo

doi:10.4028/www.scientific.net/MSF.663-665.686

Paper Titles

Test Scheduling Method Based on Cellular Genetic Algorithm for System on Chip
p.670

Relationship between Dopant 5-Sulfosalicylic Acid and Conductivity of Ammonium Persulfate Oxidized Polypyrrole
p.674

Ionic Conductivity Measurements of LaF₃ Polycrystalline Powders
p.678

Effects of Dopant 5-Sulfosalicylic Acid on Conductivity of Ferric Chloride Oxidized Polypyrrole
p.682

Preparation and Characterization of Conductive Polyaniline/Cerium Dioxide Composites
p.686

CdS-Intercalated Bentonite/Carbon Composite as Electrode for Sulfide Ion
p.690

Transparent Conductive Electrode of Fluorine Doped Tin Oxide Prepared by Inkjet Printing Technique
p.694

Microwave Dielectric Properties of Ca[(Li_1/3Nb_2/3)_0.95Zr_0.15]O_3+δ Ceramics with Sm³⁺ Substitution at A-Site
p.698

Optimized Conductivity of Anthraquinone-2-Sulfonic Acid Sodium, 5-Sulfosalicylic Acid and Toluene-4-Sulfonic Acid Co-Doped Polypyrrole
p.702

HomeMaterials Science ForumMaterials Science Forum Vols. 663-665Preparation and Characterization of Conductive...

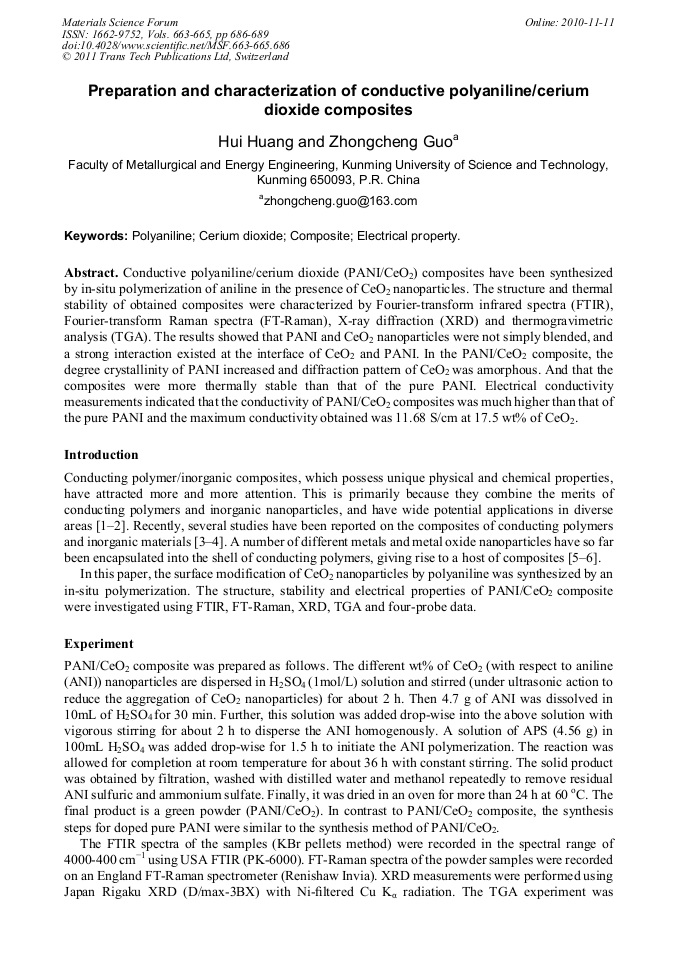

Preparation and Characterization of Conductive Polyaniline/Cerium Dioxide Composites

Abstract:

Conductive polyaniline/cerium dioxide (PANI/CeO2) composites have been synthesized by in-situ polymerization of aniline in the presence of CeO2 nanoparticles. The structure and thermal stability of obtained composites were characterized by Fourier-transform infrared spectra (FTIR), Fourier-transform Raman spectra (FT-Raman), X-ray diffraction (XRD) and thermogravimetric analysis (TGA). The results showed that PANI and CeO2 nanoparticles were not simply blended, and a strong interaction existed at the interface of CeO2 and PANI. In the PANI/CeO2 composite, the degree crystallinity of PANI increased and diffraction pattern of CeO2 was amorphous. And that the composites were more thermally stable than that of the pure PANI. Electrical conductivity measurements indicated that the conductivity of PANI/CeO2 composites was much higher than that of the pure PANI and the maximum conductivity obtained was 11.68 S/cm at 17.5 wt% of CeO2.
