In Situ High Resolution Transmission Electron Microscopy Studies of High Temperature Behavior of Surface Al2O3 Thin Layer on an AlN Particle

Hiroshi Fukushima; Masanobu Azuma; Yukihiro Kanechika

doi:10.4028/www.scientific.net/MSF.675-677.123

Paper Titles

Transition-Metal Impurities Removal from Metallurgical Grade Silicon by Electron Beam Injection
p.105

Resistivity Distribution Characteristics of Metallurgical Silicon Ingot after Directional Solidification
p.109

Effect of Heating Treatment on the Resistivity of Polycrystalline Silicon
p.113

Preparation of SiC_w/Al₂O₃ Composite Sheets through Gel-Tape-Casting Process
p.119

In Situ High Resolution Transmission Electron Microscopy Studies of High Temperature Behavior of Surface Al₂O₃ Thin Layer on an AlN Particle
p.123

Rapid Synthesis of Molybdenum Disilicide by High-Energy Ball Milling
p.127

Effects of CaB₂O₄ Content on the Sintering Behavior of Hexagonal Boron Nitride
p.131

Pozzolanic Activity of Ceramic Polishing Powder as Cementitious Material
p.135

Silicon Carbide Base Ceramic Fiber Synthesis from Polycarbosilane-Modified Polymethylsilane Blend Polymers by Melt Spinning
p.139

HomeMaterials Science ForumMaterials Science Forum Vols. 675-677In Situ High Resolution Transmission Electron...

In Situ High Resolution Transmission Electron Microscopy Studies of High Temperature Behavior of Surface Al₂O₃ Thin Layer on an AlN Particle

Abstract:

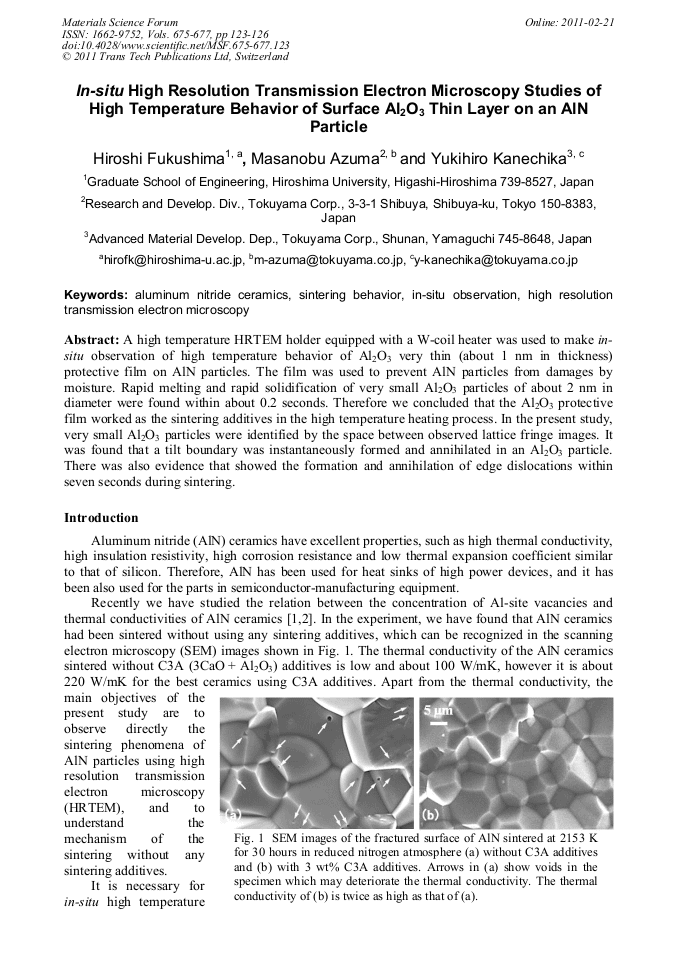

A high temperature HRTEM holder equipped with a W-coil heater was used to make insitu observation of high temperature behavior of Al2O3 very thin (about 1 nm in thickness) protective film on AlN particles. The film was used to prevent AlN particles from damages by moisture. Rapid melting and rapid solidification of very small Al2O3 particles of about 2 nm in diameter were found within about 0.2 seconds. Therefore we concluded that the Al2O3 protective film worked as the sintering additives in the high temperature heating process. In the present study, very small Al2O3 particles were identified by the space between observed lattice fringe images. It was found that a tilt boundary was instantaneously formed and annihilated in an Al2O3 particle. There was also evidence that showed the formation and annihilation of edge dislocations within seven seconds during sintering.

You might also be interested in these eBooks

Advanced Material Science and Technology

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 675-677)

Pages:

123-126

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.675-677.123

Citation:

Cite this paper

Online since:

February 2011

Authors:

Hiroshi Fukushima, Masanobu Azuma, Yukihiro Kanechika

Keywords:

Aluminum Nitride (AlN) Ceramic, High Resolution Transmission Electron Microscopy, In Situ Observation, Sintering Behaviour

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] H. Fukushima, X. Zhefeng, I. Kuchiwaki, Y. Kanechika, H. Oda, M. Azuma, Y. Tanita, K. Sugio and O. Yanagisawa: Proc. 17th IKETANI Conference, (2007), p.152.

Google Scholar

[2] Y. Kanechika, M. Azuma and H. Fukushima: Chinese Sci. Bull. Vol. 54 (2009), p.842.

Google Scholar

[3] H. Fukushima, I. Kuchiwaki and T. Hirabayashi: Mater. Sci. Forum Vol. 475-479 (2005), p.3875.

Google Scholar

[4] H. Fukushima, I. Kuchiwaki and T. Hirabayashi: Proc. 31st IEEE Photovoltaic Specialist Conference, ISBN 0-7803-8708-2 (2005), p.1245.

Google Scholar

[5] T. Kamino, T. Yamaguchi and H. Saka: J. Electron Microsc. Vol. 43 (1994), p.104.

Google Scholar

[6] American Mineralogist Crystal Structure Database: http: /rruff. geo. arizona. edu/AMS/amcsd. php.

Google Scholar

[7] Y. Kameshima, S. Kuramochi, A. Yasumori and K. Okada: J. Ceramic Soc. Japan, Vol. 106 (1998), p.749.

Google Scholar
