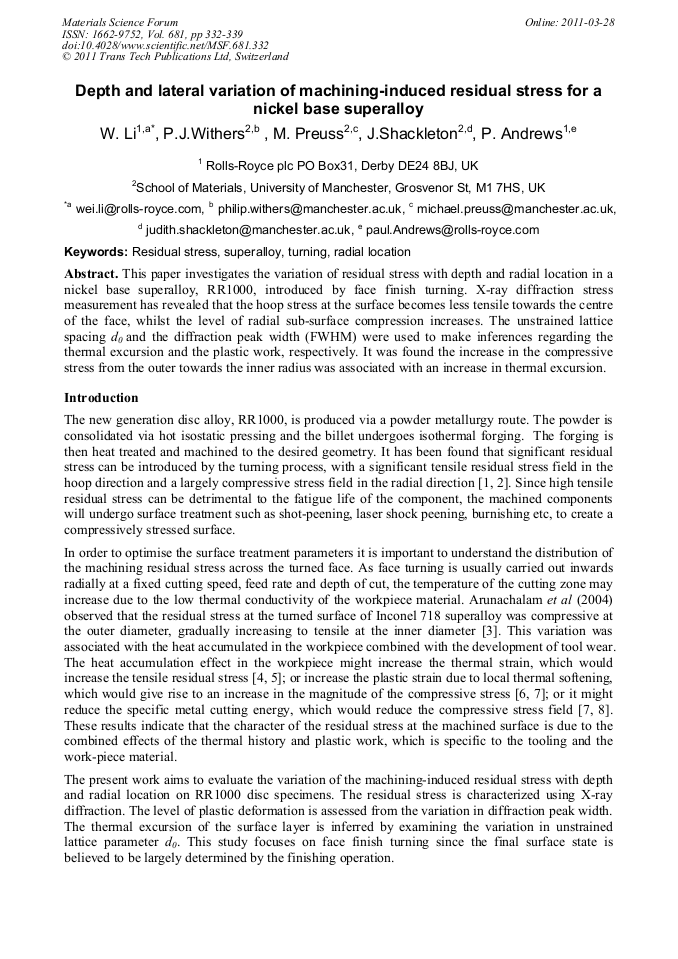

Depth and Lateral Variation of Machining-Induced Residual Stress for a Nickel Base Superalloy

Abstract:

This paper investigates the variation of residual stress with depth and radial location in a nickel base superalloy, RR1000, introduced by face finish turning. X-ray diffraction stress measurement has revealed that the hoop stress at the surface becomes less tensile towards the centre of the face, whilst the level of radial sub-surface compression increases. The unstrained lattice spacing d₀ and the diffraction peak width (FWHM) were used to make inferences regarding the thermal excursion and the plastic work, respectively. It was found the increase in the compressive stress from the outer towards the inner radius was associated with an increase in thermal excursion.

• Periodical: Materials Science Forum (Volume 681)
• Pages: 332-339
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.681.332
• Online since: March 2011
• Authors: Wei Li, Philip J. Withers, Michael Preuss, Judith Shackleton, Paul Andrews
• Keywords: Radial Location, Superalloy, Turning

References

[1] W. Li, M. Preuss, P. J. Withers, D. Axinte, P. Andrews, Characterisaton of residual stresses in machined surfaces of a high strength nickel-base superalloy Materials Science Forum 524-525 (2006) 587-592.

DOI: 10.4028/www.scientific.net/msf.524-525.587

[2] W. Li, Residual stresses in face finish turning of high strength nickel-based superalloy Journal of Materials Processing Technology 209 (2009) 4896-4902.

DOI: 10.1016/j.jmatprotec.2009.01.012

[3] R. M. Arunachalam, M. A. Mannan, A. C. Spowage, Surface integrity when machining age hardened Inconel 718 with coated carbide cutting tools International Journal of Machine Tools & Manufacture 44 (2004) 1481-1491.

DOI: 10.1016/j.ijmachtools.2004.05.005

[4] T. I. El-Wardany, H. A. Kishawy, M. A. Elbestawi, Surface integrity of die material in high speed machining. Part 2: microhardness variations and residual stress Journal of Manufactureing Science and Engineering 122 (2000) 632-641.

DOI: 10.1115/1.1286557

[5] K. Jacobus, R. E. Devor, S. G. Kapoor, Machining-Induced Residual Stress|; Experimentation and Modeling Transaction of the ASME 122 (2000) 20.

DOI: 10.1115/1.538906

[6] C. R. Liu, M. M. Barash, The mechanical state of the sublayer of a surface generated by chip-removal process. Part 2: cutting with a tool with flank wear Transactions of the ASME (1976) 1202-1208.

DOI: 10.1115/1.3439085

[7] J. C. Outeiro, A. M. Dias, Influence of work material properties on residual stresses and work hardening induced by machining, The 7th European Conference on Residual Stresses, Berlin, 2006. 524-525.

DOI: 10.4028/www.scientific.net/msf.524-525.575

[8] G. Germain, F. Morel, J. -L. Lebrun, A. Morel, B. Hu, Effect of laser assistance machining on residual stress and fatigue strength for a bearing steel (100Cr6) and a titanium alloy (Ti 6Al4V), The 7th European Conference on Residual Stresses, Berlin, 2006. 569-574.

[9] N. Ordas, M. L. Penalva, J. Fernandez, C. Garcia-Rosales, Residual stresses in tool steel due to hard-turning Journal of Applied Crystallography 36 (2003) 1135-1143.

DOI: 10.1107/s0021889803012755

[10] A. R. C. Sharman, J. I. Hughes, K. Ridgeway, An analysis of the residual stresses generated in Inconel 718 when turning Journal of Materials Processing Technology 173 (2006) 359-367.

DOI: 10.1016/j.jmatprotec.2005.12.007

[11] M. Preuss, J. W. L. Pang, P. J. Withers, G. J. Baxter, Inertia Welding Nickel-Based Superalloy Part II. Residual Stress Characterization Metallurgical and Materials Transactions 33A (2002) 3227-3234.

DOI: 10.1007/s11661-002-0308-x

[12] D. A. Axinte, P. Andrews, W. Li, N. Gindy, P. J. Withers, Turning of advanced Ni based alloys obtained via powder metallurgy route, CIRP 56, vol 1, Kobe, (2006).

DOI: 10.1016/s0007-8506(07)60379-5
