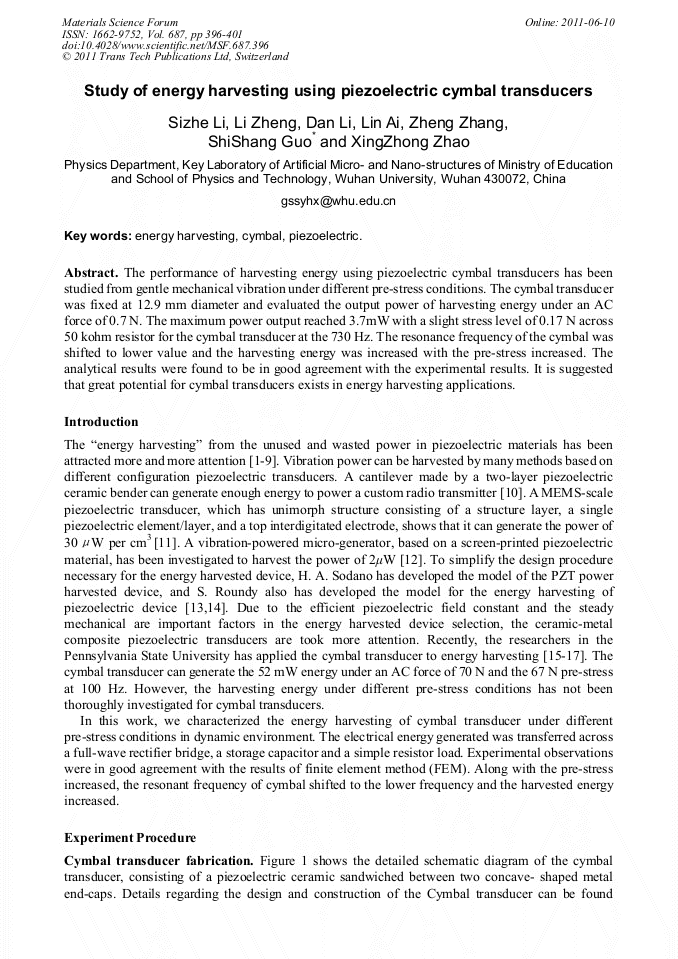

Study of Energy Harvesting Using Piezoelectric Cymbal Transducers

Abstract:

The performance of harvesting energy using piezoelectric cymbal transducers has been studied from gentle mechanical vibration under different pre-stress conditions. The cymbal transducer was fixed at 12.9 mm diameter and evaluated the output power of harvesting energy under an AC force of 0.7 N. The maximum power output reached 3.7mW with a slight stress level of 0.17 N across 50 kohm resistor for the cymbal transducer at the 730 Hz. The resonance frequency of the cymbal was shifted to lower value and the harvesting energy was increased with the pre-stress increased. The analytical results were found to be in good agreement with the experimental results. It is suggested that great potential for cymbal transducers exists in energy harvesting applications.

• Periodical: Materials Science Forum (Volume 687)
• Pages: 396-401
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.687.396
• Online since: June 2011
• Authors: Si Zhe Li, Li Zheng, Dan Li, Lin Ai, Zheng Zhang, Shi Shang Guo, Xing Zhong Zhao
• Keywords: Cymbal, Energy Harvesting, Piezoelectric

References

[1] G.A. Lesieutre, G.K. Ottman, and H.F. Hofmann, J. Sound Vib. 269, 991 (2004).

[2] H.S. Yoon, G. Washington, and A. Danak, J. Intel. Mat. Syst. Str. 16, 877 (2005).

[3] T.H. Ng, and W.H. Liao, J. Intel. Mat. Syst. Str.  16, 785 (2005).

[4] Y.C. Shu, and I.C. Lien, Smart. Mater. Struct. 15, 1499 (2006).

[5] Y.C. Shu, and I.C. Lien, J. Micromech. Microeng. 16, 2429 (2006).

[6] Z. Wang, and Y. Xu, Appl. Phys. Lett. 90, 263512 (2007).

[7] M.S. Majdoub, P. Sharma, and T. Cagin, Phys. Rve. B 78, 121407 (2008).

[8] C.A. Howells, Energ. Convers. Manage. 50, 1847 (2009).

[9] F. Cottone, H. Vocca, and L. Gammaitoni, Phys. Rev. Lett. 102, 080601 (2009).

[10] S. Roundy and P. Kwright, Smart Mater. Struct. 13, 1131 (2004).

[11] N. E. duToit, B. L. Wardle, and S.G. Kim, Integr. Ferroelectr. 71, 121 (2005).

[12] N. M. White, P. Glynne-Jones, and S. P. Beeby, Smart Mater. Struct. 10, 850 (2001).

[13] H. A. Sodano, G. Park, and D. J. Inman, Strain 40, 49 (2004).

[14] S. Roundy, P. K. Wright, and J. Rabaey, Comput. Commun. 26, 1131 (2003).

[15] H.W. Kim, S. Priya, K. Uchino, and R.E. Newnham, J. Electroceram.  15, 27 (2005).

[16] H.W. Kim, S. Priya, K. Uchino, Jap. J. Appl. Phys. 45, 5836 (2006).

[17] H.W. Kim, A. Batra, S. Priya, K. Uchino, D. Markley, R.E. Newnham, and H.F. Hofmann, Jap. J. Appl. Phys. 43, 6178 (2004).

DOI: 10.1143/jjap.43.6178

[18] R.E. Newnham, A. Dogan, Q. C. Xu, K. Onitsuka, J. Tressler, and S. Yoshikawa, Ultrasonics Symposium, p.509 (1993).

DOI: 10.1109/ultsym.1993.339557

[19] P. Ochoa, M. Villegas, J. L. Pons, P. Leidinger, and J. F. Fernandez, J. Electroceram. 14, 221 (2005).

[20] C.L. Sun, S.S. Guo, W.P. Li, Z.B. Xing, G.C. Liu, X.Z. Zhao, Sensor Actuat A-Phys, 121, 213(2005).

[21] J. F. Tressler, A. Dogan, J. F. Fernandez, J. T. Fielding, K. Uchino, and R.E. Newnham, IEEE-UFFC Ultrason. Symp. Proc., Seattle, WA, 897 (1995).
