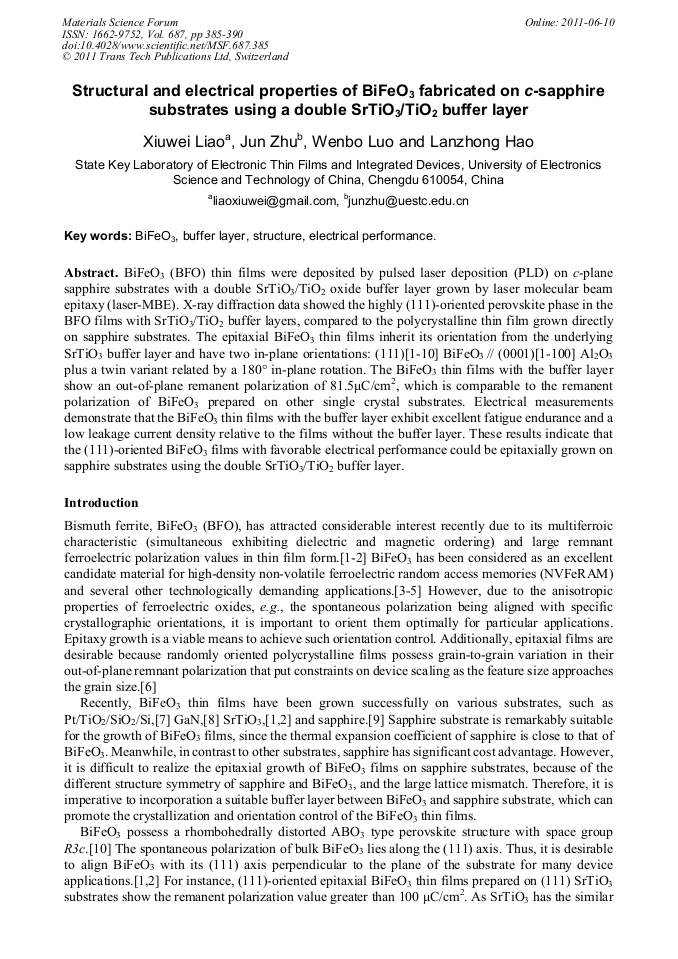

Structural and Electrical Properties of BiFeO₃ Fabricated on C-Sapphire Substrates Using a Double SrTiO₃/TiO₂ Buffer Layer

Abstract:

BiFeO₃ (BFO) thin films were deposited by pulsed laser deposition (PLD) on c-plane sapphire substrates with a double SrTiO₃/TiO₂ oxide buffer layer grown by laser molecular beam epitaxy (laser-MBE). X-ray diffraction data showed the highly (111)-oriented perovskite phase in the BFO films with SrTiO₃/TiO₂ buffer layers, compared to the polycrystalline thin film grown directly on sapphire substrates. The epitaxial BiFeO₃ thin films inherit its orientation from the underlying SrTiO₃ buffer layer and have two in-plane orientations: (111)[1-10] BiFeO₃ // (0001)[1-100] Al₂O₃ plus a twin variant related by a 180° in-plane rotation. The BiFeO₃ thin films with the buffer layer show an out-of-plane remanent polarization of 81.5μC/cm², which is comparable to the remanent polarization of BiFeO₃ prepared on other single crystal substrates. Electrical measurements demonstrate that the BiFeO₃ thin films with the buffer layer exhibit excellent fatigue endurance and a low leakage current density relative to the films without the buffer layer. These results indicate that the (111)-oriented BiFeO₃ films with favorable electrical performance could be epitaxially grown on sapphire substrates using the double SrTiO₃/TiO₂ buffer layer.

• Periodical: Materials Science Forum (Volume 687)
• Pages: 385-390
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.687.385
• Online since: June 2011
• Authors: Xiu Wei Liao, Jun Zhu, Wen Bo Luo, Lan Zhong Hao
• Keywords: BiFeO₃, Buffer Layer, Electrical Performance, Structure

References

[1] J. Wang, J. B. Neaton, H. Zheng, V. Nagarajan, S. B. Ogale, B. Liu, D. Viehland, V. Vaithyanathan, D. G. Schlom, U. V. Waghmare, N. A. Spaldin, K. M. Rabe, M. Wuttig, and R. Ramesh, Science 299, 1719 (2003).

DOI: 10.1126/science.1080615

[2] J. F. Li, J. L. Wang, M. Wuttig, R. Ramesh, N. G. Wang, B. Ruette, A. P. Pyatakov, A. K. Zvezdin, and D. Viehland, Appl. Phys. Lett. 84, 5261 (2004).

DOI: 10.1063/1.1764944

[3] Fujitsu Microelectronics America, Inc., Sunnyvale, CA, Press Release, 2 August 2006 (http: /www. fujitsu. com/ca/en/news/pr/fma_20060802. html).

[4] S. K. Singh, H. Ishiwara, and K. Maruyama, Appl. Phys. Lett. 88, 262908 (2006).

[5] S. E. Lofland, K. F. McDonald, C. J. Metting, E. Knoesel, M. Murakami, M. A. Aronova, S. Fujino, M. Wuttig, and I. Takeuchi, Phys. Rev. B 73, 092408 (2006).

DOI: 10.1103/physrevb.73.092408

[6] J. -Y. Hwang, J. -P. Kim, S. -Y. Jeong, S. -G. Yoon, and W. -J. Lee, Jpn. J. Appl. Phys., Part 2 43, L1425 (2004).

[7] Kwi Young Yun, Dan Ricinschi, Takeshi Kanashima, and Masanori Okuyama, Appl. Phys. Lett. 89, 192902 (2006).

DOI: 10.1063/1.2385859

[8] W. Tian, V. Vaithyanathan, D. G. Schlomb, Q. Zhan, S. Y. Yang, Y. H. Chu, and R. Ramesh, Appl. Phys. Lett. 90, 172908 (2007).

[9] S. K. Singh, H. Ishiwara, and K. Maruyama, J. Appl. Phys. 100, 064102 (2006).

[10] F. Kubel and H. Schmid, Acta Crystallogr., Sect. B: Struct. Sci. B46, 698 (1990).

[11] Y. P. Wang, L. Zhou, M. F. Zhang, X. Y. Chen, J. -M. Liu, and Z. G. Liu, Appl. Phys. Lett. 84, 1731 (2004).

[12] W. Tian, V. Vaithyanathan, D. G. Schlom, Q. Zhan, S. Y. Yang, Y. H. Chu, and R. Ramesh, Appl. Phys. Lett. 90, 172908 (2007).

DOI: 10.1063/1.2730580

[13] S. K. Singh, Y. K. Kim, H. Funakubo, and H. Ishiwara, Appl. Phys. Lett. 88, 102904 (2006).

[14] Jiagang Wu and John Wang, J. Appl. Phys. 106, 104111 (2009).
