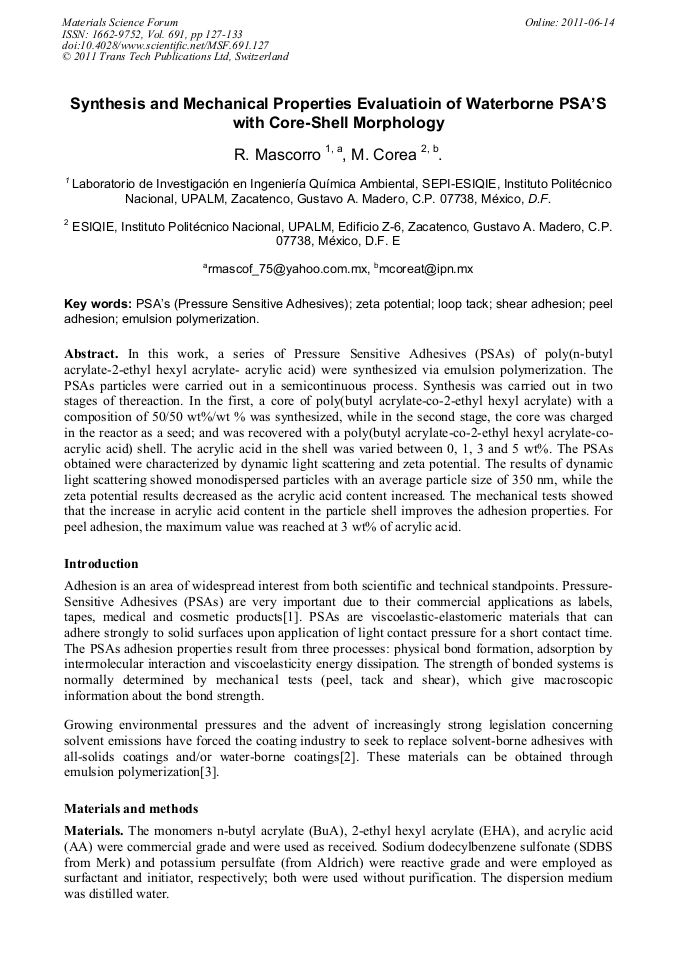

Synthesis and Mechanical Properties Evaluatioin of Waterborne PSA’S with Core-Shell Morphology

Abstract:

In this work, a series of Pressure Sensitive Adhesives (PSAs) of poly(n-butyl acrylate-2-ethyl hexyl acrylate- acrylic acid) were synthesized via emulsion polymerization. The PSAs particles were carried out in a semicontinuous process. Synthesis was carried out in two stages of thereaction. In the first, a core of poly(butyl acrylate-co-2-ethyl hexyl acrylate) with a composition of 50/50 wt%/wt % was synthesized, while in the second stage, the core was charged in the reactor as a seed; and was recovered with a poly(butyl acrylate-co-2-ethyl hexyl acrylate-co-acrylic acid) shell. The acrylic acid in the shell was varied between 0, 1, 3 and 5 wt%. The PSAs obtained were characterized by dynamic light scattering and zeta potential. The results of dynamic light scattering showed monodispersed particles with an average particle size of 350 nm, while the zeta potential results decreased as the acrylic acid content increased. The mechanical tests showed that the increase in acrylic acid content in the particle shell improves the adhesion properties. For peel adhesion, the maximum value was reached at 3 wt% of acrylic acid.

• Periodical: Materials Science Forum (Volume 691)
• Pages: 127-133
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.691.127
• Online since: June 2011
• Authors: R. Mascorro, M. Corea
• Keywords: Emulsion Polymerization, Loop Tack, Peel Adhesion, PSA, Shear Adhesion, Zeta-Potential

References

[1] Shull, K.R., et al., Axisymmetric adhesion tests of soft materials. Macromolecular Chemistry and Physics, 1998. 199(4): pp.489-511.

[2] Garrett, J., et al., Water-borne pressure-sensitive adhesives: effects of acrylic acid and particle structure. Macromolecular Symposia, 2000. 151(1): pp.487-496.

DOI: 10.1002/1521-3900(200002)151:1<487::aid-masy487>3.0.co;2-9

[3] Mallegol, J., et al., Origins and Effects of a Surfactant Excess near the Surface of Waterborne Acrylic Pressure-Sensitive Adhesives. Langmuir, 2002. 18(11): pp.4478-4487.

DOI: 10.1021/la0117698

[4] Amilton Martins dos Santos, Timothy F. McKenna, and Jean Guillot, Emulsion copolymerization of styrene and <I>n</I>-butyl acrylate in presence of acrylic and methacrylic acids: Effect of pH on kinetics and carboxyl group distribution. Journal of Applied Polymer Science, 1997. 65(12): pp.2343-2355.

DOI: 10.1002/(sici)1097-4628(19970919)65:12<2343::aid-app8>3.0.co;2-9

[5] E.A. Collins, Measurement of Particle Size and Particle Size Distribution in Emulsion Polymerization and Emulsion Polymers P.A. Lovel, M.S. El-Aasser, John Wiley & Sons, England, 1997, p.398.

[6] M. Salwinski, J. Meuldijk, A. M. van Herk, A. L. German, J. of Appl. Polym. Sci., 78, (2000), 875.

[7] Stephane Roberge and M.A. Dube, The effect of particle size and composition on the performance of styrene/butyl acrylate miniemulsion-based PSAs. Polymer, 2005. 47(2006): pp.799-807.

DOI: 10.1016/j.polymer.2005.12.024

[8] Andrew B. Foster, Peter A. Lovell, and M.A. Rabjohns, Control of adhesive properties through structured particle design of water-borne pressure-sensitive adhesives. Polymer, 2009. 50(7): pp.1654-1670.

DOI: 10.1016/j.polymer.2009.01.054

[9] S. S. Cutié, P. B. Smith, D. E. Henton, T. L. Staples, C. J. Powell, J. Polym. Sci. B: Polym. Phys., 35, (1997), (2029).

[10] S. N. Donlucas, L. C. Cesteros, J. E. Puig, I. Katime, Macromol. Chem. Phys., 202, (2001), 663.

[11] Hiemenz, P. C. and R. R, Principles of Colloid and Surface Chemistry, in Principles of Colloid and Surface Chemistry, M. Dekker, Editor. 1997. pp.1025-1032.

[12] A. Aymonier, et al., Control of structure and tack properties of acrylic pressure-sensitive adhesives designed by a polymerization process. Journal of Applied Polymer Science, 2003. 89(10): pp.2749-2756.

DOI: 10.1002/app.12416
