Surface Nanocrystallization of U70 Rail Steel Treated by Ultrasonic Impact

Abstract:

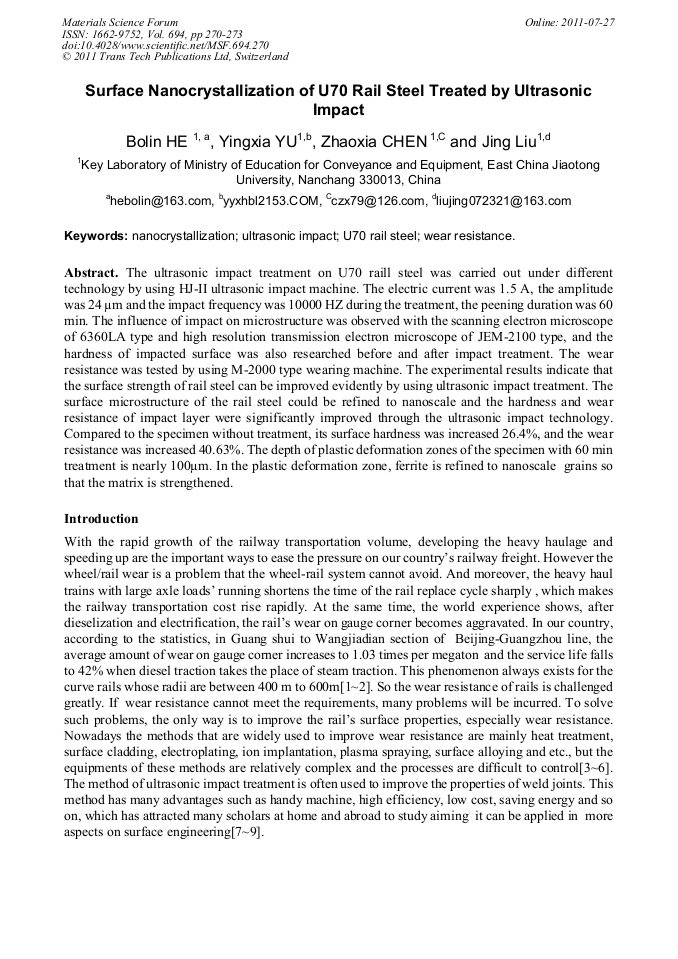

The ultrasonic impact treatment on U70 raill steel was carried out under different technology by using HJ-II ultrasonic impact machine. The electric current was 1.5 A, the amplitude was 24 µm and the impact frequency was 10000 HZ during the treatment, the peening duration was 60 min. The influence of impact on microstructure was observed with the scanning electron microscope of 6360LA type and high resolution transmission electron microscope of JEM-2100 type, and the hardness of impacted surface was also researched before and after impact treatment. The wear resistance was tested by using M-2000 type wearing machine. The experimental results indicate that the surface strength of rail steel can be improved evidently by using ultrasonic impact treatment. The surface microstructure of the rail steel could be refined to nanoscale and the hardness and wear resistance of impact layer were significantly improved through the ultrasonic impact technology. Compared to the specimen without treatment, its surface hardness was increased 26.4%, and the wear resistance was increased 40.63%. The depth of plastic deformation zones of the specimen with 60 min treatment is nearly 100µm. In the plastic deformation zone, ferrite is refined to nanoscale grains so that the matrix is strengthened.

• Periodical: Materials Science Forum (Volume 694)
• Pages: 270-273
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.694.270
• Online since: July 2011
• Authors: Bo Lin He, Ying Xia Yu, Zhao Xia Chen, Jing Liu
• Keywords: Nanocrystallisation, U70 Rail Steel, Ultrasonic Impact, Wear Resistance

References

[1] Jiqiu Gong: Wheel/Rail wear (China Railway Publications, China 1987). ( In Chinese).

[2] Jianhui Deng, Qiyue Liu, et a1: Iron Steel Vanadium Titanium Vol. 27(2006), p.48( In Chinese).

[3] Chongyan Leng, Xu Zhang, et a1: Rare Metal Materials and Engineering Vol. 37(2008), p.556.

[4] Gaohong Li, Lajun Feng, et a1: Transactions of the China Welding Institution Vol. 29(2008), p.51.

[5] Binfeng LU, Fenggui LU, et a1: Transactions of the China Welding Institution Vol. 29(2008), p.77.

[6] Ning Wu, Huaming Wang, et a1: Heat Treatment of Metals Vol. 34(2009), p.46.

[7] Dongpo Wang, Yin Danqing: Journal of Tianjin University Vol. 39(2006), p.757.

[8] Xiaoyu Liu: China Railway science Vol. 29 (2008), p.46 ( In Chinese).

[9] RAO Delin, CHEN Ligong: Transactions of the China Welding Institution Vol. 26(2005), p.48.

[10] Xu L J, Xing J D: Wear Vol. 262 (2006), p.253.

[11] Wei S Z, Zhu J H, Xu L J: Materials Science and Engineering A Vol. 404 (2005), p.138.
