Study on Photo-Catalytic Properties of Nano-TiO₂/Anthraquinone in a Sandwich-Type Bipolar Membrane

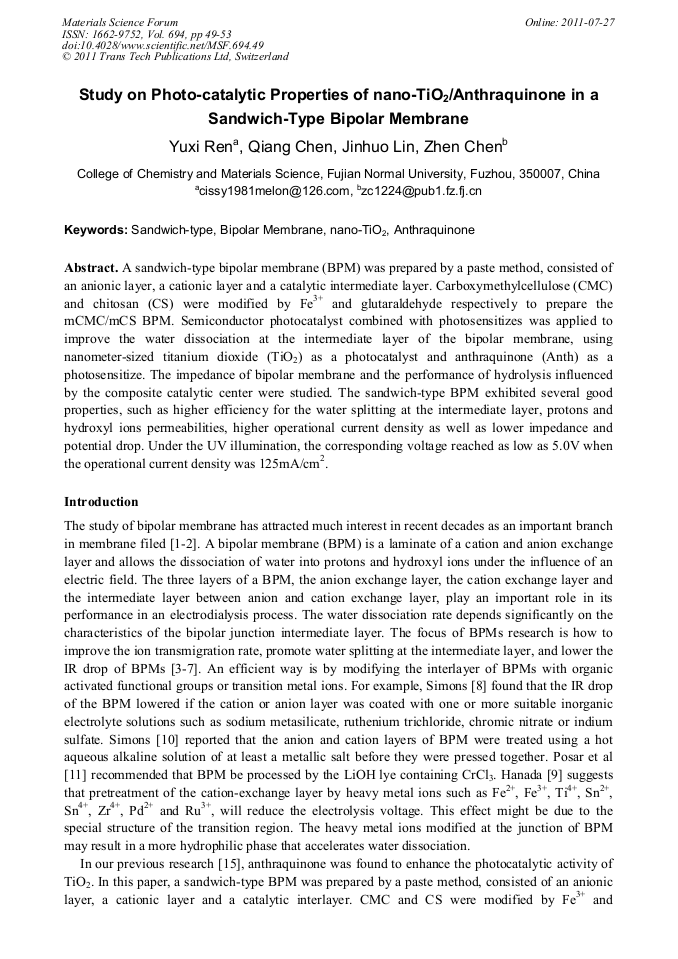

Article Preview

Abstract:

A sandwich-type bipolar membrane (BPM) was prepared by a paste method, consisted of an anionic layer, a cationic layer and a catalytic intermediate layer. Carboxymethylcellulose (CMC) and chitosan (CS) were modified by Fe3+ and glutaraldehyde respectively to prepare the mCMC/mCS BPM. Semiconductor photocatalyst combined with photosensitizes was applied to improve the water dissociation at the intermediate layer of the bipolar membrane, using nanometer-sized titanium dioxide (TiO2) as a photocatalyst and anthraquinone (Anth) as a photosensitize. The impedance of bipolar membrane and the performance of hydrolysis influenced by the composite catalytic center were studied. The sandwich-type BPM exhibited several good properties, such as higher efficiency for the water splitting at the intermediate layer, protons and hydroxyl ions permeabilities, higher operational current density as well as lower impedance and potential drop. Under the UV illumination, the corresponding voltage reached as low as 5.0V when the operational current density was 125mA/cm2.

You might also be interested in these eBooks

Frontier of Nanoscience and Technology

Info:

Periodical:

Materials Science Forum (Volume 694)

Pages:

49-53

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.694.49

Citation:

Cite this paper

Online since:

July 2011

Authors:

Yu Xi Ren, Qiang Chen, Jin Huo Lin, Zhen Chen

Keywords:

Anthraquinone, Bipolar Membrane, Nano-TiO₂, Sandwich-Type

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2011 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] S. Mafe, P. Ramirez, A. Alcaraz, V. M. Aguilella, Handbook of bipolar membrane technology, Enschede: Twente University Press, 2000, pp.49-78.

[2] B. Bauer, F. J. Gerner, H. Strathmann, Development of bipolar membranes, Desalination. 68 (1988) 279-292.

DOI: 10.1016/0011-9164(88)80061-4

[3] I. Honma, S. Hirakawa, K. Yamada, Synthesis of Organic/inorganic Nanocomposites Protonic Conducting Membrane Through Sol-gel Processes, Solid State Ionics. 118 (1999) 29-36.

DOI: 10.1016/s0167-2738(98)00450-0

[4] C. Cornelius, C. Hibshman, E. Marand, Hybrid organic-inorganic membranes, Sep. Purif. Technol. 25 (2001) 181-193.

DOI: 10.1016/s1383-5866(01)00102-2

[5] H. Strathmann, J. J. Krol, H. J. Rapp, Limiting current density and water dissociation in bipolar membranes. J. Membrane Sci. 125 (1997) 123-142.

DOI: 10.1016/s0376-7388(96)00185-8

[6] T. W. Xu, Ion exchange membranes: state of their development and perspective, J. Membrane Sci. 263 (2005) 1-29.

[7] C. Guizard, A. Bac, M. Barboiu, Hybridorganic-inorganic membranes with specific transport properties: applicationsin separation and sensors technologies, Sep. Purif. Technol. 25 (2001) 167-180.

DOI: 10.1016/s1383-5866(01)00101-0

[8] R. Simons, A novel method for preparing bipolar membranes, Electrochim. Acta. 31 (1986) 1175-1176.

[9] F. Hanada, K. Hirayama, N. Ohmura, S. Tanaka, U. S. Patent 5, 221, 455. (1993).

[10] R. Simons, A mechanism for water flow in bipolar membranes, J. Membrane Sci. 78 (1993) 13-23.

[11] F. Posar, M. Riccardi, U. S. Patent 5, 380, 413. (1995).

[12] Z. X. Huang, X. Zheng, R. Y. Chen, X. Chen, Z. Chen, Electro-generation of glyoxylic acid in pairs by modified sodium alginate/chitosan bipolar membrane. J. Chem. Eng. Chin. Univ. 22 (2008) 725-728.

[13] Y. H. Wang, X. L. Ma, R. Y. Chen, X. Zheng, Z. Chen, Electro-oxidized preparation of 3-methyl-2-formyl-amino pyridine by bipolar membrane, Acta. Phys. -Chim. Sin. 24 (2008) 1041-1046.

[14] A. Fujishima, T. N. Rao, D. A. Tryk, Titanium dioxide photocatalysis, Photoch. Photobio. Sci. 1 (2000) 1-7.

[15] Y. X. Ren, R. Y. Chen, X. Zheng, Z. Chen, Research of anthraquinone/TiO2 modified films for degradation of malachite green, Chemintimes. 19 (2005) 14-18.

[16] H. Y. Li, N. N. Zhang, Z. K. Luo, H. H. Cai, X. Q. Du, Y. C. Chen, M. L. Wang, Relationship between photo-catalysis and hydrophilicity of titania coating on glass, Rare Metal Mater. Eng. 37 (2008) 55-58.

[17] R. Q. Xu, T. W. Xu, W. H. Yang, Status and development of studies on the intermediate layer of a bipolar membrane, Membrane Sci. Technol. 22 (2002) 42-47.

[18] F. M. Meng, L. Xiao, Z. Q. Sun, The evolution of the research on photocatalytic properties of the TiO2 thin film. J. Anhui Univ. 33 (2009) 81-84.

[19] J. Guan, W. D. Liang, Progress in research on visible light response TiO2 photocatalyst, J. Wuhan Univ. Sci. Technol. 29 (2006) 164-167.

[20] S. X. Liu, C. L. Sun, Progress of photocatalyst TiO2 modification, J. Northeast Forestry Univ. 31 ( 2003) 53-56.
