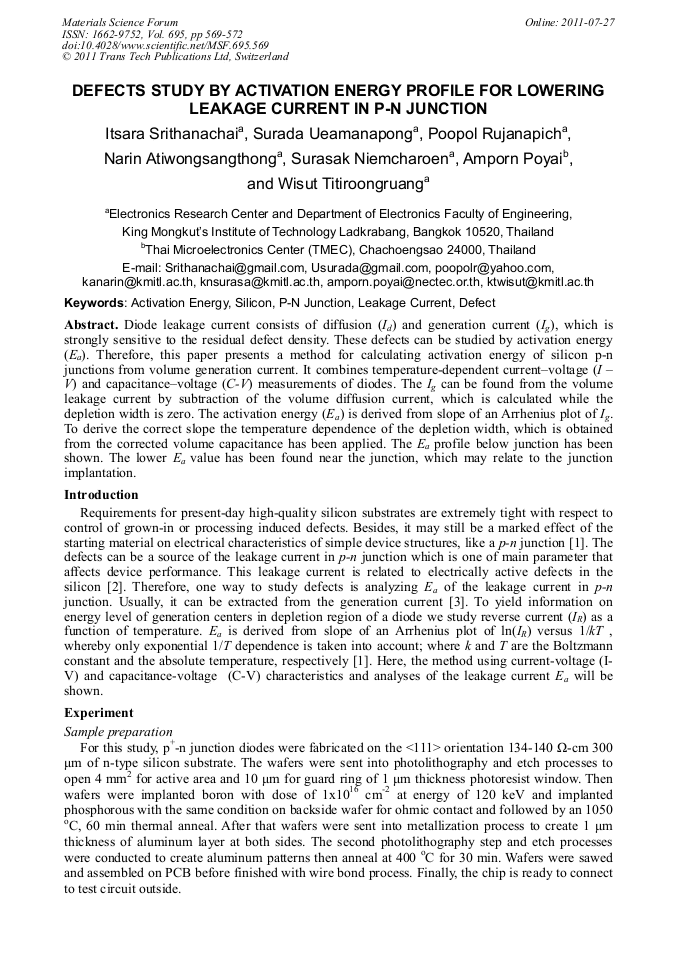

Defects Study by Activation Energy Profile for Lowering Leakage Current in P-N Junction

Abstract:

Diode leakage current consists of diffusion (I_d) and generation current (I_g), which is strongly sensitive to the residual defect density. These defects can be studied by activation energy (E_a). Therefore, this paper presents a method for calculating activation energy of silicon p-n junctions from volume generation current. It combines temperature-dependent current–voltage (I –V) and capacitance–voltage (C-V) measurements of diodes. The I_g can be found from the volume leakage current by subtraction of the volume diffusion current, which is calculated while the depletion width is zero. The activation energy (E_a) is derived from slope of an Arrhenius plot of I_g. To derive the correct slope the temperature dependence of the depletion width, which is obtained from the corrected volume capacitance has been applied. The E_a profile below junction has been shown. The lower E_a value has been found near the junction, which may relate to the junction implantation.

• Periodical: Materials Science Forum (Volume 695)
• Pages: 569-572
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.695.569
• Online since: July 2011
• Authors: Itsara Srithanachai, Surada Ueamanapong, Poopol Rujanapich, Narin Atiwongsangthong, Surasak Niemcharoen, Amporn Poyai, Wisut Titiroongruang
• Keywords: Activation Energy, Defect, Junction, Leakage Current, Silicon

References

[1] A. Poyai, E. Simoen, C. Claeys, A. Czerwinski, and E. Gaubas, Improved extraction of the activation energy of the leakage current in silicon p–n junction diodes, Appl. Phys. Lett., Vol. 78(14), pp.1997-1999, (2001).

DOI: 10.1063/1.1359487

[2] W. Pengchan, T. Phetchakul, and A. Poyai, Implantation-induced Defects Analysis Base on Activation Energy Diagnostics, Integrated Circuits, ISIC, p.518 – 52, 1 Issue 14-16 Dec (2009).

[3] A. Poyai, C. Claeys and E. Simoen, Improved extraction of carrier concentration and depletion width from capacitance-voltage characteristics of silicon n+-p-well junction diodes, Appl. Phys. Lett., Vol. 80(7), pp.1192-1194, (2002).

DOI: 10.1063/1.1435809

[4] S.M. Sze, Physics of Semiconductor Devices, John Wiley & Sons, New York, (1981).

[5] Gerold W. Neudeck, The pn junction diode, 2nd Modular series on solid state devices, Eds Gerold W. Neudeck and Robert F. Pierret, Addison-Wesley Publishing Company, (1989).

[6] A. Czerwinski, E. Simoen, A. Poyai, and C. Claeys, Activation energy analysis as a tool for extraction and investigation of p –n junction leakage current components, J. Appl. Phys., Vol. 94(2), pp.1218-1221, 200.

DOI: 10.1063/1.1582553
