Fabrication of LaNiO3 Thin Film on the Si-Substrate by Sol-Gel Process

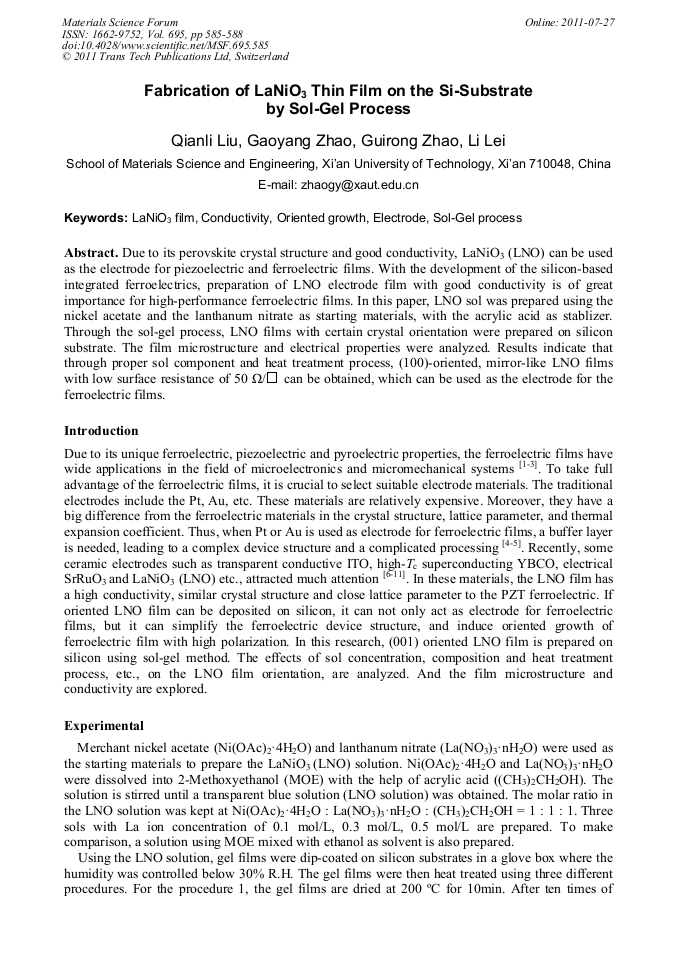

Article Preview

Abstract:

Due to its perovskite crystal structure and good conductivity, LaNiO3 (LNO) can be used as the electrode for piezoelectric and ferroelectric films. With the development of the silicon-based integrated ferroelectrics, preparation of LNO electrode film with good conductivity is of great importance for high-performance ferroelectric films. In this paper, LNO sol was prepared using the nickel acetate and the lanthanum nitrate as starting materials, with the acrylic acid as stablizer. Through the sol-gel process, LNO films with certain crystal orientation were prepared on silicon substrate. The film microstructure and electrical properties were analyzed. Results indicate that through proper sol component and heat treatment process, (100)-oriented, mirror-like LNO films with low surface resistance of 50 Ω/ can be obtained, which can be used as the electrode for the ferroelectric films.

You might also be interested in these eBooks
Eco-Materials Processing and Design XII View Preview

Info:

Periodical:

Materials Science Forum (Volume 695)

Pages:

585-588

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.695.585

Citation:

Cite this paper

Online since:

July 2011

Authors:

Qian Li Liu, Gao Yang Zhao, Gui Rong Zhao, Li Lei

Keywords:

Conductivity, Electrode, LaNiO3 Film, Oriented Growth, Sol-Gel Process

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2011 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] G. H. Haertling: J. Am. Ceram. Soc Vol. 82 (1999), p.797.

Google Scholar

[2] X. Zhu, Z. Liu: Physics Vol. 28 (1999), p.68.

Google Scholar

[3] W. Zhong: Physics Vol. 25 1996, p.193.

Google Scholar

[4] W. A. Geideman: IEEE Trans. Ultrason. Ferr Vol. 386 (1991), p.704.

Google Scholar

[5] R. Moazzami, C. M. Hu, W. H. Sherhard: IEEE Trans. Electron Dev Vol. 39 (1992), p. (2044).

Google Scholar

[6] N. W. Jang, S. B. Mah, D.S. Paik: Mater. Res. Bull Vol. 34 (1999), p.1463.

Google Scholar

[7] S. G. Ghonge, E. Goo, R. Ramesh, T. Sands, V. G. Keramidas: J. Am. Ceram. Soc Vol. 76 (1993), p.3141.

Google Scholar

[8] J. H. Kim, Y. Kim: J. Mater. Res Vol. 16 (2001), p.1739.

Google Scholar

[9] T. J. Zhu, L. Lu, X. B. Zhao Z. G. Ji and J. Ma: J. Cryst. Growth Vol. 291 (2006), p.385.

Google Scholar

[10] M. S. Chen, T.B. Wu, J.M. Wu: Appl. Phys. Lett Vol. 68 (1996), p.1430.

Google Scholar

[11] K. S. Hwang，B. Kang: J. Mater. Sci Vol. 18 (1999), p. (2013).
