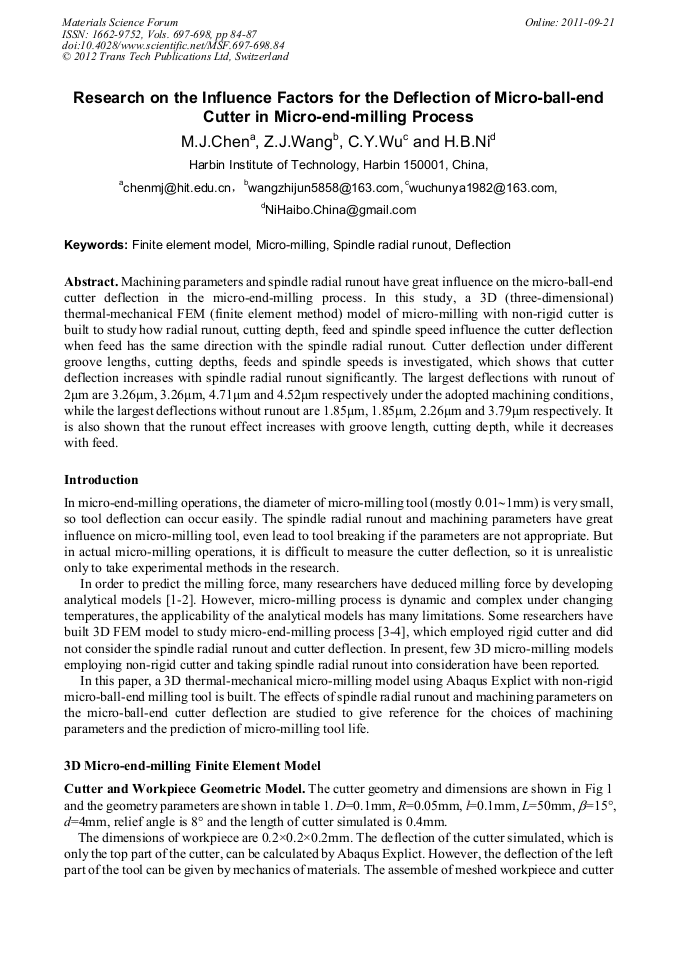

Research on the Influence Factors for the Deflection of Micro-Ball-End Cutter in Micro-End-Milling Process

Abstract:

Machining parameters and spindle radial runout have great influence on the micro-ball-end cutter deflection in the micro-end-milling process. In this study, a 3D (three-dimensional) thermal-mechanical FEM (finite element method) model of micro-milling with non-rigid cutter is built to study how radial runout, cutting depth, feed and spindle speed influence the cutter deflection when feed has the same direction with the spindle radial runout. Cutter deflection under different groove lengths, cutting depths, feeds and spindle speeds is investigated, which shows that cutter deflection increases with spindle radial runout significantly. The largest deflections with runout of 2μm are 3.26μm, 3.26μm, 4.71μm and 4.52μm respectively under the adopted machining conditions, while the largest deflections without runout are 1.85μm, 1.85μm, 2.26μm and 3.79μm respectively. It is also shown that the runout effect increases with groove length, cutting depth, while it decreases with feed.

You might also be interested in these eBooks

Advances in Materials Manufacturing Science and Technology XIV

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 697-698)

Pages:

84-87

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.697-698.84

Citation:

Cite this paper

Online since:

September 2011

Authors:

Ming Jun Chen, Zhi Jun Wang, Chun Ya Wu, Hai Bo Ni

Keywords:

Deflection, Finite Element Model (FEM), Micro-Milling, Spindle Radial Runout

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] M.T. Zaman, A.S. Kumar, M. Rahman, et al: International Journal of Machine Tools & Manufact- ure Vol. 46 (2006), p.353.

Google Scholar

[2] S.M. Wang, Z.S. Chiang, D.F. Chen, et al: Advanced Materials Research Vol. 83-86(2009), p.680.

Google Scholar

[3] S.L. Soo, D.K. Aspinwall and R. Cdewes: Journal of Materials Processing Technology Vol. 150 (2004), p.116.

Google Scholar

[4] O. Pantal, J.L. Bacaria, O. Dalverny, et al: Comput. Methods Appl. Mech. Engrg Vol. 193 (2004), p.4383.

Google Scholar

[5] Z.Q. Liu, J.H. Wu, Z.Y. Shi and P.F. Zhao: Tools Technol Vol. 42 (2008), p.3.

Google Scholar

[6] D.R. Lesuer: Experimental Investigations of Material Models for Ti-6Al-4V Titanium and 2024-T3 Aluminum. Tech. Rep. DOT/FAA/AR-00/25. US department of Transportation. Federal Aviation Administration, (2000).

Google Scholar
