Simulation and Control of Distortion of Hydro Turbine Blade Steel Casting in Heat Treatment Process

Abstract:

Blades are key part of hydro turbines, which often distorts during heat treatment process for their special structures. In this paper, thermal fluid finite element simulation of the forced air cooling process of a blade casting was carried out under a variety of distances between fans and blades, air speeds, groups of fans and circumstance temperatures. The temperature fields of blade castings were obtained. A novel parameter, temperature difference between surfaces of castings along thickness direction, was proposed to analyze the distortion of blade castings. The distortion behavior of blade castings with martensitic stainless steel were discussed, which is in good agreement with distortion regularity of the experimental ones. The temperature differences between blade casting surfaces are always greater than zero, resulting in distortion which could be divided into three stages. Finally, we focused on discussing the control methods of distortion behavior of blade castings which could be operated in actual production.

You might also be interested in these eBooks

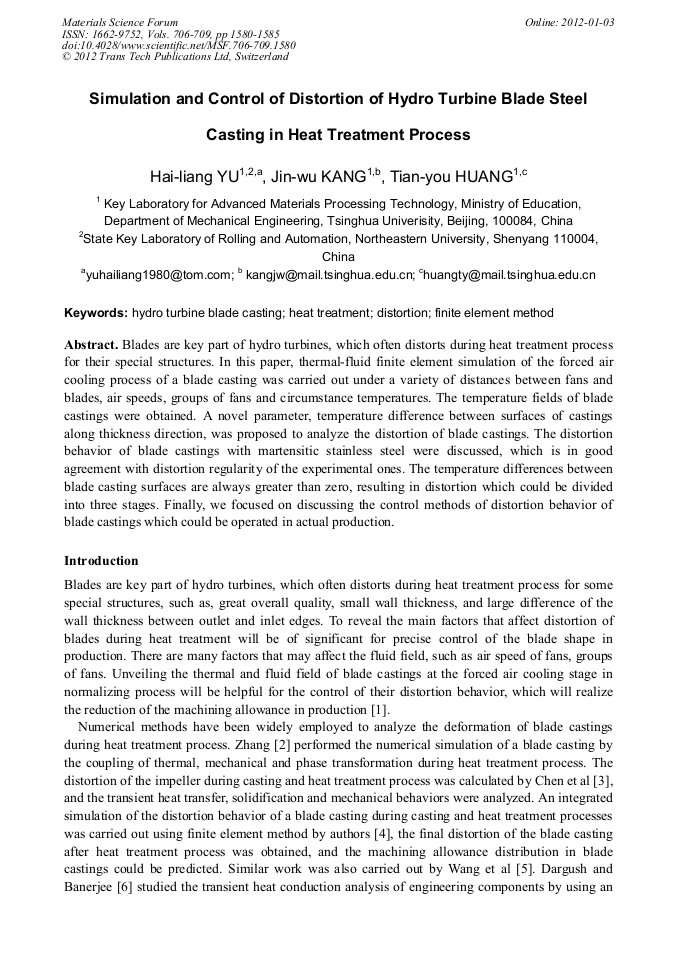

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 706-709)

Pages:

1580-1585

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.706-709.1580

Citation:

Cite this paper

Online since:

January 2012

Authors:

Hai Liang Yu, Jin Wu Kang, Tian You Huang

Keywords:

Distortion, Finite Element Method (FEM), Heat Treatment, Hydro Turbine Blade Casting

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] H.L. Yu, J.W. Kang and T.Y. Huang : Frontiers of Materials Science in China Vol. 4(4) (2010), p.332.

Google Scholar

[2] R. Zhang. Thesis of Master Degree, Tsinghua University, Beijing, (2009).

Google Scholar

[3] L.Q. Chen, Y. Ling, X.H. Kang, L.J. Xia and D.Z. Li : Journal of Materials and Science Technology Vol. 24(3)(2008), p.364.

Google Scholar

[4] H.L. Yu, J.W. Kang, S.X. Huang and T.Y. Huang : Advanced Materials Research Vol. 148-149(2011), p.103.

Google Scholar

[5] P. Wang, N. Xiao, D. Li and Y. Li : Materials Science Forum Vol. 654-656(2010), p.1565.

Google Scholar

[6] G.F. Darqush and P.K. Banerjee: International Journal for Numerical Methods in Engineering, Vol. 31(6)(1991), p.1231.

Google Scholar

[7] J.W. Kang, T.J. Wang, H.L. Yu and T.Y. Huang : Materials Science Forum, Vol. 654-656(2010), p.1335.

Google Scholar

[8] H. L. Yu, J. W. Kang and T. J. Wang. Journal of Materials Engineering and Performance. 2011, Doi: 10. 1007/s11665-010-9819-6.

Google Scholar
