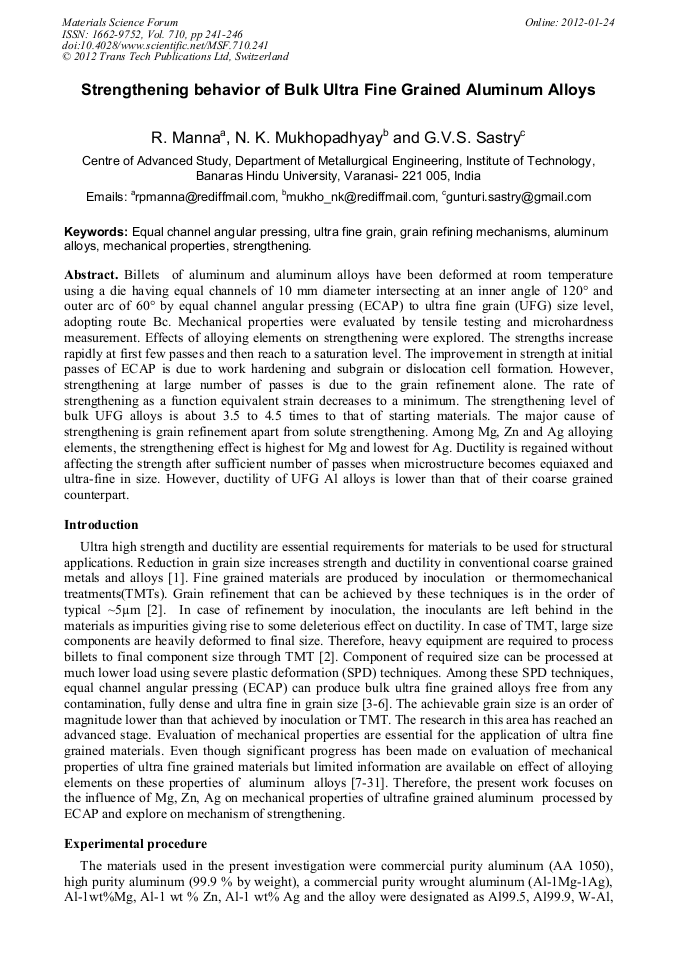

Strengthening Behavior of Bulk Ultra Fine Grained Aluminum Alloys

Abstract:

Billets of aluminum and aluminum alloys have been deformed at room temperature using a die having equal channels of 10 mm diameter intersecting at an inner angle of 120° and outer arc of 60° by equal channel angular pressing (ECAP) to ultra fine grain (UFG) size level, adopting route Bc. Mechanical properties were evaluated by tensile testing and microhardness measurement. Effects of alloying elements on strengthening were explored. The strengths increase rapidly at first few passes and then reach to a saturation level. The improvement in strength at initial passes of ECAP is due to work hardening and subgrain or dislocation cell formation. However, strengthening at large number of passes is due to the grain refinement alone. The rate of strengthening as a function equivalent strain decreases to a minimum. The strengthening level of bulk UFG alloys is about 3.5 to 4.5 times to that of starting materials. The major cause of strengthening is grain refinement apart from solute strengthening. Among Mg, Zn and Ag alloying elements, the strengthening effect is highest for Mg and lowest for Ag. Ductility is regained without affecting the strength after sufficient number of passes when microstructure becomes equiaxed and ultra-fine in size. However, ductility of UFG Al alloys is lower than that of their coarse grained counterpart.

• Periodical: Materials Science Forum (Volume 710)
• Pages: 241-246
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.710.241
• Online since: January 2012
• Authors: R. Manna, N.K. Mukhopadhyay, G.V.S. Sastry
• Keywords: Aluminium Alloy, Equal-Channel Angular Pressing (ECAP), Grain Refining Mechanisms, Strengthening, Ultra-Fine Grain (UFG)

References

[1] R. Song,  D. Ponge,  D. Raabe,  J.G. Speer, D.K. Matlock, Mater Sci Eng., A441(2006)1-17

[2] V. M. Segal, Mater Sci Eng., A386(2004)269-276

[3] R. Z. Valiev and T. G. Langdon, Prog. Mater. Sci., 51 (2006) 881-981

[4] R. Z. Valiev, R. K. Islamgaliev, I. V. Alexandrov, Prog. Mater. Sci., 45 (2000) 103-189

[5] M. Furukawa, Z. Horita, M. Nemoto, T. G. Langdon, J. Mater. Sci., 36 (2001) 2835-2843

[6] R. Manna, Ph. D. Thesis "Design and Characterization of Ultra Fine Grained Aluminum and Aluminum Alloys Processed by Equal Channel Angular Pressing", 2008, Banaras Hindu University, Varanasi, India.

[7] M. A. Meyers, A. Mishra, D. J. Benson, Prog. Mater., Sci. 51 (2006) 427-556

[8] C. C. Koch, Nanocryst. Mater., 18 (2003) 9-19

[9] C. C. Koch, Scripta Mater., 49 (2003) 657-662

[10] R. K. Islamgaliev, N. F. Yunusova, I. N. Savirov, A. V. Sergueeva, R. Z. Valiev, Mater. Sci. Eng., A 319-321 (2001) 877-881

[11] R. Z. Valiev, I. V. Alexandrov, T. C. Lowe, Y. T. Zhu, J. Mater. Res., 17 (2002) 5-8

[12] J. May, H. W. HöPPEL, M. Göken, Scripta Mater., 53 (2005) 189-194

[13] F. T. Dalla, R. Lapovok, J. Sandlin, P. F. Thomson, C. H. J. Davies, E. V. Pereloma , Acta Mater., 52 (2004) 4819-4832

DOI: 10.1016/j.actamat.2004.06.040

[14] N. Krasilnikov, W. Lojkowski, Z Pakiela, R. Z.Valiev, Mater. Sci. Eng., A 397 (2005) 330-337

[15] R. Z. Valiev, A. V. Sergueeva, A. K. Mukherjee, Scripta Mater., 49 (2003) 669-674

[16] Y. Wang, M. Chen, F. Zhou, E. Ma, Nature, 419 (2002) 912-914

[17] R. Z.Valiev, Mater. Sci. Eng, A 234-236 (1997) 59-66

[18] T. Mukai, M. Kawazoe, and K Higashi, Nanostructured Materials,10(1998)755-765

[19] Z. Horita, T. Fujinami, M. Nemoto,T. G. Langdon, Metall Mater Trans , 31A(2000)691-701

[20] M.V. Markushev, M. Yu. Murashkin, P.B. Prangnell, A.Gadolinia and O. A. Maiorova, Nanostructured Materials, 12(1999) 839-842

DOI: 10.1016/s0965-9773(99)00247-0

[21] Z. Horita, N. Fujinami, M. Nemoto, T. G. Langdon, J. Mater. Proc. Technol.,117(2001)288-292

[22] W.J. Kim, J.K. Kim, T.Y. Park, S.I. Hong, D.I. Kim, Y.S. Kim, and J.D. Lee, Metall. Mater. Trans , 33A(2002)3155-3164

[23] Z.C. Wang, P.B. Prangnell, Mater. Sci. Eng., A328 (2002) 87–97

[24] H. Conrad, Mater. Sci. Eng., A341 (2003) 216-228

[25] J. Gubicza, N.Q. Chinh, Z. Horita, T.G. Langdon, Mater. Sci. Eng., A 387–389 (2004) 55–59

[26] R. J. Asaro, S. Suresh, Acta Mater., 53 (2005) 3369–3382

[27] B. Huarte, C.J. Luis, I. Puertas, J. Le´on, R. Luri, J. Mater. Proces. Technol., 162–163 (2005) 317–326

[28] I. Gutierrez-Urrutia, M.A. Mu˜noz-Morris, D.G. Morris, Mater. Sci. Eng., A 394 (2005) 399–410

[29] E.A. El-Danaf, M.S. Soliman, A.A. Almajid, M.M. El-Rayes, Mater. Sci. Eng., A 458 (2007) 226–234

[30] R. B. Figueiredo, M. Kawasaki, C. Xu, T. G. Langdon, Mater. Sci. Eng., A 493(2008)104-110

[31] L.J. Zhenga, C.Q. Chena, T.T. Zhoua, P.Y. Liua, M.G. Zengb, Materials Characterization, 49 (2003) 455– 461.

[32] R. Manna, N. K. Mukhopadhyay, G. V. S. Sastry, Metall. Mater. Trans. A, 39A (2008)1525-1534

[33] R. Manna, N. K. Mukhopadhyay and G.V. S. Sastry, Proc 30th Risø Intl Sym on Mater Sc:Nanostructured metals-Fundamentals to application, Risø National Laboratory, Denmark, 7-11th Sept, 2009, pp.245-252

[34] R. Manna, N.K. Mukhopadhyay and G.V.S. Sastry, Proc Intl conf. on Advances in Analytical Techniques and Characterization of Materials, RDCIS, Ranchi, India, 5-7th July, (2011)

[35] T. C. Schulthess, P. E. A. Turchi, A. Gonis,, T. G. Nieh, Acta Mater. ,46 (1998) 2215-2221

[36] G. E. Dieter, D. Bacon, Mechanical Metallurgy, McGraw-Hill Book Company, UK, (1988)

[37] T. H. Courtney, Mechanical Behavior of Materials, McGraw-Hill International Edition, (2000)

[38] R. Z. Valiev, I. V. Alexandrov, T. C. Lowe, Y. T. Zhu, J. Mater. Res. , 17 (2002) 5-8
