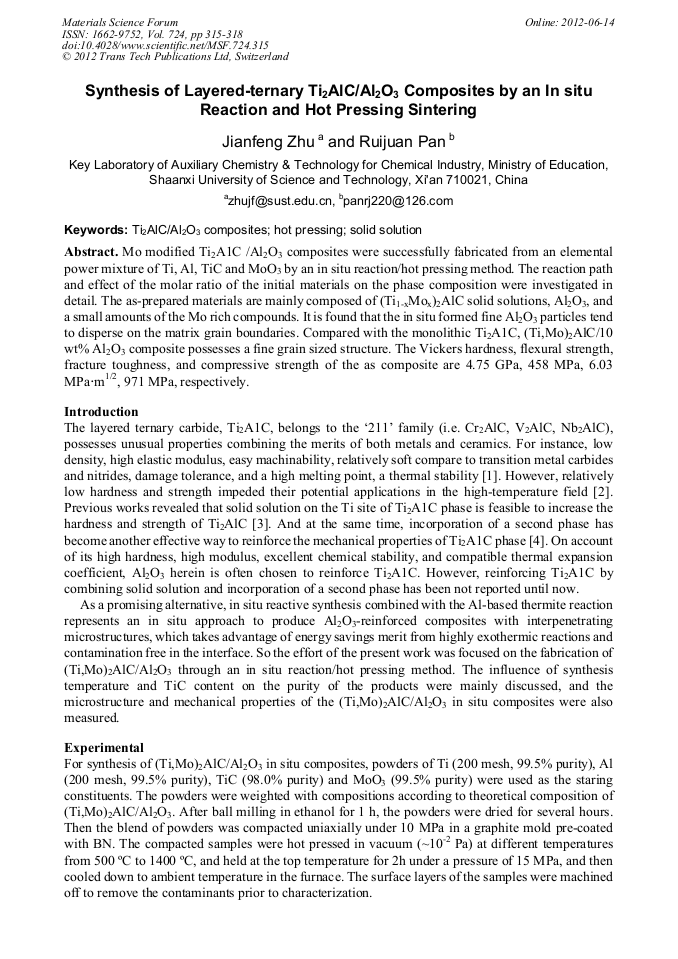

Synthesis of Layered-Ternary Ti₂AlC/Al₂O₃ Composites by an In Situ Reaction and Hot Pressing Sintering

Abstract:

Mo modified Ti₂A1C /Al₂O₃ composites were successfully fabricated from an elemental power mixture of Ti, Al, TiC and MoO₃ by an in situ reaction/hot pressing method. The reaction path and effect of the molar ratio of the initial materials on the phase composition were investigated in detail. The as-prepared materials are mainly composed of (Ti_1-xMo_x)₂AlC solid solutions, Al₂O₃, and a small amounts of the Mo rich compounds. It is found that the in situ formed fine Al₂O₃ particles tend to disperse on the matrix grain boundaries. Compared with the monolithic Ti₂A1C, (Ti,Mo)₂AlC/10 wt% Al₂O₃ composite possesses a fine grain sized structure. The Vickers hardness, flexural strength, fracture toughness, and compressive strength of the as composite are 4.75 GPa, 458 MPa, 6.03 MPa·m^1/2, 971 MPa, respectively.

• Periodical: Materials Science Forum (Volume 724)
• Pages: 315-318
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.724.315
• Online since: June 2012
• Authors: Jian Feng Zhu, Rui Juan Pan
• Keywords: Hot Pressing, Solid Solution, Ti₂AlC/Al₂O₃ Composites

References

[1] M.W. Barsoum, D. Brodkin and T. El-Raghy: Scripta Mater. Vol. 36 (1997), p.535.

[2] Y.C. Zhou, J.X. Chen and J.Y. Wang: Acta Mater. Vol. 54 (2006), p.1317.

[3] J.Y. Wang and Y. C. Zhou: Phy. Rev. B. Vol. 69 (2004), p.21411.

[4] C.L. Yeh, C.W. Kuo and Y.C. Chu: J. Alloys Compd. Vol. 494 (2010), p.132.

[5] J.Q. Qin, D.W. He, C. Chen, J.G. Wang, J. Hu and B.W. Yang: J. Alloys Compd. Vol. 462 (2008), p.24.

[6] P. Wang, B.C. Mei, X.L. Hong and W.B. Zhou: Trans. Nonferrous Met. Soc. Vol. 17 (2007), p.1001.

[7] V. Gauthier-Brunet, T. Cabioc'h, P. Chartier, M. Jaouen and S. Dubois: J. Eur. Ceram. Soc. Vol. 29 (2009), p.187.

[8] N.V. Tzenov and M.W. Barsoum: J. Am. Ceram. Soc. Vol. 83 (2000), p.825.

[9] C.L. Yeh, C.W. Kuo and Y.C. Chu: J. Alloys Compd. Vol. 494 (2010), p.132.

[10] J.X. Chen and Y.C. Zhou: Scripta Mater. Vol. 50 (2004), p.897.
