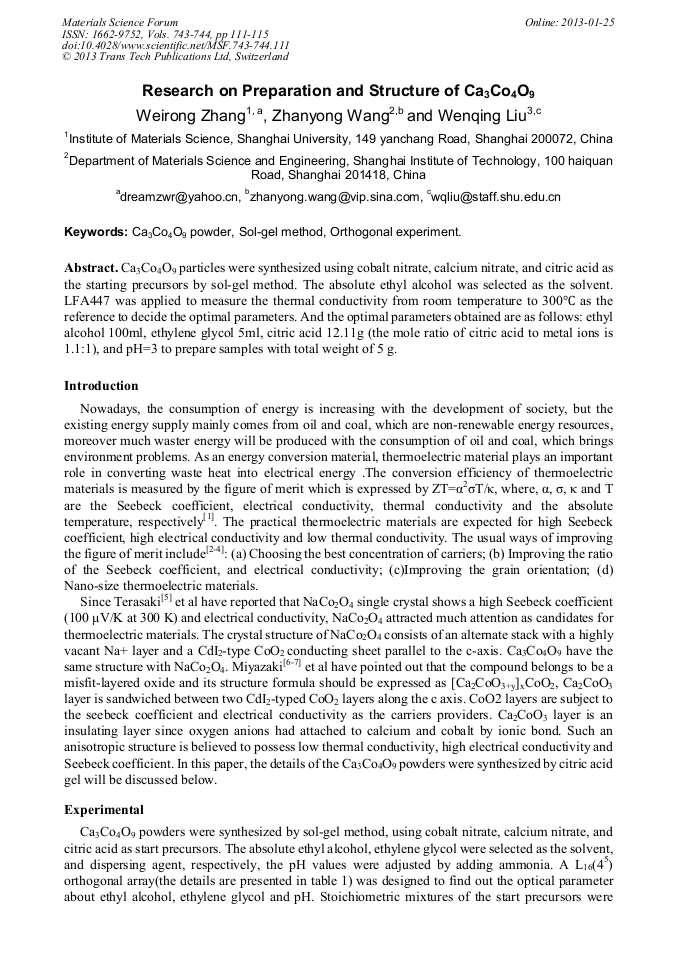

Research on Preparation and Structure of Ca₃Co₄O₉

Abstract:

Ca₃Co₄O₉ particles were synthesized using cobalt nitrate, calcium nitrate, and citric acid as the starting precursors by sol-gel method. The absolute ethyl alcohol was selected as the solvent. LFA447 was applied to measure the thermal conductivity from room temperature to 300 as the reference to decide the optimal parameters. And the optimal parameters obtained are as follows: ethyl alcohol 100ml, ethylene glycol 5ml, citric acid 12.11g (the mole ratio of citric acid to metal ions is 1.1:1), and pH=3 to prepare samples with total weight of 5 g.

• Periodical: Materials Science Forum (Volumes 743-744)
• Pages: 111-115
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.743-744.111
• Online since: January 2013
• Authors: Wei Rong Zhang, Zhan Yong Wang, Wen Qing Liu
• Keywords: Ca₃Co₄O₉ Powder, Orthogonal Experiment, Sol-Gel Method

References

[1] Paothep Pichanusakorn, Prabhakar Bandaru. Nanostructured thermoelectrics, J. Materials Science and Engineering R. 67(2010) 19-63.

DOI: 10.1016/j.mser.2009.10.001

[2] Shin Tajima, Toshihiko Tani, Shinya Isobe. Thermoelectric properties of highly textured NaCo2O4 ceramics processed by the reactive templated grain growth (RTGG) method, J. Materials Science &Engineering . 86(2001) 20-25.

DOI: 10.1016/s0921-5107(01)00633-x

[3] Takami T, Horibe M, Itoh M, and Cheng J. G, Controlling independently the electric and thermal properties by shrinking the particle size down to nanosize in quasi-one-dimensional Ca3Co2O6 and Sr6Co5O15, J. Phys. Rev. B. 82 (2010).

[4] Takeuchi T, Kondo T, Soda K, Mizutani U, Funahashi R, Shikano M, Tsuda S, Yokoya T, Muro T, Electronic structure and large thermoelectric power in Ca3Co4O9, J. Journal of Electron Spectroscopy and Related Phenomena. 137-140(2004) 595-599.

DOI: 10.1016/j.elspec.2004.02.013

[5] Yuzuru MIYAZAKI, Mitsuko ONODAI, Takeo OKU, Masae KIKUCHI, Yoshinobu ISHII, Yasuhiro ONO, et al. Modulated Structure of the Thermoelectric Compound [Ca2CoO3]0. 62CoO2, J. The Physical Society of Japan. 71(2002) 491-497.

DOI: 10.1143/jpsj.71.491

[6] Y. Miyazaki, K. Kudo, M. Akoshima, Y. Ono, Y. Koike. Modulated Structure of Misfit Layered Cobalt Oxide [(Ca0. 90Bi0. 10)2(Co0. 95Bi0. 05)O3]pCoO2, J. Appl. Phys. 43(2004) 6252-6258.

[7] Terasaki I, Sasago Y, Uchinokura K. Large thermoelectric power in NaCo2O4 single crystals, J. Phys. Rev. B 56(1997) R12685.

[8] Shigeru Katsuyama, Yuta Takiguchi, Mikio Ito. Synthesis of Ca3Co4O9 ceramics by polymerized complex and hydrothermal hot-pressing processes and the investigation of its thermoelectric properties, J. Mater Sci. 43(2008) 3553–3559.

DOI: 10.1007/s10853-008-2561-x

[9] LIU Hongquan, YU Zhongjun, GU Yijie, CHEN Yunbo. Effect of micro-structure on electrical transport properties in Ca3Co4O9 ceramics, J. RARE METALS. 30(2011) 77-80.

DOI: 10.1007/s12598-011-0242-4

[10] Yang Wang, Yu Sui, Peng Ren. Correlation between the Structural Distortions and Thermoelectric Characteristics in La1-xAxCoO3 (A = Ca and Sr), J. Inorganic Chemistry. 49(2010) 3216-3223.

DOI: 10.1021/ic902072v

[11] Masset A C, Michel C, Maignan A, M. Hervieu, O. Toulemonde, F. Studer, et al. Misfit-layered Cobaltite with An Anisotropic Giant Magnetoresistance: Ca3Co4O9, J. Phys. Rev. B . 62(2000) 166-175.

DOI: 10.1103/physrevb.62.166
