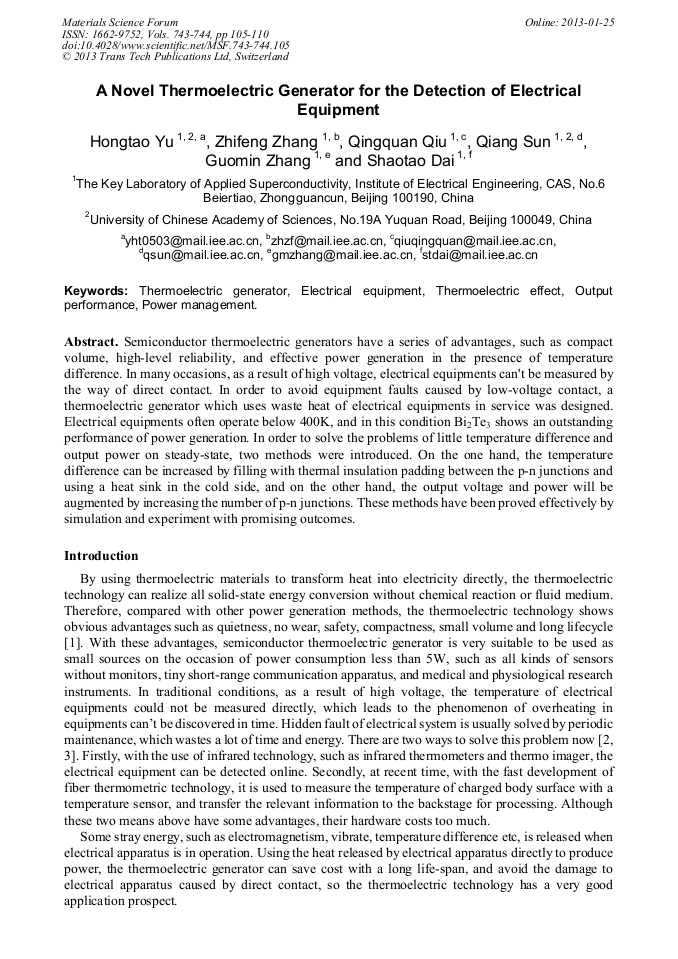

A Novel Thermoelectric Generator for the Detection of Electrical Equipment

Abstract:

Semiconductor thermoelectric generators have a series of advantages, such as compact volume, high-level reliability, and effective power generation in the presence of temperature difference. In many occasions, as a result of high voltage, electrical equipments can't be measured by the way of direct contact. In order to avoid equipment faults caused by low-voltage contact, a thermoelectric generator which uses waste heat of electrical equipments in service was designed. Electrical equipments often operate below 400K, and in this condition Bi₂Te₃ shows an outstanding performance of power generation. In order to solve the problems of little temperature difference and output power on steady-state, two methods were introduced. On the one hand, the temperature difference can be increased by filling with thermal insulation padding between the p-n junctions and using a heat sink in the cold side, and on the other hand, the output voltage and power will be augmented by increasing the number of p-n junctions. These methods have been proved effectively by simulation and experiment with promising outcomes.

• Periodical: Materials Science Forum (Volumes 743-744)
• Pages: 105-110
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.743-744.105
• Online since: January 2013
• Authors: Hong Tao Yu, Zhi Feng Zhang, Qing Quan Qiu, Qiang Sun, Guo Min Zhang, Shao Tao Dai
• Keywords: Electrical Equipment, Output Performance, Power Management, Thermoelectric Effect, Thermoelectric Generator

References

[1] K. McEnaney, Modeling of Solar Thermal Selective Surfaces and Thermoelectric Generators, Master of Science in Machanical Engineering at the Massachusetts Institute of Technology, Boston, (2010).

[2] Z. Yu, Application of I Infrared Imaging in Electric Equipment Inspection of Mega-kilowatt Units, Electric Power Construction. 30 (2009) 58-61.

[3] G. Zhou, Application of Infrared Technology in Electrical Equipment Inspection, Infrared. 28 (2007) 36-39.

[4] W. Glatz, E. Schwyter, L. Durrer, C. Hierold, Bi2Te3-Based Flexible Micro Thermoelectric Generator with Optimized Design, Journal of Microelectromechanical Systems. 18 (2009) 763-772.

DOI: 10.1109/jmems.2009.2021104

[5] J. Yang, Potential Applications of Thermoelectric Waste Heat Recovery in the Automotive Industry, International Conference on Thermoelectrics. 24 (2005) 170-174.

DOI: 10.1109/ict.2005.1519911

[6] Information on http: /www. jubandte. com/index. html.

[7] Information on http: /www. ztdzgf. com/cn/index. asp.

[8] Information on http: /www. fuxin-cn. com/zh-CN/index. html.

[9] E. E. Anotonova, D. C. Looman, Finite Elements for Thermoelectric Device Analysis in Ansys, International Conference on Thermoelectrics. 24 (2005) 215-218.

DOI: 10.1109/ict.2005.1519922
