Effect of Temperature and H₂S Concentration on Corrosion of X52 Pipeline Steel in Acidic Solutions

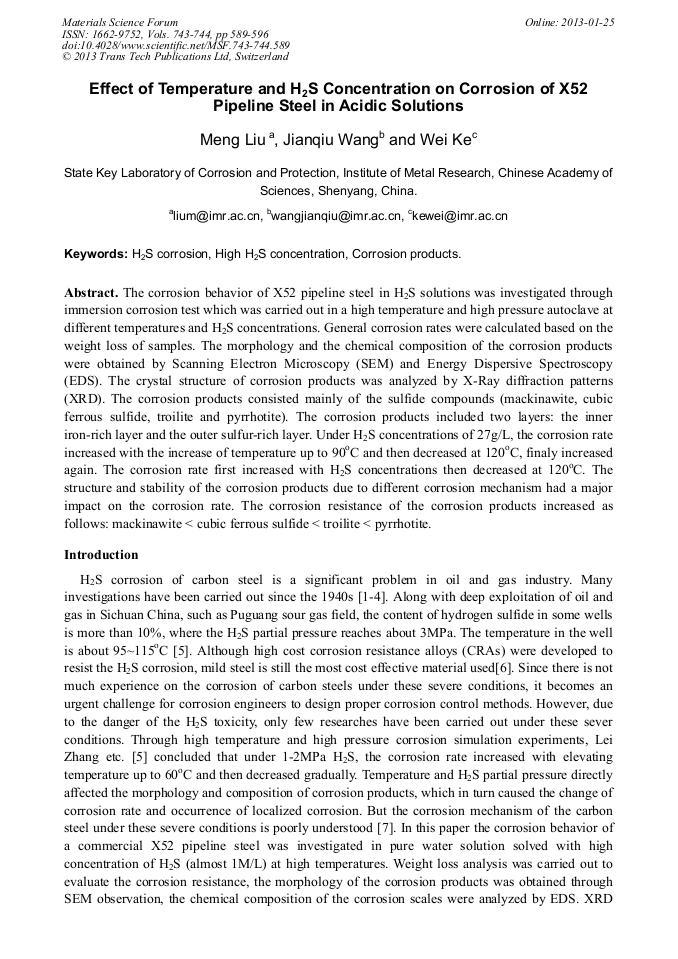

Abstract:

The corrosion behavior of X52 pipeline steel in H₂S solutions was investigated through immersion corrosion test which was carried out in a high temperature and high pressure autoclave at different temperatures and H₂S concentrations. General corrosion rates were calculated based on the weight loss of samples. The morphology and the chemical composition of the corrosion products were obtained by Scanning Electron Microscopy (SEM) and Energy Dispersive Spectroscopy (EDS). The crystal structure of corrosion products was analyzed by X-Ray diffraction patterns (XRD). The corrosion products consisted mainly of the sulfide compounds (mackinawite, cubic ferrous sulfide, troilite and pyrrhotite). The corrosion products included two layers: the inner iron-rich layer and the outer sulfur-rich layer. Under H₂S concentrations of 27g/L, the corrosion rate increased with the increase of temperature up to 90°C and then decreased at 120°C, finaly increased again. The corrosion rate first increased with H₂S concentrations then decreased at 120°C. The structure and stability of the corrosion products due to different corrosion mechanism had a major impact on the corrosion rate. The corrosion resistance of the corrosion products increased as follows: mackinawite < cubic ferrous sulfide < troilite < pyrrhotite.

• Periodical: Materials Science Forum (Volumes 743-744)
• Pages: 589-596
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.743-744.589
• Online since: January 2013
• Authors: Meng Liu, Jian Qiu Wang, Wei Ke
• Keywords: Corrosion Products, H₂S Corrosion, High H₂S Concentration

References

[1] S. N. Smith, M. W. Joosten, Corrosion of carbon steel by H2S in CO2 containing oilfield environments, CORROSION/2006 paper no. 115 (Houston, TX: NACE, 2006).

[2] S. N. Smith, B. Brown, W. Sun, Corrosion at higher H2S concentrations and moderate temperatures, CORROSION/2011 paper no. 081 (Houston, TX: NACE, 2011).

[3] H. H. Huang, W. T. Tsai, J. T. Lee, Corrosion morphology of A516 carbon steel in H2S solution, Scripta. Mater. 31 (1994) 825-828.

DOI: 10.1016/0956-716x(94)90486-3

[4] A. H. Espejel, M. A. D. Crespo, R. C. Sierra, C. R. Meneses, E. M. A. Estrada, Investigations of corrosion films formed on API-X52 pipeline steel in acid sour media, Corros. Sci. 52 (2010) 258–2267.

DOI: 10.1016/j.corsci.2010.04.003

[5] L. Zhang, W. Zhong, J. Yang, T. Gu, X. Xiao, M. Lu, Effects of temperature and partial pressure on H2S/CO2 corrosion of pipeline steel in sour conditions, CORROSION/2011 paper no. 079 (Houston, TX: NACE, 2011).

[6] M. Bonis, M. Girgis, K. Goerz, R. MacDonald, Weight loss corrosion with H2S: using past operations for designing future facilities, CORROSION/2006 paper no. 122 (Houston, TX: NACE, 2006).

[7] W. Sun, Kinetics of iron carbonate and iron sulfide scale formation in CO2/H2S corrosion, The Russ College of Engineering and Technology, Ph. D. thesis Ohio University, (2006).

[8] J. Kvarekval, R. Nyborg, H. Choi, Formation of multilayer iron sulfide films during high temperature CO2/H2S corrosion of carbon steel, CORROSION/2003 paper no. 339 (Houston, TX: NACE, 2003).

[9] Y. Song, A. Palencsar, T. Hemmingsen, Effect of O2 and temperature on sour corrosion, CORROSION/2011 paper no. 077 (Houston, TX: NACE, 2011).

[10] D. W. Shoesmith, P. Taylor, M. G. Bailey, D. G. Owen, The formation of ferrous monosulfide polymorphs during the corrosion of iron by aqueous hydrogen sulfide at 21oC, J. Electrochem. Soc. 127 (1980) 1007-1015.

DOI: 10.1149/1.2129808

[11] I. H. Omar, Y. M. Gunaltunk, J. Kvarekval, A. Dugstad, H2S corrosion of carbon steel under simulated kashagan field conditions, CORROSION/2005 paper no. 300 (Houston, TX: NACE, 2005).

[12] W. Sun, S. Nesic, S. Papavinasam, Kinetics of iron sulfide and mixed iron sulfide/carbonate scale precipitation in CO2/H2S corrosion, CORROSION/2006 paper no. 644 (Houston, TX: NACE, 2006).

DOI: 10.5006/1.3278494

[13] J. Carroll, A. Mather, The solubility of hydrogen sulphide in water from 0 to 90°C and pressures to 1 MPa, Geochim. Cosmochim. Acta. 53 (1989) 1163-l 170.

DOI: 10.1016/0016-7037(89)90053-7

[14] R. Woollam, K. Tummala, J. Vera, S, Hernandez, Thermodynamic prediction of FeCO3/FeS corrosion product films, CORROSION/2011 paper no. 076 (Houston, TX: NACE, 2011).

[15] J. L. Crolet, M. R. Bonis, How to pressurize autoclaves for corrosion testing under carbon dioxide and hydrogen sulfide pressure, Corrosion . 56 (2000) 167-183.

DOI: 10.5006/1.3280533

[16] A. G. Wiklord, T. E. Rummery, F. E. Doern, D. G. Owen, Corrosion and deposition during the exposure of carbon steel to hydrogen sulphide- water solutions. Corros. Sci. 20 (1980) 651-671.

DOI: 10.1016/0010-938x(80)90101-8

[17] S. N. Smith, J. L. Pacheco. Prediction of corrosion in slightly sour enivironments, CORROSION/2002 paper no. 241 (Houston, TX: NACE, 2002).

[18] D. W. Shoesmith, T. E. Rummery, M. G. Bailey, D. G. Owen, Electrocrystallization of pyrite and marcasite on stainless steel surfaces, J. Electrochem. Soc. 126 (1979) 911-919.

DOI: 10.1149/1.2129193

[19] Standard recommended practice preparation, installation, analysis, and interpretation of corrosion coupons in oilfield operations, NACE Standard RP0775-2005, No. 21017, Houston, TX, USA.

[20] A. Anderko, P. J. Shuler, A computational approach to predicting the formation of iron sulfide species suing stability diagrams. Compurrrs & Geoscience, 23 (1997) 647-658.

DOI: 10.1016/s0098-3004(97)00038-1
