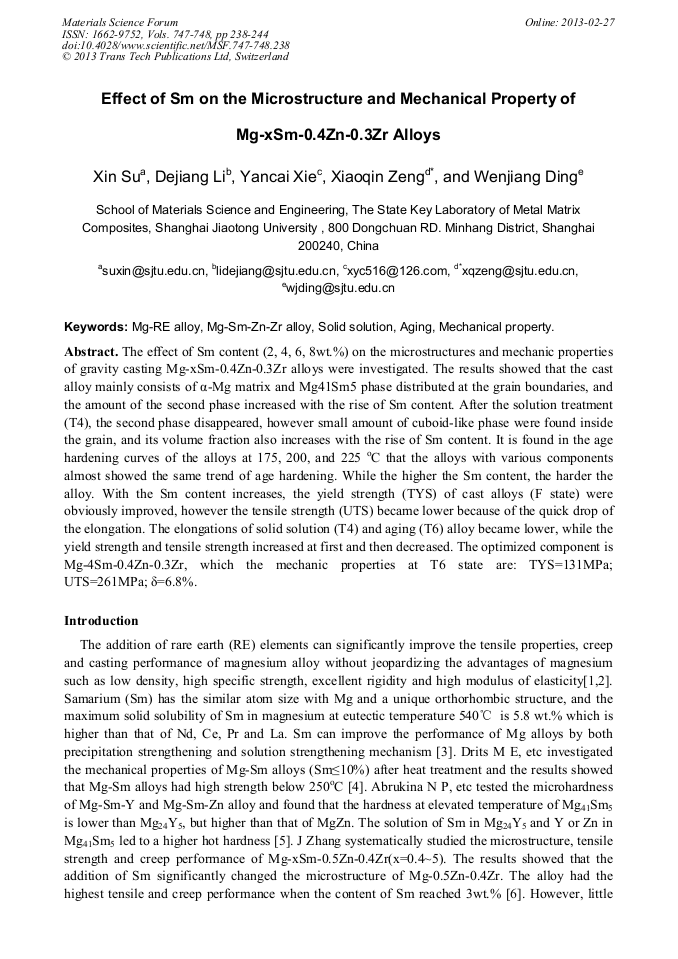

Effect of Sm on the Microstructure and Mechanical Property of Mg-xSm-0.4Zn-0.3Zr Alloys

Abstract:

The effect of Sm content (2, 4, 6, 8wt.%) on the microstructures and mechanic properties of gravity casting Mg-xSm-0.4Zn-0.3Zr alloys were investigated. The results showed that the cast alloy mainly consists of α-Mg matrix and Mg41Sm5 phase distributed at the grain boundaries, and the amount of the second phase increased with the rise of Sm content. After the solution treatment (T4), the second phase disappeared, however small amount of cuboid-like phase were found inside the grain, and its volume fraction also increases with the rise of Sm content. It is found in the age hardening curves of the alloys at 175, 200, and 225 °C that the alloys with various components almost showed the same trend of age hardening. While the higher the Sm content, the harder the alloy. With the Sm content increases, the yield strength (TYS) of cast alloys (F state) were obviously improved, however the tensile strength (UTS) became lower because of the quick drop of the elongation. The elongations of solid solution (T4) and aging (T6) alloy became lower, while the yield strength and tensile strength increased at first and then decreased. The optimized component is Mg-4Sm-0.4Zn-0.3Zr, which the mechanic properties at T6 state are: TYS=131MPa; UTS=261MPa; δ=6.8%.

• Periodical: Materials Science Forum (Volumes 747-748)
• Pages: 238-244
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.747-748.238
• Online since: February 2013
• Authors: Xin Su, De Jiang Li, Yan Cai Xie, Xiao Qin Zeng, Wen Jiang Ding
• Keywords: Aging, Mechanical Property, Mg-Re Alloy, Mg-Sm-Zn-Zr Alloy, Solid Solution

References

[1] ELIEZER D, AGHION E, FROES F H. Magnesium science, technology and applications[J]. Adv. Perform Mater. (1998) 201−212.

[2] L.L. Rokhlin, Taylor and Francis. Magnesium alloys containing rare earth metals: structure and properties[M]. New York, (2003).

DOI: 10.1201/9781482265163

[3] KJ Li, QA Li, et al. Effects of Sm addition on microstructure and mechanical properties of Mg–6Al–0. 6Zn alloy[J]. Scripta Mater. 60(12)(2009) 1101-1104.

DOI: 10.1016/j.scriptamat.2009.02.048

[4] Drits M E, Rokhlin L L, Abrukina N P. Mechanical properties of binary alloys of the Mg-Sm system[J]. Met. Sci. Heat Treat. 27(7-8)(1985) 508- 510.

DOI: 10.1007/bf00699580

[5] Abrukina N P. Russ. Microhardness of Phases in the Systems Mg-Sm-Y and Mg-Sm-Zn[J]. Metall. (2)(1987)219-221.

[6] J Zheng. Doctoral Thesis(In Chinese), Shanghai Jiao Tong University, Shanghai, (2010).

[7] ZY Zhang. Doctoral Thesis(In Chinese), Shanghai Jiao Tong University, Shanghai, (2010).

[8] Daquan Li, etc. Mater. Sci. Eng.A. 428(2006)295-300.

[9] Yan Gao, etc. Mater. Sci. Eng.A. 459(2007)117-123.

[10] PH Fu. Doctoral Thesis(In Chinese), Shanghai Jiao Tong University, Shanghai, (2008).

[11] R E Smallman. Modern Physical Metallurgy, Butterworth Heinemann, Fourth Edition, (1985).

[12] A Kelly and R B Nicholson. Prog. Mater Sci. Pergamon. 10(3)(1963).

[13] SM He. Doctoral Thesis (In Chinese), Shanghai Jiao Tong University, Shanghai, (2007).
