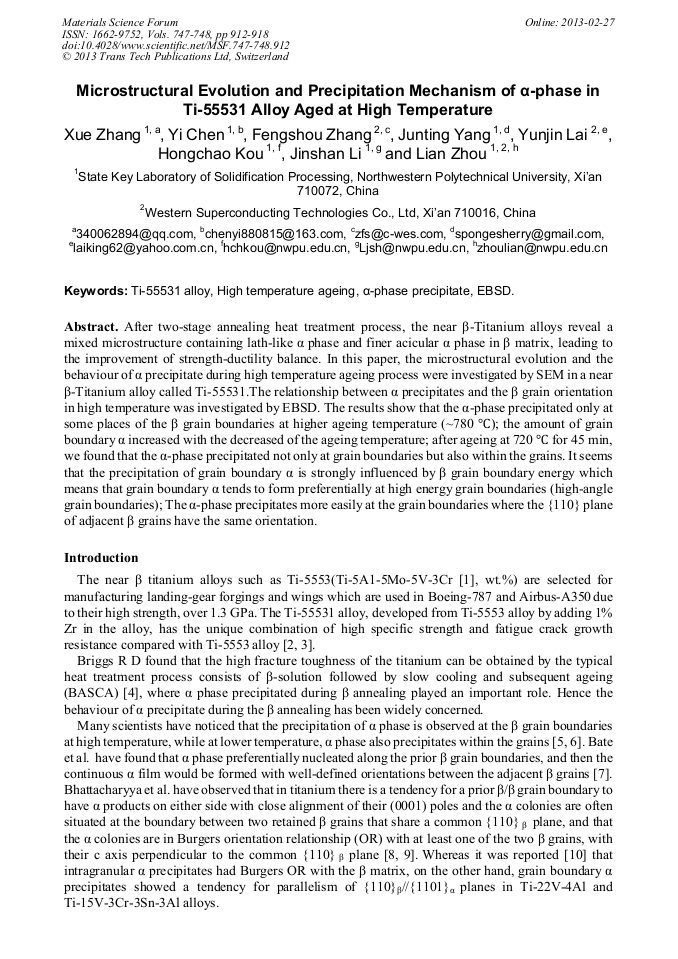

Microstructural Evolution and Precipitation Mechanism of α-Phase in Ti-55531 Alloy Aged at High Temperature

Abstract:

After two-stage annealing heat treatment process, the near β-Titanium alloys reveal a mixed microstructure containing lath-like α phase and finer acicular α phase in β matrix, leading to the improvement of strength-ductility balance. In this paper, the microstructural evolution and the behaviour of α precipitate during high temperature ageing process were investigated by SEM in a near β-Titanium alloy called Ti-55531.The relationship between α precipitates and the β grain orientation in high temperature was investigated by EBSD. The results show that the α-phase precipitated only at some places of the β grain boundaries at higher ageing temperature (~780 °C); the amount of grain boundary α increased with the decreased of the ageing temperature; after ageing at 720 °C for 45 min, we found that the α-phase precipitated not only at grain boundaries but also within the grains. It seems that the precipitation of grain boundary α is strongly influenced by β grain boundary energy which means that grain boundary α tends to form preferentially at high energy grain boundaries (high-angle grain boundaries); The α-phase precipitates more easily at the grain boundaries where the {110} plane of adjacent β grains have the same orientation.

• Periodical: Materials Science Forum (Volumes 747-748)
• Pages: 912-918
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.747-748.912
• Online since: February 2013
• Authors: Xue Zhang, Yi Chen, Feng Shou Zhang, Jun Ting Yang, Yun Jin Lai, Hong Chao Kou, Jin Shan Li, Lian Zhou
• Keywords: EBSD, High Temperature Ageing, Ti-55531 Alloy, α-Phase Precipitate

References

[1] J.C. Fanning and R.R. Boyer, Properties of TIMETAL 555: a new near-beta titanium alloy for airframe components[C]. Ti-2003 Science and Technology. Hamburg: DGM. (2003) 2643-2650.

[2] N. Duret, Titanium for damage tolerance applications on A380 [C]. Ti-2003 Science and Technology. Hamburg: DGM. (2003) 2667-2671.

[3] Y.Y. Fu, Y.Q. Song, S.X. Hui and X.J. Mi, Optimization on the heat treatment process of VST55531 titanium alloy with orthogonal test [J]. Heat treatment of metals. 33 (2008) 66-68.

[4] R.D. Briggs, Tough, high-strength titanium alloys: Methods of heat treating titanium [P]. US 20040250932. (2004) 12-16.

[5] A. Lenain, N. Clément, M. Véron, and P.J. Jacques, Characterization of the α phase nucleation in a two-phase metastable β titanium alloy [J]. Journal of Materials Engineering and Performance. 14 (2005) 722-727.

DOI: 10.1361/105994905x75510

[6] S. Azimzadeh and H.J. Rack, Phase Transformations in Ti-6. 8Mo-4. 5Fe-1. 5Al [J]. Metall. Mater. Trans. A. (1998) 2455-2466.

[7] N. Stanford and P.S. Bate, Crystallographic variant selection in Ti-6Al-4V. Acta Materialia. 52 (2004) 5215-5224.

DOI: 10.1016/j.actamat.2004.07.034

[8] D. Bhattacharyya, G.B. Viswanathan, et al., The role of crystallographic and geometrical relationships between α and β phases in an α/β titanium alloy [J]. Acta Materialia. 51 (2003) 4679-4791.

DOI: 10.1016/s1359-6454(03)00179-4

[9] D. Bhattacharyya, G.B. Viswanathan, et al., Crystallographic and morphological relationships between β phase and the Widmanstätten and allotriomorphic α phase at special β grain boundaries in an α/β titanium alloy [J]. Acta Materialia. 55 (2007).

DOI: 10.1016/j.actamat.2007.08.029

[10] Miyano, H. Fujiwara, et al., Preferred orientation relationship of intra- and inter- granular precipitates in titanium alloys [J]. Materials Science and Engineering: A. 333 (2002) 85-91.

DOI: 10.1016/s0921-5093(01)01829-9

[11] P. Ge, Y.Q. Zhao, et al., Influence of solution conditions on aging response of a new metastable beta titanium alloy [J]. Rare Metal Materials and Engineering. 35 (2006) 707-710.

[12] X. Wu, J. del Prado, Q. Li, et al., Analytical electron microscopy of C-free and C-containing Ti-15-3 [J]. Acta Materialia. 54 (2006) 5433-5448.

DOI: 10.1016/j.actamat.2006.07.002

[13] N. Clément and A. Lenain, Mechanical property optimization via microstructural control of new metastable beta titanium alloys [J]. Processing and Characterizing Titanium Alloys. (2007) 50-53.

DOI: 10.1007/s11837-007-0010-y

[14] S.M.C. van Bohemen, A. Kamp and R.H. Petrov, Nucleation and variant selection of secondary α plates in a β Ti alloy [J]. Acta Materialia. 56 (2008) 5907-5914.

DOI: 10.1016/j.actamat.2008.08.016
