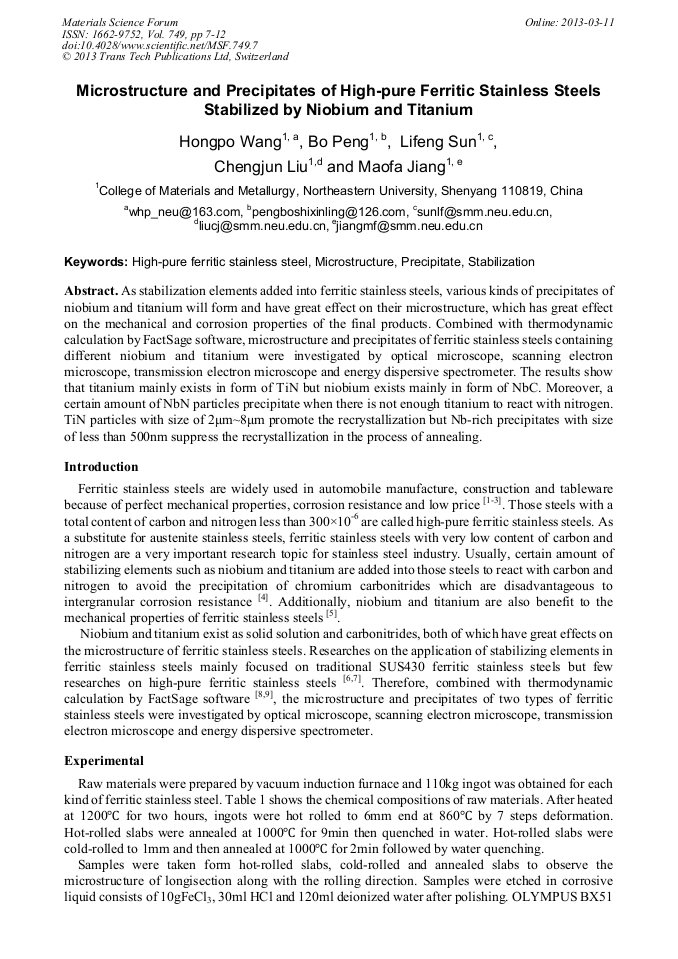

Microstructure and Precipitates of High-Pure Ferritic Stainless Steels Stabilized by Niobium and Titanium

Abstract:

As stabilization elements added into ferritic stainless steels, various kinds of precipitates of niobium and titanium will form and have great effect on their microstructure, which has great effect on the mechanical and corrosion properties of the final products. Combined with thermodynamic calculation by FactSage software, microstructure and precipitates of ferritic stainless steels containing different niobium and titanium were investigated by optical microscope, scanning electron microscope, transmission electron microscope and energy dispersive spectrometer. The results show that titanium mainly exists in form of TiN but niobium exists mainly in form of NbC. Moreover, a certain amount of NbN particles precipitate when there is not enough titanium to react with nitrogen. TiN particles with size of 2μm~8μm promote the recrystallization but Nb-rich precipitates with size of less than 500nm suppress the recrystallization in the process of annealing.

• Periodical: Materials Science Forum (Volume 749)
• Pages: 7-12
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.749.7
• Online since: March 2013
• Authors: Hong Po Wang, Bo Peng, Li Feng Sun, Cheng Jun Liu, Mao Fa Jiang
• Keywords: High-Pure Ferritic Stainless Steel, Microstructure, Precipitate, Stabilization

References

[1] N. Fujita, K. Ohmura, A. Yamamoto, Changes of microstructures and high temperature properties during high temperature service of Niobium added ferritic stainless steels, Mater. Sci. Eng., A 351 (2003) 272-281.

DOI: 10.1016/s0921-5093(02)00831-6

[2] N. Fujita, M. Kikuchi, K. Ohmura, et al., Effect of Nb on high-temperature properties for ferritic stainless steel, Scripta Mater. 35 (1996) 705-710.

DOI: 10.1016/1359-6462(96)00214-x

[3] N.R. Baddoo, Stainless steel in construction: A review of research, applications, challenges and opportunities, J. Constr. Steel Res. 64 (2008) 1199-1206.

DOI: 10.1016/j.jcsr.2008.07.011

[4] J.K. Kim, Y.H. Kim, S.H. Uhm, et al., Intergranular corrosion of Ti-stabilized 11 wt% Cr ferritic stainless steel for automotive exhaust systems, Corros. Sci. 51 (2009) 2716-2723.

DOI: 10.1016/j.corsci.2009.07.008

[5] H. Yan, H. Bi, X. Li, et al., Microstructure and texture of Nb+Ti stabilized ferritic stainless steel, Mater. Charact. 59 (2008) 1741-1746.

DOI: 10.1016/j.matchar.2008.03.018

[6] R.P. Siqueira, H.R.Z. Sandim, T.R. Oliveira, et al., Composition and orientation effects on the final recrystallization texture of coarse-grained Nb-containing AISI 430 ferritic stainless steels, Mater. Sci. Eng., A 528 (2011) 3513-3519.

DOI: 10.1016/j.msea.2011.01.007

[7] S. Hastuty, A. Nishikata, T. Tsuru, Pitting corrosion of type 430 stainless steel under chloride solution droplet, Corros. Sci. 52 (2010) 2035-(2043).

DOI: 10.1016/j.corsci.2010.02.031

[8] C.W. Bale, P. Chartrand, S.A. Degterov, et al., FactSage thermochemical software and databases, Calphad 26 (2002) 189-228.

DOI: 10.1016/s0364-5916(02)00035-4

[9] C.W. Bale, E. Bélisle, P. Chartrand, et al., FactSage thermochemical software and databases-recent developments, Calphad 33 (2009) 295-311.

DOI: 10.1016/j.calphad.2008.09.009

[10] H. Wang, L. Sun, B. Peng, et al., Study on inclusions for ultra-pure ferritic stainless steels containing 21% chromium, J. Iron Steel Res., Int. (in press).

DOI: 10.1016/s1006-706x(13)60179-x

[11] K.A. Taylor, Solubility products for titanium-, vanadium-, and niobium-carbide in ferrite, Scri. Metall. Mater. 32 (1995) 7-12.

[12] S. Matsuda, N. Okumura, Effect of distribution of Ti nitride precipitate particles on the austenite grain size of low carbon and low alloy steels, Trans. J. Iron Steel Inst. Jpn 18 (1978) 198-205.

DOI: 10.2355/isijinternational1966.18.198

[13] K. Narita, Physical chemistry of the groups IVa (Ti, Zr), Va (V, Nb, Ta) and the rare earth elements in steel, Trans. J. Iron Steel Inst. Jpn 15 (1975).

DOI: 10.2355/isijinternational1966.15.145

[15] T. Maki, Principle and various methods for grain refinement of steels, Heat Treat. 21 (2006) 1-9+14 (in Chinese).

[16] G.M. Sim, J.C. Ahn, S.C. Hong, et al., Effect of Nb precipitate coarsening on the high temperature strength in Nb containing ferritic stainless steels, Mater. Sci. Eng., A 396 (2005) 159-165.

DOI: 10.1016/j.msea.2005.01.030
