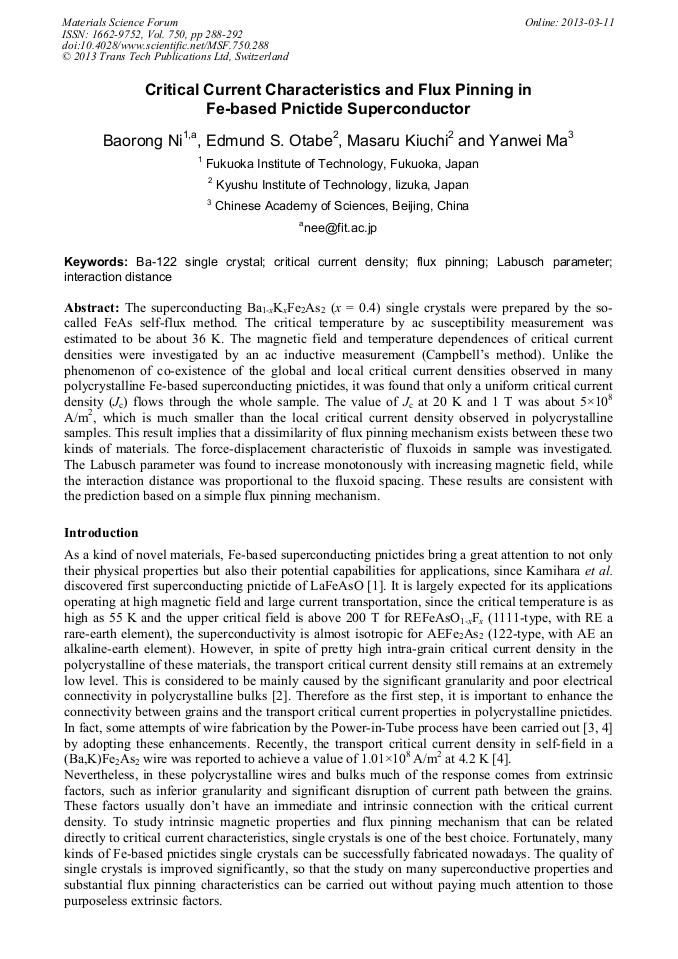

Critical Current Characteristics and Flux Pinning in Fe-Based Pnictide Superconductor

Abstract:

The superconducting Ba_1-xK_xFe₂As₂ (x = 0.4) single crystals were prepared by the so-called FeAs self-flux method. The critical temperature by ac susceptibility measurement was estimated to be about 36 K. The magnetic field and temperature dependences of critical current densities were investigated by an ac inductive measurement (Campbell’s method). Unlike the phenomenon of co-existence of the global and local critical current densities observed in many polycrystalline Fe-based superconducting pnictides, it was found that only a uniform critical current density (J_c) flows through the whole sample. The value of J_c at 20 K and 1 T was about 5×10⁸ A/m², which is much smaller than the local critical current density observed in polycrystalline samples. This result implies that a dissimilarity of flux pinning mechanism exists between these two kinds of materials. The force-displacement characteristic of fluxoids in sample was investigated. The Labusch parameter was found to increase monotonously with increasing magnetic field, while the interaction distance was proportional to the fluxoid spacing. These results are consistent with the prediction based on a simple flux pinning mechanism.

• Periodical: Materials Science Forum (Volume 750)
• Pages: 288-292
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.750.288
• Online since: March 2013
• Authors: Bao Rong Ni, Edmund S. Otabe, Masaru Kiuchi, Yan Wei Ma
• Keywords: Ba-122 Single Crystal, Critical Current Density, Flux Pinning, Interaction Distance, Labusch Parameter

References

[1] Y. Kamihara, T. Watanabe, M. Hirano, H. Hosono. Iron-Based Layered Superconductor La[O1-xFx]FeAs (x= 0. 05-0. 12) with Tc=26K. J. Am. Chem. Soc. 2008; 130: 3296-3297.

DOI: 10.1021/ja800073m.s002

[2] E. S. Otabe, M. Kiuchi, S. Kawai, Y. Morita, J. Ge, B. Ni, Z. S. Gao, L. Wang, Y. P. Qi, X. P. Zhang, Y. W. Ma. Global and local critical current density in superconducting SmFeAsO1-xFx measured by two methods. Physica C 2009; 469: p.1940–(1944).

DOI: 10.1016/j.physc.2009.06.013

[3] Y. P. Qi, X. P. Zhang, Z. S. Gao, Z. Y. Zhang, L. Wang, D. L. Wang, Y. W. Ma. Superconductivity of powder-in-tube Sr0. 6K0. 4Fe2As2 wires. Physica C 2009; 469: 717-720.

DOI: 10.1016/j.physc.2009.03.008

[4] K. Togano, A. Matsumoto, H. Kumakura. Large Transport Critical Current Densities of Ag Sheathed (Ba, K)Fe2As2+Ag Superconducting Wires Fabricated by an Ex-situ Powder-in-Tube Process. Applied Physics Express 2011; 4: 043101.

DOI: 10.1143/apex.4.043101

[5] C. L. Wang, Z. S. Gao, C. Yao. L. Wang, Y. P. Qi, D. L. Wang, X. P. Zhang, Y. W. Ma. One-step method to grow Ba0. 6K0. 4Fe2As2 single crystals without fluxing agent. Superconductor Science and Technology 2011; 24: 065002.

DOI: 10.1088/0953-2048/24/6/065002

[6] A. M. Campbell. The response of pinned flux vortices to low-frequency fields. J Phys C 1969; 2: 1492–1501.

DOI: 10.1088/0022-3719/2/8/318

[7] A. M. Campbell. The interaction distance between flux lines an pinning centres. J Phys C 1971; 4: 3186–3198.

DOI: 10.1088/0022-3719/4/18/023

[8] R. Prozorov, N. Ni, M. A. Tanatar, V. G. Kogan, R. T. Gordon, C. Martin, E. C. Blomberg, P. Prommapan, J. Q. Yan, S. L. Bud'ko, P. C. Canfield. Vortex phase diagram of Ba(Fe0. 93Co0. 07)2As2 single crystals. Phys. Rev. B 2008; 78: 224506.

DOI: 10.1016/j.physc.2009.03.028

[9] A. K. Pramanik, L. Harnagea, C. Nacke, A. U. B. Wolter, S. Wurmehl, V. Kataev, B. Buchner. Fishtail effect and vortex dynamics in LiFeAs Single crystals. Phys. Rev. B 2011; 83: 094502.

DOI: 10.1103/physrevb.83.094502

[10] A. M. Campbell, H. Küpfer, R. Meier-Hirmer. Tests of pinning theories using the response to small oscillations. In: T. Matsushita, K. Yamafuji, F. Irie, editors. Proceedings of International Symposium on Flux Pinning and Electromagnetic Properties in Superconductors, Fukuoka: Matsukuma; 1985, p.54.

[11] D. L. Sun, Y. Liu, C. T. Lin. Comparative study of upper critical field Hc2 and second magnetization peak Hsp in hole- and electron-doped BaFe2As2 superconductor. Phys. Rev. B 2009; 80: 144515.

[12] R. Kopeliansky, A. Shaulov, B. Y. Shapiro, Y. Yeshurun, B. Rosenstein, J. J. Tu, L. J. Li, G. H. Cao, Z. A. Xu. Possibility of vortex lattice structural phase transition in the superconducting pnictide Ba(Fe0. 925Co0. 075)2As2. Phys. Rev. B 2010; 81: 092504.

DOI: 10.1103/physrevb.81.092504

[13] T. Matsushita, H. Küpfer. Enhancement of the superconducting critical current from saturation in Nb-Ti wire. J. Appl. Phys. 1988; 63: 5028–5029.

DOI: 10.1063/1.340402

[14] T. Matsushita. Pinning Force of a Nonideal Superconductor Containing Pins with Large Interaction Forces. II. Low Pin Density. Jpn. Appl. Phys. 1981; 20: 1955–(1966).

DOI: 10.1143/jjap.20.1955
