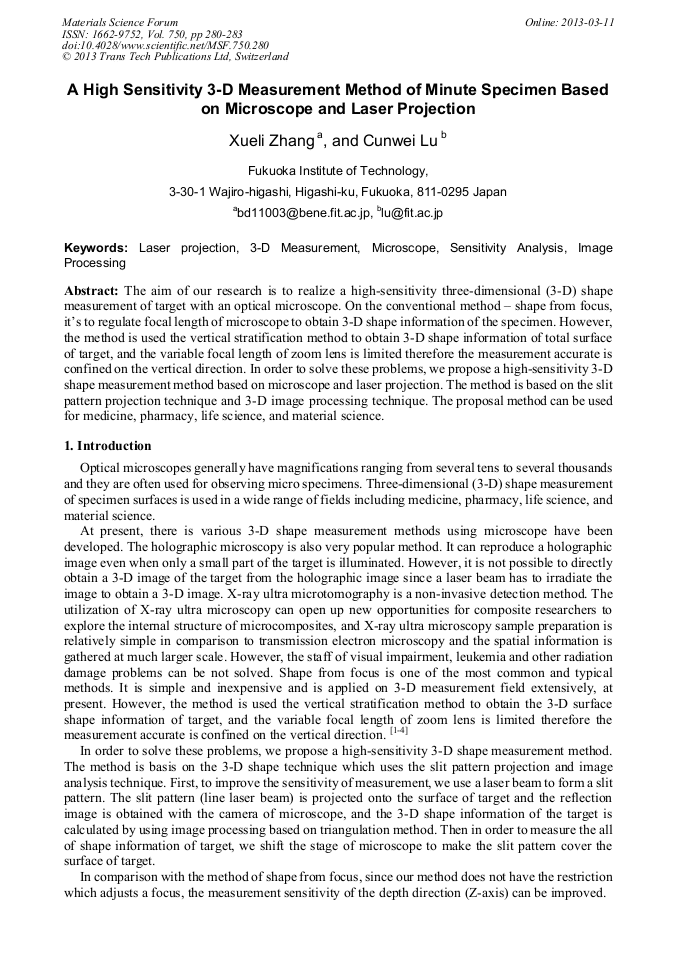

A High Sensitivity 3-D Measurement Method of Minute Specimen Based on Microscope and Laser Projection

Abstract:

The aim of our research is to realize a high-sensitivity three-dimensional (3-D) shape measurement of target with an optical microscope. On the conventional method – shape from focus, it’s to regulate focal length of microscope to obtain 3-D shape information of the specimen. However, the method is used the vertical stratification method to obtain 3-D shape information of total surface of target, and the variable focal length of zoom lens is limited therefore the measurement accurate is confined on the vertical direction. In order to solve these problems, we propose a high-sensitivity 3-D shape measurement method based on microscope and laser projection. The method is based on the slit pattern projection technique and 3-D image processing technique. The proposal method can be used for medicine, pharmacy, life science, and material science.

• Periodical: Materials Science Forum (Volume 750)
• Pages: 280-283
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.750.280
• Online since: March 2013
• Authors: Xue Li Zhang, Cun Wei Lu
• Keywords: 3D Measurement, Image Processing, Laser Projection, Microscope, Sensitivity Analysis

References

[1] S.K. Nayar, Y. Nakagawa: Shape from focus, IEEE Transactions on Pattern Analysis and Machine Intelligence, Vol. 16, No. 8, p.824–831, (1994).

DOI: 10.1109/34.308479

[2] J.A. Schnabel, S.R. Arridge, Active shape focusing, Image and Vision Computing, Vol. 17, No. 5–6, p.419–428, (1999).

DOI: 10.1016/s0262-8856(98)00127-9

[3] F. Joud, N. Warnasooriya, P. Bun, F. Verpillat, S. Y. Suck, G. Tessier, M. Atlan, P. Desbiolles, M. Coppey-Moisan, M. Abboud, and M. Gross, 3D exploration of light scattering from live cells in the presence of gold nanomarkers using holographic microscopy, 3-D Research , Vol. 2, No. 1, pp.1-8, (2011).

DOI: 10.1007/3dres.01(2011)2

[4] A. PAKZAD, N. PARIKH, P.A. HEIDEN, and R.S. YASSAR, Revealing the 3-D internal structure of natural polymer microcomposites using X-ray ultra microtomography, Journal of Microscopy, Vol. 243, No. 1, p.77–85, (2011).

DOI: 10.1111/j.1365-2818.2010.03483.x

[5] J. Batlle, E. Mouaddib, and J. Salvi, Recent progress in coded structured light as a technique to solve the correspondence problem: a survey, Pattern Recognition, Vol. 31, No. 7, pp.963-982, (1998).

DOI: 10.1016/s0031-3203(97)00074-5

[6] C. Lu, A. Yamaguchi, S. Inokuchi, 3-D measurement based on intensity-phase analysis of intensity modulated moiré, John Wiley & Sons, Electronics and Communication in Japan: Part 3, Vol. 85, No. 1, p.71–80, (2002).

DOI: 10.1002/ecjc.1065
