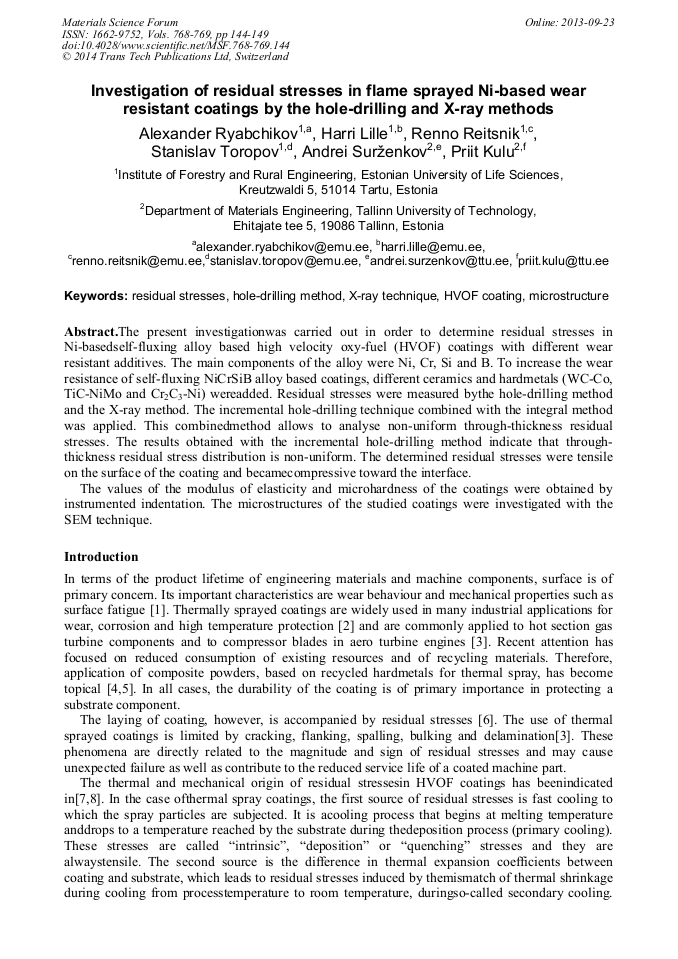

Investigation of Residual Stresses in Flame Sprayed Ni-Based Wear Resistant Coatings by the Hole-Drilling and X-Ray Methods

Abstract:

The present investigation was carried out in order to determine residual stresses inNi-based self-fluxing alloy based high velocity oxy-fuel (HVOF) coatings with different wearresistant additives. The main components of the alloy were Ni, Cr, Si and B. To increase the wearresistance of self-fluxing NiCrSiB alloy based coatings, different ceramics and hard metals(WC-Co, TiC-NiMo and Cr2C3-Ni) were added. Residual stresses were measured by the holedrillingmethod and the X-ray method. The incremental hole-drilling technique combined with theintegral method was applied. This combined method allows to analyse non-uniform throughthicknessresidual stresses. The results obtained with the incremental hole-drilling method indicatethat through-thickness residual stress distribution is non-uniform. The determined residual stresseswere tensile on the surface of the coating and became compressive toward the interface.The values of the modulus of elasticity and microhardness of the coatings were obtained byinstrumented indentation. The microstructures of the studied coatings were investigated with theSEM technique.

• Periodical: Materials Science Forum (Volumes 768-769)
• Pages: 144-149
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.768-769.144
• Online since: September 2013
• Authors: Alexander Ryabchikov, Harri Lille, Renno Reitsnik, Stanislav Toropov, Andrei Surzhenkov, Priit Kulu
• Keywords: Hole-Drilling Method, HVOF Coating, Microstructure, Residual Stress, X-Ray Technique

References

[1] R.G. Bayer, Wear Analysis for Engineers, HNB, New York, (2002).

[2] U. Karnerva, J. Lagerbom, P. Vuoristo, Development of thermal spray powders for improved tribological and corrosive applications and cost-effective solutions, Int. J. Mater. Product. Technol. 28 (2007) 377-398.

DOI: 10.1504/ijmpt.2007.013086

[3] T.C. Tottemeier, R.N. Wright W.D. Swank, Residual stresses in high-velocity oxy-fuel metallic Coatings, Metallurgical and Materials Transactions35A (2004) 1807-1814.

DOI: 10.1007/s11661-004-0089-5

[4] I. Kleis, P. Kulu, Solid Particle Erosion. Occurrence, Prediction and Control, Springer-Verlag, London, (2008).

[5] H. Sarjas, D. Goljandin, P. Kulu, V. Mikli, A. Surženkov, P. Vuoristo, Wear resistant thermal spray composite coatings based on iron self-fluxing alloy and recycled cermet powders. Materials Science (Medžiagotyra) 18 (2012) 1, 34-39.

DOI: 10.5755/j01.ms.18.1.1338

[6] P.J. Withers, H.K.D.H. Bhadeshia, Residual stress. Part 2 – nature and origins, Materials Science and Technology 17 (2001) 366-375.

DOI: 10.1179/026708301101510087

[7] Y.Y. Santana, J.G. La Barbera-Sosa, M.H. Staia, J. Lasage, E.S. Puchi-Cabrera, D. Chicot, E. Bemporad, Measurement of residual stress in thermal spray coatings by the incremental hole drilling method, Surface & Coatings Technology 201 (2006).

DOI: 10.1016/j.surfcoat.2006.04.056

[8] O.P. Oladijo, A.M. Venter, L.A. Cornish, N. Sacks, X-ray diffraction measurement of residual stress in WC-Co thermally sprayed coatings onto metal substrates, Surface & Coatings Technology 206 (2012) 4725-4729.

DOI: 10.1016/j.surfcoat.2012.01.044

[9] J. Lu, Handbook of measurement of residual stresses, The Fairmont Press Inc., Lilburn, (1996).

[10] ASTM 837-08, Standard Test Method for Determining Residual Stresses by the Hole-Drilling Strain-Gage Method.

DOI: 10.1520/e0837-01e01

[11] G.S. Schajer, H-Drill. Hole-Drilling Residual Stress Calculation Program, Instruction Manual, Version 3. 11, (2000).

[12] A. Surzhenkov, M. Viljus, A. Vallikivi, T. Vilgo, P. Kulu, Wear resistant self-fluxing alloy based TiC-NiMo and Cr2C3-Ni hardmetal particles reinforced composite coatings, Proc. of the 2nd Int. Conf. On Manufacturing engineering &Management (2012).

DOI: 10.3176/eng.2013.3.03

[13] H. Lille, J. Kõo, P. Kulu, T. Pihl, Residual Stresses in Different Thermal Spray Coatings, Proc. of the Estonian Academy of Sciences. Engineering 8 (2003) 3, 162-173.

DOI: 10.3176/eng.2002.3.02

[14] G.M. Ludtka, V.K. Sikka, Aluminum soldering performance testing of H13 steel as boron coated by the cathodic arc technique, Society of Vacuum Coaters (2004) 505/856-7188.

[15] I. Hussainova, A. Kolesnikova, M. Hussainov, A. Romanov, Effect of thermo-elastic residual stresses on erosive performance of cermets with core-rim structured ceramic grains, Wear 267 (2009) 177-185.

DOI: 10.1016/j.wear.2009.01.019

[16] J. Kõo, J. Valgur, Analysis of thermoelastic stresses in layered plates, Proc. of the 6th Int. Conf. of DAAAM Baltic, Industrial Engineering (Ed. R. Kyttner) (2008) 491 - 496.
