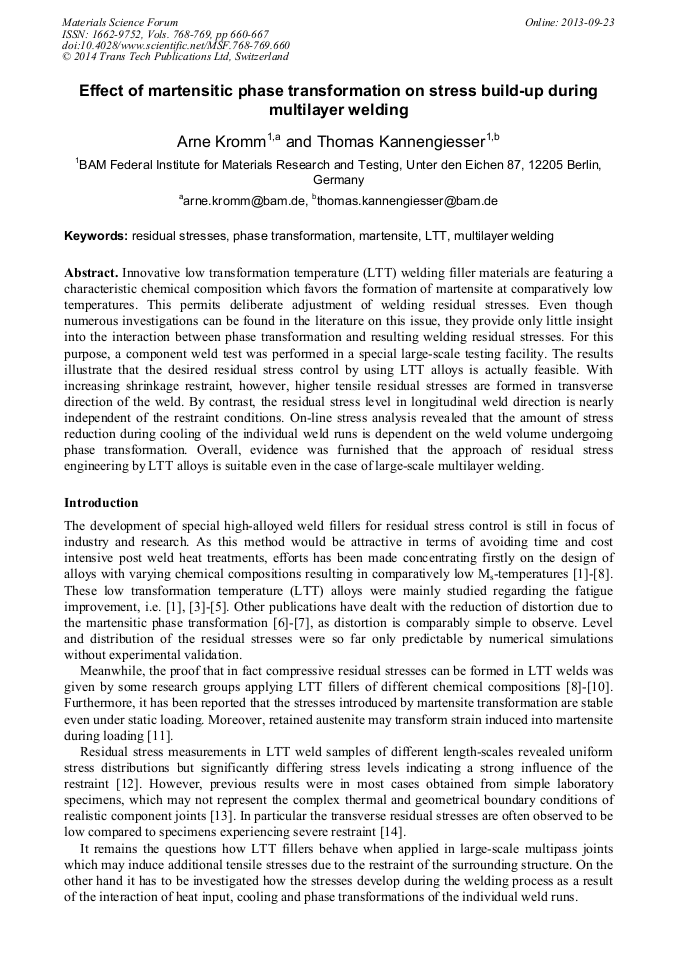

Effect of Martensitic Phase Transformation on Stress Build-up during Multilayer Welding

Abstract:

Innovative low transformation temperature (LTT) welding filler materials are featuring a characteristic chemical composition which favors the formation of martensite at comparatively low temperatures. This permits deliberate adjustment of welding residual stresses. Even though numerous investigations can be found in the literature on this issue, they provide only little insight into the interaction between phase transformation and resulting welding residual stresses. For this purpose, a component weld test was performed in a special large-scale testing facility. The results illustrate that the desired residual stress control by using LTT alloys is actually feasible. With increasing shrinkage restraint, however, higher tensile residual stresses are formed in transverse direction of the weld. By contrast, the residual stress level in longitudinal weld direction is nearly independent of the restraint conditions. On-line stress analysis revealed that the amount of stress reduction during cooling of the individual weld runs is dependent on the weld volume undergoing phase transformation. Overall, evidence was furnished that the approach of residual stress engineering by LTT alloys is suitable even in the case of large-scale multilayer welding.

• Periodical: Materials Science Forum (Volumes 768-769)
• Pages: 660-667
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.768-769.660
• Online since: September 2013
• Authors: Arne Kromm, Thomas Kannengiesser
• Keywords: LTT, Martensite, Multilayer Welding, Phase Transformation, Residual Stress

References

[1] A. Ohta, O. Watanabe, K. Matsuoka, C. Siga, S. Nishijima, Y. Maeda, N. Suzuki, T. Kubo, Fatigue Strength improvement by using newly developed low transformation temperature welding material, Weld. World 43 (1999) 38-42.

DOI: 10.1080/09507110009549271

[2] F. Martinez Diez, Development of Compressive Residual Stress in Structural Steel Weld Toes by Means of Weld Metal Phase Transformations, Weld. World 52 (2008) 63-78.

DOI: 10.1007/bf03266655

[3] W. Wang, L. Huo, Y. Zhang, D. Wang, H. Jing, New developed welding electrode for improving the fatigue strength of welded joints, J. Mater. Sci. Technol. 18 (2002) 527-531.

[4] Z. Barsoum, M. Gustafsson, Fatigue of high strength steel joints welded with low temperature transformation consumables, Engineering Failure Analysis 16 (2009) 2186-2194.

DOI: 10.1016/j.engfailanal.2009.02.013

[5] H. Lixing, W. Dongpo, W. Wenxian, Z. Yufeng, Ultrasonic Peening and Low Transformation Temperature Electrodes used for improving the Fatigue Strength of Welded Joints, Weld. World 48 (2004) 26-31.

DOI: 10.1007/bf03266425

[6] Y. Mikami, Y. Morikage, M. Mochizuki, M. Toyoda, Angular distortion of fillet welded T joint using low transformation temperature welding wire, Sci. Technol. Weld. Join. 14 (2009) 97-105.

DOI: 10.1179/136217108x382972

[7] A. A. Shirzadi, H. K. D. H. Bhadeshia, L. Karlsson, P.J. Withers, Stainless steel weld metal designed to mitigate residual stresses', Sci. Technol. Weld. Join. 14 (2009) 559-565.

DOI: 10.1179/136217109x437178

[8] H. Dai, J.A. Francis, H.J. Stone, H.K.D.H. Bhadeshia, P.J. Withers, Characterizing Phase Transformations and Their Effect on Ferritic Weld Residual Stresses with X-rays and Neutrons, Metall. Mater. Trans. A 39A (2008) 3070-3078.

DOI: 10.1007/s11661-008-9616-0

[9] A. Kromm, T. Kannengiesser, J. Gibmeier, In-situ Observation of Phase Transformations during Welding of Low Transformation Temperature Filler Material, Mater. Sci. Forum, 638-642 (2010) 3769-3774.

DOI: 10.4028/www.scientific.net/msf.638-642.3769

[10] C. Shiga, H.Y. Yasuda, K. Hiraoka, H. Suzuki, Effect of Ms temperature on the residual stress in welded joints of high-strength steels, Weld. World 54 (2010) 71-79.

DOI: 10.1007/bf03263490

[11] J. Altenkirch, J. Gibmeier, A. Kromm, T. Kannengiesser, T. Nitschke-Pagel, M. Hofmann, In situ study of structural integrity of low transformation temperature (LTT)-welds, Mater. Sci. Engineering A 528 (2011) 5566-5575.

DOI: 10.1016/j.msea.2011.03.091

[12] A. Kromm, T. Kannengiesser, J. Altenkirch, J. Gibmeier, Residual Stresses in Multilayer Welds with Different Martensitic Transformation Temperatures Analyzed by High-Energy Synchrotron Diffraction, Mater. Sci. Forum 681 (2011) 37-42.

DOI: 10.4028/www.scientific.net/msf.681.37

[13] T. Lausch, T. Kannengiesser, Multi-axial load analysis of thick-walled component welds made of 13CrMoV9-10, J. Mater. Process. Tech. (2013) http: /dx. doi. org/10. 1016/j. jmatprotec. 2013. 01. 008.

DOI: 10.1016/j.jmatprotec.2013.01.008

[14] T. Nitschke-Pagel, H. Wohlfahrt, Residual stresses in welded joints - sources and consequences, Mater. Sci. Forum 404-407 (2002) 215-226.

DOI: 10.4028/www.scientific.net/msf.404-407.215

[15] W.K.C. Jones, P.J. Alberry, A model for stress accumulation in steels during welding, in: Proc. Int. Conf. on Residual stresses in welded construction and their effects, London, 15-17 November 1977, Volume 1 – papers, The Welding Institute, Abington Hall, Abington, Cambridge, 1977, paper 2, pp.15-26.

[16] A. A. Shirzadi, H. K. D. H. Bhadeshia, Accumulation of stress in constrained assemblies: novel Satoh test configuration, Sci. Technol. Weld. Join. 15 (2010) 497-499.

DOI: 10.1179/136217110x12731414739998
