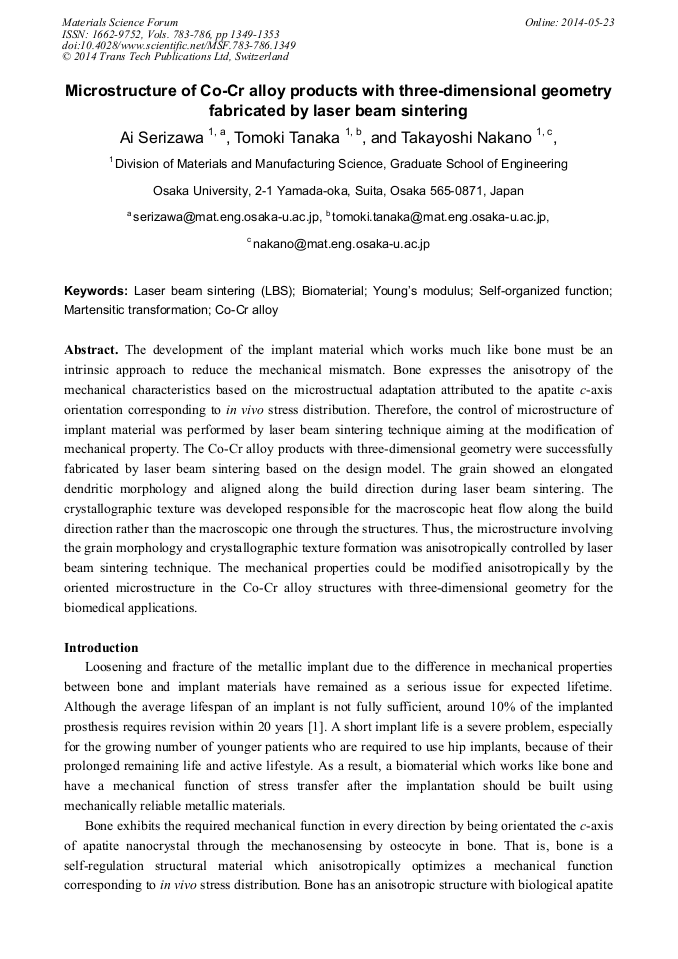

Microstructure of Co-Cr Alloy Products with Three-Dimensional Geometry Fabricated by Laser Beam Sintering

Ai Serizawa; Tomoki Tanaka; Takayoshi Nakano

doi:10.4028/www.scientific.net/MSF.783-786.1349

Paper Titles

Fabrication of Antibacterial Titanium Implant Using Anodic Oxidation Technique
p.1326

Osteoconductivity of Superhydrophilic Anodized TiO₂ Films Using Hydrothermal Treatment
p.1332

Plasma-Activated Electrospun Polylactide Fiber Meshes as Matrices for Tissue Engineering
p.1337

Bioengineering Application in Kinesitherapy of Children with Lower Limbs Dysfunction
p.1343

Microstructure of Co-Cr Alloy Products with Three-Dimensional Geometry Fabricated by Laser Beam Sintering
p.1349

Carbides and their Role in Advanced Mechanical Properties of L605 Alloy: Implications for Medical Devices
p.1354

Deformation Microstructure and Mechanisms in a Metastable β Titanium Alloy Exhibiting TWIP and TRIP Effects
p.1360

Octacalcium Phosphate: A Potential Scaffold Material for Controlling Activity of Bone-Related Cells In Vitro
p.1366

Effect of Phase Stability on Some Physical and Mechanical Properties in β-Ti Single Crystal for Biomedical Applications
p.1372

HomeMaterials Science ForumMaterials Science Forum Vols. 783-786Microstructure of Co-Cr Alloy Products with...

Microstructure of Co-Cr Alloy Products with Three-Dimensional Geometry Fabricated by Laser Beam Sintering

Abstract:

The development of the implant material which works much like bone must be an intrinsic approach to reduce the mechanical mismatch. Bone expresses the anisotropy of the mechanical characteristics based on the microstructual adaptation attributed to the apatite c-axis orientation corresponding to in vivo stress distribution. Therefore, the control of microstructure of implant material was performed by laser beam sintering technique aiming at the modification of mechanical property. The Co-Cr alloy products with three-dimensional geometry were successfully fabricated by laser beam sintering based on the design model. The grain showed an elongated dendritic morphology and aligned along the build direction during laser beam sintering. The crystallographic texture was developed responsible for the macroscopic heat flow along the build direction rather than the macroscopic one through the structures. Thus, the microstructure involving the grain morphology and crystallographic texture formation was anisotropically controlled by laser beam sintering technique. The mechanical properties could be modified anisotropically by the oriented microstructure in the Co-Cr alloy structures with three-dimensional geometry for the biomedical applications.
