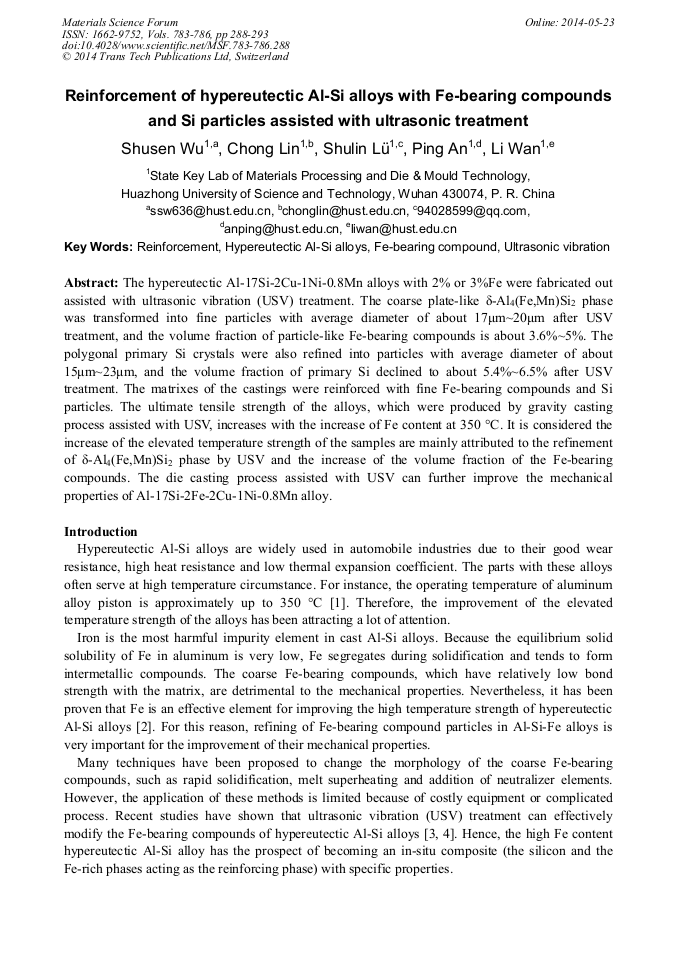

Reinforcement of Hypereutectic Al-Si Alloys with Fe-Bearing Compounds and Si Particles Assisted with Ultrasonic Treatment

Abstract:

The hypereutectic Al-17Si-2Cu-1Ni-0.8Mn alloys with 2% or 3%Fe were fabricated out assisted with ultrasonic vibration (USV) treatment. The coarse plate-like δ-Al4(Fe,Mn)Si2 phase was transformed into fine particles with average diameter of about 17μm~20μm after USV treatment, and the volume fraction of particle-like Fe-bearing compounds is about 3.6%~5%. The polygonal primary Si crystals were also refined into particles with average diameter of about 15μm~23μm, and the volume fraction of primary Si declined to about 5.4%~6.5% after USV treatment. The matrixes of the castings were reinforced with fine Fe-bearing compounds and Si particles. The ultimate tensile strength of the alloys, which were produced by gravity casting process assisted with USV, increases with the increase of Fe content at 350 °C. It is considered the increase of the elevated temperature strength of the samples are mainly attributed to the refinement of δ-Al4(Fe,Mn)Si2 phase by USV and the increase of the volume fraction of the Fe-bearing compounds. The die casting process assisted with USV can further improve the mechanical properties of Al-17Si-2Fe-2Cu-1Ni-0.8Mn alloy.

• Periodical: Materials Science Forum (Volumes 783-786)
• Pages: 288-293
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.783-786.288
• Online since: May 2014
• Authors: Shu Sen Wu*, Chong Lin, Shu Lin Lü, Ping An, Li Wan
• Keywords: Fe-Bearing Compound, Hypereutectic Al-Si Alloy, Reinforcement, Ultrasonic Vibration

References

[1] S. Manasijevic, R. Radisa, S. Markovic, Z. Acimovic-Pavlovic, K. Raic, Thermal analysis and microscopic characterization of the piston alloy AlSi13Cu4Ni2Mg, Intermetallics. 19 (2011) 486-492.

DOI: 10.1016/j.intermet.2010.11.011

[2] C. Lin, S. Wu, S. Lü, P. An, L. Wan, Effects of ultrasonic vibration and manganese on microstructure and mechanical properties of hypereutectic Al-Si alloys with 2%Fe, Intermetallics. 32 (2013) 176-183.

DOI: 10.1016/j.intermet.2012.09.001

[3] C. Lin, S. Wu, S. Lü, P. An, L. Wan, Microstructure and mechanical properties of rheo-diecast hypereutectic Al–Si alloy with 2%Fe assisted with ultrasonic vibration process, J. Alloys Compd. 568 (2013) 42-48.

DOI: 10.1016/j.jallcom.2013.03.089

[4] S. Lü, S. Wu, C. Lin, Z. Hu, P. An, Preparation and rheocasting of semisolid slurry of 5083 Al alloy with indirect ultrasonic vibration process, Mater. Sci. Eng. A 528(2011) 8635-8640.

DOI: 10.1016/j.msea.2011.08.014

[5] G.I. Eskin, Broad prospects for commercial application of the ultrasonic (cavitation) melt treatment of light alloys, Ultrason. Sonochem. 8 (2001) 319-325.

DOI: 10.1016/s1350-4177(00)00074-2

[6] J. Zhou, J. Duszczyk, B.M. Korevaar, As-spray-deposited structure of an Al-20Si-5Fe Osprey perform and its development during subsequent processing, J. Mater. Sci. 26 (1991) 5275-5291.

DOI: 10.1007/bf01143222
