Influence of Cold Rolling Reduction and Cross Rolling on Recrystallization Texture Formation in Electro Deposited Pure Iron with a Sharp and Homogeneous &lt;111&gt;//ND Fiber

Naoki Yoshinaga; Dirk Vanderschueren; Leo A.I. Kestens; Kohsaku  Ushioda; Natsuko Sugiura

doi:10.4028/www.scientific.net/MSF.783-786.313

Paper Titles

Reinforcement of Hypereutectic Al-Si Alloys with Fe-Bearing Compounds and Si Particles Assisted with Ultrasonic Treatment
p.288

Development of Homogeneity in an Al-6061 Alloy Processed by ECAP and ECAP-Conform
p.294

Effect of Contraction Behaviors during Solidification of 7xxx Aluminum Alloys on Hot Tearing Susceptibility
p.300

Mechanical Properties of Al-10 Mass % Si-Mg High-Pressure Die-Casting Alloy with Different Mg Content
p.307

Influence of Cold Rolling Reduction and Cross Rolling on Recrystallization Texture Formation in Electro Deposited Pure Iron with a Sharp and Homogeneous <111>//ND Fiber
p.313

The Numerical and Experimental Study on Electromagnet-Air Knife DC Casting Process of Large-Size AA 7055 Aluminum Alloys
p.319

The Numerical and Experimental Study on DC Casting Process of Three-Layer Composite Ingots of 4045/3004/4045 Aluminum Alloys
p.325

Effect of Processing Conditions on the Microstructure Development during Constrained Groove Pressing of Aluminium
p.331

Tensile Deformation of Magnesium and Magnesium Alloy Single Crystals
p.341

HomeMaterials Science ForumMaterials Science Forum Vols. 783-786Influence of Cold Rolling Reduction and Cross...

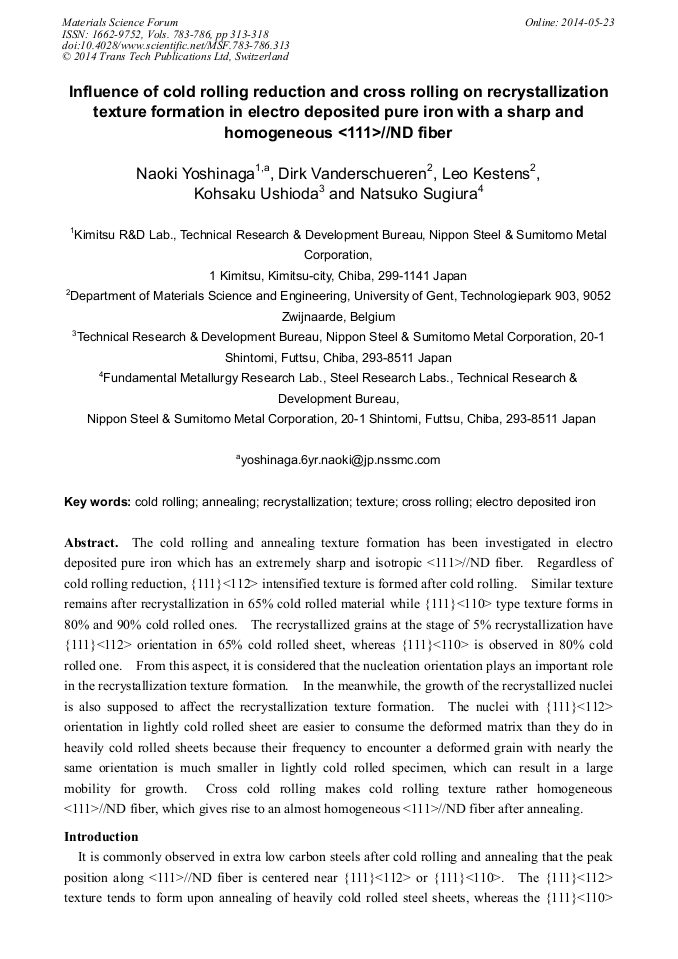

Influence of Cold Rolling Reduction and Cross Rolling on Recrystallization Texture Formation in Electro Deposited Pure Iron with a Sharp and Homogeneous <111>//ND Fiber

Abstract:

The cold rolling and annealing texture formation has been investigated in electro deposited pure iron which has an extremely sharp and isotropic <111>//ND fiber. Regardless of cold rolling reduction, {111}<112> intensified texture is formed after cold rolling. Similar texture remains after recrystallization in 65% cold rolled material while {111}<110> type texture forms in 80% and 90% cold rolled ones. The recrystallized grains at the stage of 5% recrystallization have {111}<112> orientation in 65% cold rolled sheet, whereas {111}<110> is observed in 80% cold rolled one. From this aspect, it is considered that the nucleation orientation plays an important role in the recrystallization texture formation. In the meanwhile, the growth of the recrystallized nuclei is also supposed to affect the recrystallization texture formation. The nuclei with {111}<112> orientation in lightly cold rolled sheet are easier to consume the deformed matrix than they do in heavily cold rolled sheets because their frequency to encounter a deformed grain with nearly the same orientation is much smaller in lightly cold rolled specimen, which can result in a large mobility for growth. Cross cold rolling makes cold rolling texture rather homogeneous <111>//ND fiber, which gives rise to an almost homogeneous <111>//ND fiber after annealing.
