Tensile Deformation of Magnesium and Magnesium Alloy Single Crystals

Shinji Ando; Atsushi Kodera; Kazuki Fukushima; Masayuki Tsushida; Hiromoto Kitahara

doi:10.4028/www.scientific.net/MSF.783-786.341

Paper Titles

Influence of Cold Rolling Reduction and Cross Rolling on Recrystallization Texture Formation in Electro Deposited Pure Iron with a Sharp and Homogeneous <111>//ND Fiber
p.313

The Numerical and Experimental Study on Electromagnet-Air Knife DC Casting Process of Large-Size AA 7055 Aluminum Alloys
p.319

The Numerical and Experimental Study on DC Casting Process of Three-Layer Composite Ingots of 4045/3004/4045 Aluminum Alloys
p.325

Effect of Processing Conditions on the Microstructure Development during Constrained Groove Pressing of Aluminium
p.331

Tensile Deformation of Magnesium and Magnesium Alloy Single Crystals
p.341

Corrosion Characterization of Magnesium Alloys – The Role of Process Parameters
p.346

Parameters Controlling High Temperature Deformability of Wrought Magnesium Alloys
p.352

The Effect of Ce Addition on the Creep Resistant Mg-Sr-Mn Alloys
p.358

The Orientation Dependence of Strain Hardening and Texture Development in an Extruded Magnesium Alloy
p.363

HomeMaterials Science ForumMaterials Science Forum Vols. 783-786Tensile Deformation of Magnesium and Magnesium...

Tensile Deformation of Magnesium and Magnesium Alloy Single Crystals

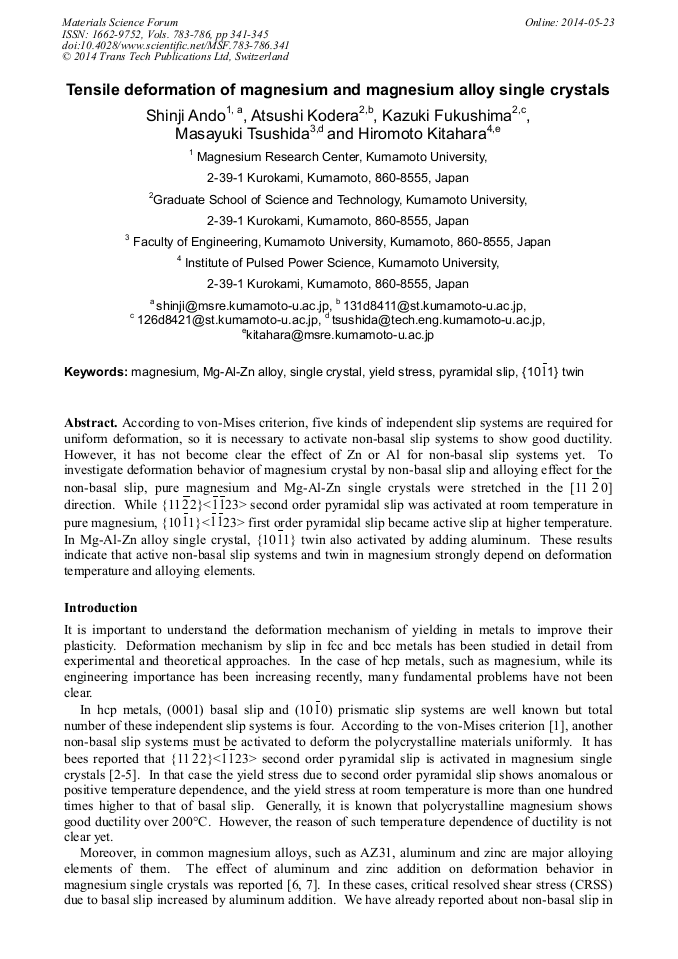

Abstract:

According to von-Mises criterion, five kinds of independent slip systems are required for uniform deformation, so it is necessary to activate non-basal slip systems to show good ductility. However, it has not become clear the effect of Zn or Al for non-basal slip systems yet. To investigate deformation behavior of magnesium crystal by non-basal slip and alloying effect for the non-basal slip, pure magnesium and Mg-Al-Zn single crystals were stretched in the [110] direction. While {112}<23> second order pyramidal slip was activated at room temperature in pure magnesium, {101}<23> first order pyramidal slip became active slip at higher temperature. In Mg-Al-Zn alloy single crystal, {101} twin also activated by adding aluminum. These results indicate that active non-basal slip systems and twin in magnesium strongly depend on deformation temperature and alloying elements.
