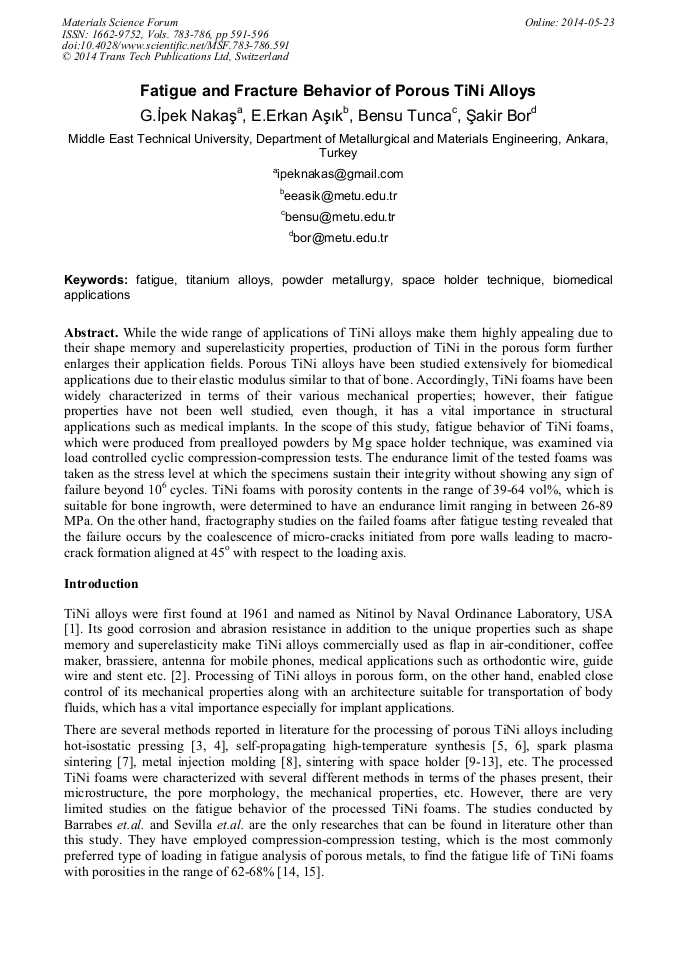

Fatigue and Fracture Behavior of Porous TiNi Alloys

Abstract:

While the wide range of applications of TiNi alloys make them highly appealing due to their shape memory and superelasticity properties, production of TiNi in the porous form further enlarges their application fields. Porous TiNi alloys have been studied extensively for biomedical applications due to their elastic modulus similar to that of bone. Accordingly, TiNi foams have been widely characterized in terms of their various mechanical properties; however, their fatigue properties have not been well studied, even though, it has a vital importance in structural applications such as medical implants. In the scope of this study, fatigue behavior of TiNi foams, which were produced from prealloyed powders by Mg space holder technique, was examined via load controlled cyclic compression-compression tests. The endurance limit of the tested foams was taken as the stress level at which the specimens sustain their integrity without showing any sign of failure beyond 10⁶ cycles. TiNi foams with porosity contents in the range of 39-64 vol%, which is suitable for bone ingrowth, were determined to have an endurance limit ranging in between 26-89 MPa. On the other hand, fractography studies on the failed foams after fatigue testing revealed that the failure occurs by the coalescence of micro-cracks initiated from pore walls leading to macro-crack formation aligned at 45^o with respect to the loading axis.

• Periodical: Materials Science Forum (Volumes 783-786)
• Pages: 591-596
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.783-786.591
• Online since: May 2014
• Authors: G. Ipek Nakaş*, Emin Erkan Aşık, Bensu Tunca, Şakir Bor
• Keywords: Biomedical Applications, Fatigue, Powder metallurgy, Space Holder Technique, Titanium Alloy

References

[1] D. Goldstein, A source manual for information on NITINOL and TiNi, Naval Surface Weapons Center. NSWC/WOL/TR-78-26 (1978).

[2] K. Otsuka, X. Ren, Physical metallurgy of Ti–Ni-based shape memory alloys, Prog. Mater. Sci. 50 (2005) 511-678.

DOI: 10.1016/j.pmatsci.2004.10.001

[3] S. Wu, C.Y. Chung, X. Liu, P.K. Chu, J.P.Y. Ho, C.L. Chu, Y.L. Chan, K.W.K. Yeung, W.W. Lu, K.M.C. Cheung, K.D.K. Luk, Pore formation mechanism and characterization of porous NiTi shape memory alloys synthesized by capsule-free hot isostatic pressing, Acta Mater. 55 (2007).

DOI: 10.1016/j.actamat.2007.01.045

[4] B. Yuan, C.Y. Chung, P. Huang, M. Zhu, Superelastic properties of porous TiNi shape memory alloys prepared by hot isostatic pressing, Mater. Sci. Eng.A. 438–440 (2006) 657-660.

DOI: 10.1016/j.msea.2005.12.077

[5] P. Bassani, P. Giuliani, A. Tuissi, C. Zanotti, Thermomechanical properties of porous NiTi alloy produced by SHS, J. Mater. Eng. Perform. 18 (2009) 594-599.

DOI: 10.1007/s11665-009-9493-8

[6] S. Wisutmethangoon, N. Denmud, L. Sikong, Characteristics and compressive properties of porous NiTi alloy synthesized by SHS technique, Mater. Sci. Eng.A. 515 (2009) 93-97.

DOI: 10.1016/j.msea.2009.02.055

[7] Y. Zhao, M. Taya, Y. Kang, A. Kawasaki, Compression behavior of porous NiTi shape memory alloy, Acta Mater. 53 (2005) 337-343.

DOI: 10.1016/j.actamat.2004.09.029

[8] M. Bram, M. Köhl, H. Buchkremer, D. Stöver, Mechanical properties of highly porous NiTi alloys, J. Mater. Eng. Perform. 20 (2011) 522-528.

DOI: 10.1007/s11665-011-9854-y

[9] H. Li, B. Yuan, Y. Gao, C. Chung, M. Zhu, High-porosity NiTi superelastic alloys fabricated by low-pressure sintering using titanium hydride as pore-forming agent, J. Mater. Sci. 44 (2009) 875-881.

DOI: 10.1007/s10853-008-3193-x

[10] B. Arpak, K. Araz, İ. Nakaş, Ş. Bor, İ. Nergiz, The mechanical characterization and in-vivo evaluation of porous TiNi as graft material, Funct. Mater. Lett. 5, (2012) 1250023-1-4.

DOI: 10.1142/s1793604712500233

[11] Z. Esen, Ş. Bor, Processing of titanium foams using magnesium spacer particles, Scr. Mater. 56 (2007) 341–344.

DOI: 10.1016/j.scriptamat.2006.11.010

[12] T. Aydoğmuş, Ş. Bor, Processing of porous TiNi alloys using magnesium as space holder, J. Alloys Compd. 478 (2009) 705–710.

DOI: 10.1016/j.jallcom.2008.11.141

[13] G.İ. Nakaş, A.F. Dericioğlu, Ş. Bor, Monotonic and cyclic compressive behavior of superelastic TiNi foams processed by sintering using magnesium space holder technique, Mater. Sci. Eng.A. 582 (2013) 140–146.

DOI: 10.1016/j.msea.2013.06.011

[14] M. Barrabés, P. Sevilla, J.A. Planell, F.J. Gil, Mechanical properties of nickel–titanium foams for reconstructive orthopaedics, Mater. Sci. Eng.C. 28 (2008) 23-27.

DOI: 10.1016/j.msec.2007.02.001

[15] P. Sevilla, C. Aparicio, J.A. Planell, F.J. Gil, Comparison of the mechanical properties between tantalum and nickel–titanium foams implant materials for bone ingrowth applications, J. Alloys Compd. 439 (2007) 67-73.

DOI: 10.1016/j.jallcom.2006.08.069

[16] J. Zhou, W.O. Soboyejo, Compression–compression fatigue of open cell aluminum foams: macro-/micro- mechanisms and the effects of heat treatment, Mater. Sci. Eng.A. 369 (2004) 23-35.

DOI: 10.1016/j.msea.2003.08.009

[17] M.F. Ashby, A.G. Evans, N.A. Fleck, L.J. Gibson, J.W. Hutchinson, H.N.G. Wadley, Metal foams: a design guide, Butterworth-Heinemann (2000).

DOI: 10.1016/b978-075067219-1/50001-5

[18] Y. Sugimura, A. Rabiei, A.G. Evans, A.M. Harte, N.A. Fleck, Compression fatigue of a cellular Al alloy, Mater. Sci. Eng.A. 269 (1999) 38-48.

DOI: 10.1016/s0921-5093(99)00147-1

[19] G.İ. Nakaş, A.F. Dericioğlu, Ş. Bor, Fatigue behavior of TiNi foams processed by the magnesium space holder technique, J. Mech. Behav. Biomed. 4 (2011) 2017 – (2023).

DOI: 10.1016/j.jmbbm.2011.06.021

[20] G. Eggeler, E. Hornbogen, A. Yawny, A. Heckmann, M. Wagner, Structural and functional fatigue of NiTi shape memory alloys, Mater. Sci. Eng.A. 378 (2004) 24-33.

DOI: 10.1016/j.msea.2003.10.327

[21] G.E. Dieter, Mechanical Metallurgy, SI Metric ed., McGraw-Hili Book Co., London (1988).

[22] J.E. Shigley, Mechanical Engineering Design, Third ed., McGraw-Hill Kogusha Ltd., Tokyo, Japan (1977).
