Three-Stage Character of Strain Hardening of α-Ti in Tension Conditions

Article Preview

Abstract:

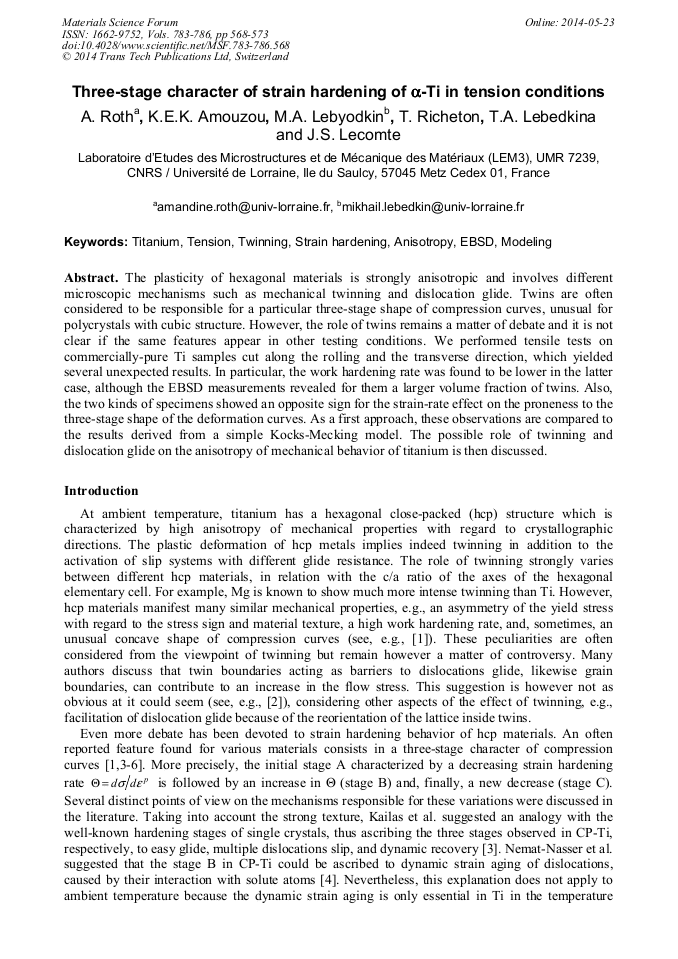

The plasticity of hexagonal materials is strongly anisotropic and involves different microscopic mechanisms such as mechanical twinning and dislocation glide. Twins are often considered to be responsible for a particular three-stage shape of compression curves, unusual for polycrystals with cubic structure. However, the role of twins remains a matter of debate and it is not clear if the same features appear in other testing conditions. We performed tensile tests on commercially-pure Ti samples cut along the rolling and the transverse direction, which yielded several unexpected results. In particular, the work hardening rate was found to be lower in the latter case, although the EBSD measurements revealed for them a larger volume fraction of twins. Also, the two kinds of specimens showed an opposite sign for the strain-rate effect on the proneness to the three-stage shape of the deformation curves. As a first approach, these observations are compared to the results derived from a simple Kocks-Mecking model. The possible role of twinning and dislocation glide on the anisotropy of mechanical behavior of titanium is then discussed.

You might also be interested in these eBooks

Info:

Periodical:

Materials Science Forum (Volumes 783-786)

Pages:

568-573

Citation:

Online since:

May 2014

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2014 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] J. Jiang, A. Godfrey, W. Liu, Q. Liu, Microtexture evolution via deformation twinning and slip during compression of magnesium alloy AZ31, Mater. Sci. Eng. A 483-484 (2008) 576-579.

DOI: 10.1016/j.msea.2006.07.175

Google Scholar

[2] D.R. Chichili, K.T. Ramesh, K.J. Hemker, The high-strain rate response of alpha-titanium: experiments, deformation mechanisms and modeling, Acta Mater. 46 (1998) 1025-1043.

DOI: 10.1016/s1359-6454(97)00287-5

Google Scholar

[3] S.V. Kailas, Y.V.R.K. Prasad, S.K. Biswas, Influence of initial texture on the microstructural instabilities during compression of commercial a-titanium at 25°C to 400°C, Metall. Mater. Trans. A 25 (1994) 1425-1434.

DOI: 10.1007/bf02665475

Google Scholar

[4] S. Nemat-Nasser, W.G. Guo, J.Y. Cheng, Mechanical properties and deformation mechanisms of a commercially pure titanium, Acta Mater. 47 (1999) 3705-3720.

DOI: 10.1016/s1359-6454(99)00203-7

Google Scholar

[5] M. Doner, H. Conrad, Deformation mechanisms in commercial Ti-50A (0. 5 at pct oeq) et intermediate and high-temperatures (0. 3 - 0. 6 TM), Metall. Trans. 4 (1973) 2809-2817.

DOI: 10.1007/bf02644581

Google Scholar

[6] A.A. Salem, S.R. Kalidindi, R.D. Doherty, Strain hardening regimes and microstructure evolution during large strain compression of high purity titanium, Scr. Mater. 46 (2002) 419-423.

DOI: 10.1016/s1359-6462(02)00005-2

Google Scholar

[7] A.A. Salem, S.R. Kalidindi, R.D. Doherty, Strain hardening of titanium: role of deformation twinning, Acta Mater. 51 (2003) 4225-4237.

DOI: 10.1016/s1359-6454(03)00239-8

Google Scholar

[8] L. Bao, J.S. Lecomte, C. Schuman, M.J. Philippe, X. Zhao, C. Esling, Study of plastic deformation in hexagonal metals by interrupted in-situ EBSD measurement, Adv. Eng. Mater. 12 (2010) 1053-1059.

DOI: 10.1002/adem.201000074

Google Scholar

[9] Y.N. Wang, J.C. Huang, Texture analysis in hexagonal materials, Mater. Chem. Phys. 81 (2003) 11-26.

Google Scholar

[10] T.A. Lebedkina, M.A. Lebyodkin, J.P. Château, A. Jacques, S. Allain, On the mechanism of unstable plastic flow in an austenitic FeMnC TWIP steel, Mat. Sci. Eng. A 519 (2009) 147-154.

DOI: 10.1016/j.msea.2009.04.067

Google Scholar

[11] H. Mecking, U.F. Kocks, Kinetics of flow and strain hardening, Acta Metall. 29 (1981) 1865–1877.

DOI: 10.1016/0001-6160(81)90112-7

Google Scholar
