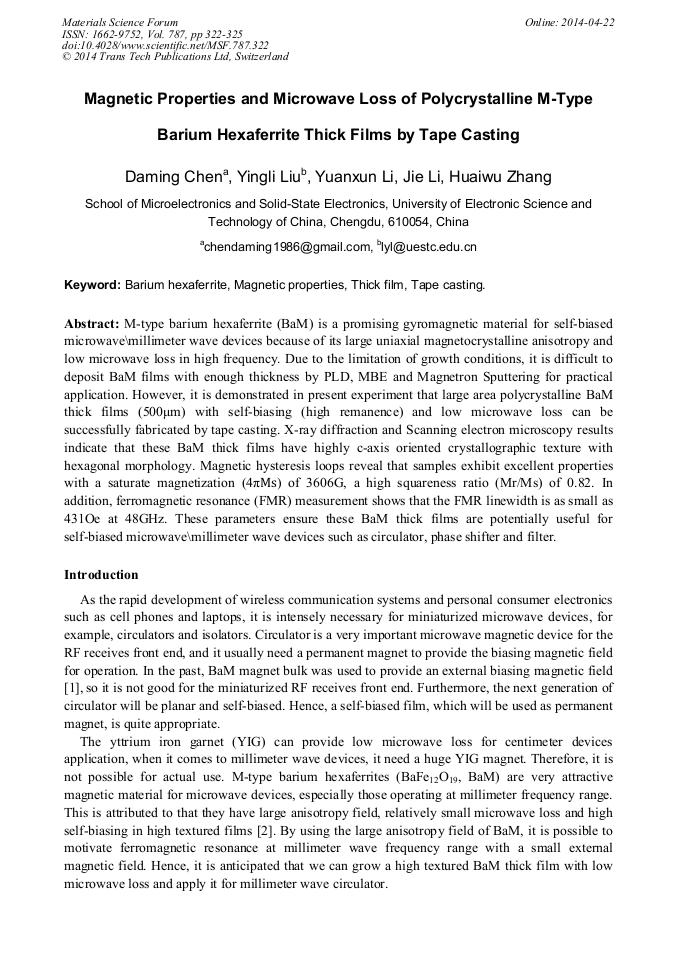

Magnetic Properties and Microwave Loss of Polycrystalline M-Type Barium Hexaferrite Thick Films by Tape Casting

Abstract:

M-type barium hexaferrite (BaM) is a promising gyromagnetic material for self-biased microwave\millimeter wave devices because of its large uniaxial magnetocrystalline anisotropy and low microwave loss in high frequency. Due to the limitation of growth conditions, it is difficult to deposit BaM films with enough thickness by PLD, MBE and Magnetron Sputtering for practical application. However, it is demonstrated in present experiment that large area polycrystalline BaM thick films (500μm) with self-biasing (high remanence) and low microwave loss can be successfully fabricated by tape casting. X-ray diffraction and Scanning electron microscopy results indicate that these BaM thick films have highly c-axis oriented crystallographic texture with hexagonal morphology. Magnetic hysteresis loops reveal that samples exhibit excellent properties with a saturate magnetization (4πMs) of 3606G, a high squareness ratio (Mr/Ms) of 0.82. In addition, ferromagnetic resonance (FMR) measurement shows that the FMR linewidth is as small as 431Oe at 48GHz. These parameters ensure these BaM thick films are potentially useful for self-biased microwave\millimeter wave devices such as circulator, phase shifter and filter.

• Periodical: Materials Science Forum (Volume 787)
• Pages: 322-325
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.787.322
• Online since: April 2014
• Authors: Da Ming Chen, Ying Li Liu, Yuan Xun Li, Jie Li, Huai Wu Zhang
• Keywords: Barium Hexaferrite, Magnetic Property, Tape Casting, Thick Film

References

[1] O'Neil, Benton K., and Jeffrey L. Young, Experimental investigation of a self-biased microstrip circulator, IEEE T. Microw. Theory 57 (2009) 1669-1674

DOI: 10.1109/tmtt.2009.2022588

[2] Yuanxun Li, Yingli Liu, Jie Li, Kai Yang, and Huaiwu Zhang, Magnetic and self-biased properties of highly oriented M-type barium ferrite films on Pt-coated Si substrate by magnetron sputtering, J. Appl. Phys. 113 (2013) 17B306.

DOI: 10.1063/1.4798608

[3] Saraf L, Lofland S, Arthur V, Bhagat S and Ramesh R, Structural and ferromagnetic resonance characteristics of BaFeO films with minimal linewidths, Appl. Phys. Lett. 79 (2001) 16-18.

DOI: 10.1063/1.1385348

[4] Yoon S and Vittoria C,  Microwave and magnetic properties of barium hexaferrite films having the c-axis in the film plane by liquid phase epitaxy technique, J. Appl. Phys. 93 (2003) 8597-8599.

DOI: 10.1063/1.1557791

[5] Chen Da-Ming, Liu Ying-Liu, Li Yuan-Xun, Yang Kai, and Zhang Huai-Wu, Texture and self-biased property of an oriented M-type barium ferrite thick film by tape casting Chin. Phys. B 21(2012) 067502.

DOI: 10.1088/1674-1056/21/6/067502

[6] Yajie Chen, Michacl J. Nedoroscik, Anton L. Geiler et al., Perpendicularly oriented polycrystalline BaFe11. 1Sc0. 9O19 hexaferrite with narrow FMR linewidths, J. Am. Ceram. Soc. 91 (2008) 2952.

DOI: 10.1111/j.1551-2916.2008.02578.x
