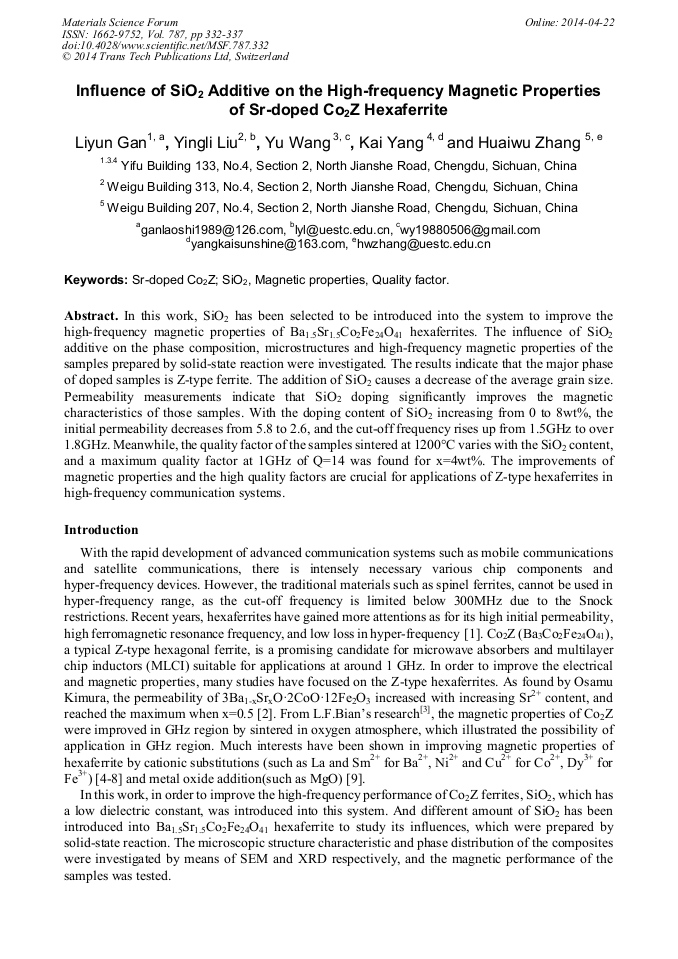

Influence of SiO₂ Additive on the High-Frequency Magnetic Properties of Sr-Doped Co₂Z Hexaferrite

Abstract:

In this work, SiO₂ has been selected to be introduced into the system to improve the high-frequency magnetic properties of Ba_1.5Sr_1.5Co₂Fe₂₄O₄₁ hexaferrites. The influence of SiO₂ additive on the phase composition, microstructures and high-frequency magnetic properties of the samples prepared by solid-state reaction were investigated. The results indicate that the major phase of doped samples is Z-type ferrite. The addition of SiO₂ causes a decrease of the average grain size. Permeability measurements indicate that SiO₂ doping significantly improves the magnetic characteristics of those samples. With the doping content of SiO₂ increasing from 0 to 8wt%, the initial permeability decreases from 5.8 to 2.6, and the cut-off frequency rises up from 1.5GHz to over 1.8GHz. Meanwhile, the quality factor of the samples sintered at 1200°C varies with the SiO₂ content, and a maximum quality factor at 1GHz of Q=14 was found for x=4wt%. The improvements of magnetic properties and the high quality factors are crucial for applications of Z-type hexaferrites in high-frequency communication systems.

• Periodical: Materials Science Forum (Volume 787)
• Pages: 332-337
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.787.332
• Online since: April 2014
• Authors: Li Yun Gan, Ying Li Liu, Yu Wang, Kai Yang, Dainan Zhang
• Keywords: Magnetic Property, Quality Factor, SiO₂, Sr-Doped Co₂Z

References

[1] Zhang H G, Li L T, Wang Y L, Zhou J, Yue Z X, Gui Z L J. Am. Ceram. Soc. 85(5), 1180–1184 (2002)

[2] Kimura O, Matsumoto M, Sakakura M J Am Ceram Soc. 78(10), 2857-2860 (1995)

[3] Bian L F, Liu Y L, Li Y X, Zhang H W, Proceedings of 10th International Conference on Ferrites 374-377 (2008)

[4] Xu J J, Yang C M, Zou H F, Song Y H, Gao G M, An B C, Gan S C Journal of Magnetism and Magnetic Materials 321 3231–3235 (2009)

[5] Xu J J, Ji G J, Zou H F, Song Y H, Gan S C Journal of Magnetism and Magnetic Materials 323 157–162 (2011)

[6] Bai Y, Xu F, Qiao L J, Zhou J Materials Research Bulletin 44 898–900 (2009)

[7] S. Kračunovska, J. Töpfer J Mater Sci: Mater Electron 22 467–473 (2011)

[8] Mu C H, Liu Y L, Song Y Q, Wang L G, Zhang H W Journal of Applied Physics 109 123925 (2011)

[9] Jia L J, Zhang H W, Luo J, Liu Y L, Wen Q Y Journal of Magnetism and Magnetic Materials 322 1934–1938 (2010)

[10] Jia L J, Luo J, Zhang H W, Xue G, Jing Y L Journal of Alloys and Compounds 489 162–166 (2010)

[11] Wang X H, Li L T, Yue Z Xi, Su S Y Journal of Magnetism and Magnetic Materials 271 301–306 (2004)

[12] Takada Y, Nakagawa T, Tokunaga M, et al. J Appl Phys 100(4) 043904 (2006)
