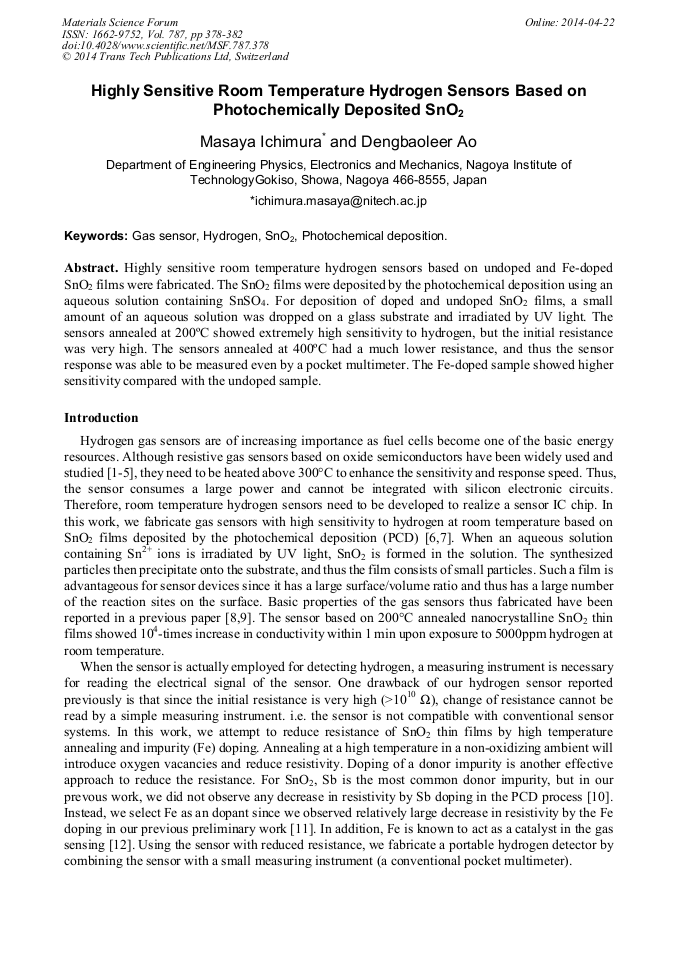

Highly Sensitive Room Temperature Hydrogen Sensors Based on Photochemically Deposited SnO₂

Abstract:

Highly sensitive room temperature hydrogen sensors based on undoped and Fe-doped SnO₂ films were fabricated. The SnO₂ films were deposited by the photochemical deposition using an aqueous solution containing SnSO₄. For deposition of doped and undoped SnO₂ films, a small amount of an aqueous solution was dropped on a glass substrate and irradiated by UV light. The sensors annealed at 200oC showed extremely high sensitivity to hydrogen, but the initial resistance was very high. The sensors annealed at 400oC had a much lower resistance, and thus the sensor response was able to be measured even by a pocket multimeter. The Fe-doped sample showed higher sensitivity compared with the undoped sample.

• Periodical: Materials Science Forum (Volume 787)
• Pages: 378-382
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.787.378
• Online since: April 2014
• Authors: Masaya Ichimura*, Dengbaoleer Ao
• Keywords: Gas Sensor, Hydrogen, Photochemical Deposition, SnO₂

References

[1] G. Korotcenkov, Metal oxides for solid-state gas sensors: What determines our choice?, Mater. Sci. Eng. B 139 (2007) 1-23.

DOI: 10.1016/j.mseb.2007.01.044

[2] S. Shukla, S. Seal, L. Ludwig, C. Parish, Nanocrystalline indium oxide-doped tin oxide thin film as low temperature hydrogen sensor, Sens. Actuators B 97 (2004) 256-265.

DOI: 10.1016/j.snb.2003.08.025

[3] H. T. Wang, B. S. Kang, F. Ren, L. C. Tien, P. W. Sadik, D. P. Norton, J. Peatron, J. Lin, Hydrogen-selective sensing at room temperature with ZnO nanorods, Appl. Phys. Lett. 86 (2005) 243503

DOI: 10.1063/1.1949707

[4] Y. Shen, T. Yamazaki, Z. Liu, C. Jin, T. Kikuta, N. Nakatani, Porous SnO2 sputtered films with high H2 sensitivity at low operation temperature, Thin Solid Films 516 (2008) 5111-5117.

DOI: 10.1016/j.tsf.2007.12.139

[5] H. Nakagawa, N. Yamamoto, S. Okazaki, T. Chinzei, S. Asakura, A room-temperature operated hydrogen leak sensor, Sens. Actuators B 93 (2003) 468-474.

DOI: 10.1016/s0925-4005(03)00201-6

[6] M. Ichimura, K. Shibayama, K. Masui, Fabrication of SnO2 Thin films by a photochemical deposition method, Thin Solid Films 466 (2004) 34-36.

DOI: 10.1016/j.tsf.2004.01.117

[7] D. Ito, M. Ichimura, Room-temperature hydrogen sensing properties of SnO2 thin films fabricated by the photochemical deposition and doping methods, Jpn. J. Appl. Phys 45 (2006) 7094-7096.

DOI: 10.1143/jjap.45.7094

[8] M. Ichimura, T. Sueyoshi, Room temperature gas sensor with a high sensitivity to hydrogen based on SnO2 films prepared by photochemical techniques, Jpn. J. Appl. Phys 48 (2009) 015503

DOI: 10.1143/jjap.48.015503

[9] M. Ichimura, Aodengbaoleer, T. Sueyoshi, Properties of gas sensors based on photochemically deposited nanocrystalline SnO2 films, Phys. Status Solidi C 7 (2010) 1168-1671.

DOI: 10.1002/pssc.200982670

[10] D. Ao, M. Ichimura, Deposition and characterization of Sb and Cu doped nanocrystalline SnO2 thin films fabricated by the photochemical method, J. Non-Crystalline Solids 358 (2012) 2470-2473.

DOI: 10.1016/j.jnoncrysol.2011.12.049

[11] D. Ao, M. Ichimura, Deposition of Fe doped nanocrystalline SnO2 thin films by the photochemical deposition method, Trans. Mater. Res. Soc. Jpn. 37 (2012) 377-380.

DOI: 10.14723/tmrsj.37.377

[12] S. Rani, S.C. Roy, M. C. Bhantnagar, Effect of Fe doping on the gas sensing properties of nano-crystalline SnO2 thin films, Sens. Actuators B 122 (2007) 204-210.

DOI: 10.1016/j.snb.2006.05.032
