Thermodynamics Analysis on Combustion Synthesis of β-SiAlON

Xue Mei Yi; Jing Niu; Tomohiro Akiyama

doi:10.4028/www.scientific.net/MSF.787.383

Paper Titles

Influence of Particle Size and Ca Addition on the Magnetic Performance and Microstructure of MnZn Ferrite
p.362

High-Frequency Performance of Co₂FeAl Half-Metallic Films Prepared by Oblique Sputtering under Various Deposition Conditions
p.368

Surface Roughness in Alumina Thin Film Deposited on Silica Using Oblique Incidence
p.373

Highly Sensitive Room Temperature Hydrogen Sensors Based on Photochemically Deposited SnO₂
p.378

Thermodynamics Analysis on Combustion Synthesis of β-SiAlON
p.383

Synthesis of Pure Dicalcium Silicate Powder by the Pechini Method and Characterization of Hydrated Cement
p.387

Synthesis and Characterization of Surfactant-Free PDEA/PMAA of IPN Nanogel
p.395

Synthesis of Nanogels of Poly Methyacrylic Acid Using Methyl Cellulose as a Template
p.401

Fabrication and Characterization of Carbon Fiber Paper for Application of Proton Exchange Membrane Fuel Cells
p.407

HomeMaterials Science ForumMaterials Science Forum Vol. 787Thermodynamics Analysis on Combustion Synthesis of...

Thermodynamics Analysis on Combustion Synthesis of β-SiAlON

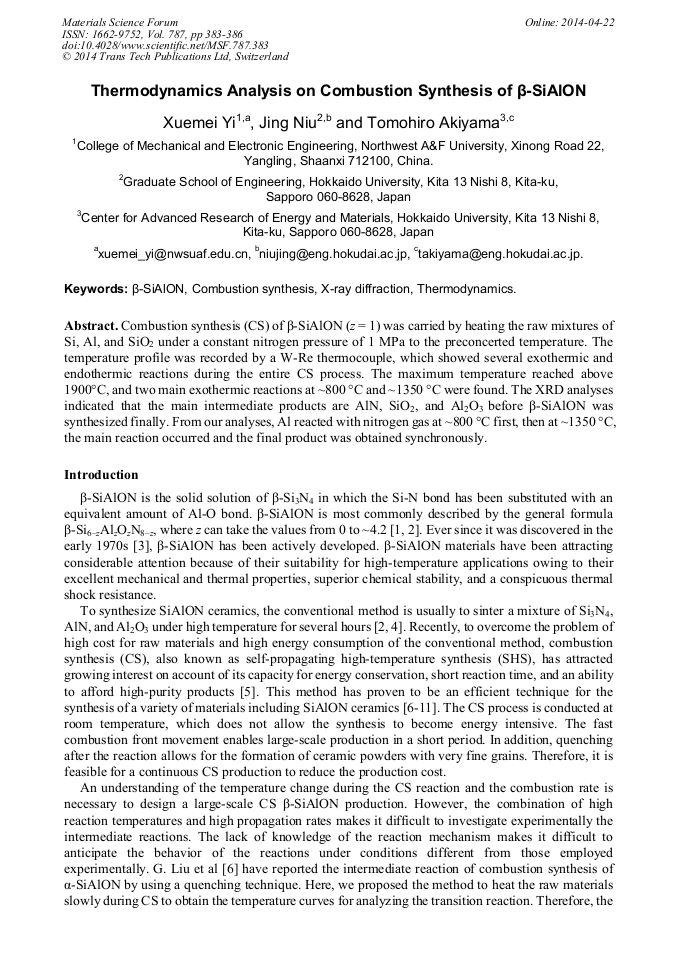

Abstract:

Combustion synthesis (CS) of β-SiAlON (z = 1) was carried by heating the raw mixtures of Si, Al, and SiO₂ under a constant nitrogen pressure of 1 MPa to the preconcerted temperature. The temperature profile was recorded by a W-Re thermocouple, which showed several exothermic and endothermic reactions during the entire CS process. The maximum temperature reached above 1900°C, and two main exothermic reactions at ~800 °C and ~1350 °C were found. The XRD analyses indicated that the main intermediate products are AlN, SiO₂, and Al₂O₃ before β-SiAlON was synthesized finally. From our analyses, Al reacted with nitrogen gas at ~800 °C first, then at ~1350 °C, the main reaction occurred and the final product was obtained synchronously.

You might also be interested in these eBooks

Energy, Environment and Functional Materials

View Preview

Info:

Periodical:

Materials Science Forum (Volume 787)

Pages:

383-386

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.787.383

Citation:

Cite this paper

Online since:

April 2014

Authors:

Xue Mei Yi*, Jing Niu, Tomohiro Akiyama

Keywords:

Combustion Synthesis, Thermodynamic, X-Ray Diffraction (XRD), Β-Sialon

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] K. H. Jack, Sialons and related nitrogen ceramics, J. Mater. Sci. 11 (1976) 1135–1158.

DOI: 10.1007/bf02396649

Google Scholar

[2] T. Ekström, P.O. Käll, M. Nygren, P.O. Olssen, Dense single-phase β-sialon ceramics by glass-encapsulated hot isostatic pressing, J. Mater. Sci. 24 (1989) 1853–1861.

DOI: 10.1007/bf01105715

Google Scholar

[3] Y. Oyama, O. Kamigaito, Solid Solubility of Some Oxides in Si3N4, Japan. J. Appl. Phys. 10 (1971) 1673.

Google Scholar

[4] J. Briggs, Pressureless sintering of SiAlON ceramics, Mater. Res. Bull. 12 (1977) 1047–1055.

DOI: 10.1016/0025-5408(77)90032-0

Google Scholar

[5] Z.A. Munir, U. Anselmi-Tamburini, Self-propagating exothermic reactions: The synthesis of high-temperature materials by combustion, Mater. Sci. Reports 3 (1989) 277–365.

DOI: 10.1016/0920-2307(89)90001-7

Google Scholar

[6] G. Liu, K. Chen, H. Zhou, C. Pereira, J.M.F. Ferreira, Phase transformation and growth of rod-like α-SiAlON particles during combustion synthesis, Mater Lett. 60 (2006) 1276–1279.

DOI: 10.1016/j.matlet.2005.11.024

Google Scholar

[7] C.L. Yeh, K.C. Sheng, Effects of α-Si3N4 and AlN addition on formation of α-SiAlON by combustion synthesis, J. Alloy. Comp. 509 (2011) 529–534.

DOI: 10.1016/j.jallcom.2010.09.093

Google Scholar

[8] G. Liu, K. Chen, J. Li, Combustion synthesis of SiAlON ceramic powders: A review, Mater. Manu. Proc., available on-line, 2013.

DOI: 10.1080/10426914.2012.718471

Google Scholar

[9] X. Yi, K. Watanabe, T. Akiyama, Fabrication of dense β-SiAlON by a combination of combustion synthesis (CS) and spark plasma sintering (SPS), Intermetallics. 18 (2010) 536–541.

DOI: 10.1016/j.intermet.2009.10.004

Google Scholar

[10] K. Aoyagi, T. Hiraki, R. Sivakumar, T. Watanabe, T. Akiyama, Mechanically activated combustion synthesis of β-Si6-zAlzOzN8-z (z = 1 to 4), J. Am. Ceram. Soc. 90 (2007) 626–628.

Google Scholar

[11] X. Yi, T. Akiyama, Mechanical-activated, combustion synthesis of β-SiAlON, J. Alloy. Compd. 495 (2010) 144–148.

Google Scholar

[12] X. Yi, J. Niu, T. Nakamura, T. Akiyama, Reaction mechanism for combustion synthesis of β-SiAlON by using Si, Al, and SiO2 as raw materials, J. Alloy. Compd. 561 (2013) 1–4.

DOI: 10.1016/j.jallcom.2013.01.170

Google Scholar
