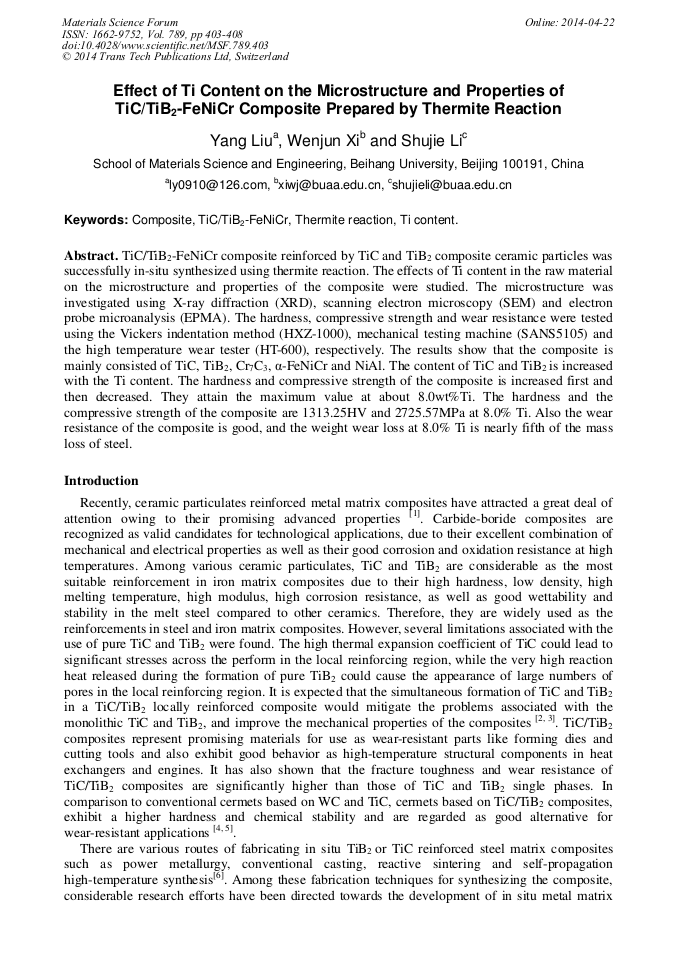

Effect of Ti Content on the Microstructure and Properties of TiC/TiB₂-FeNiCr Composite Prepared by Thermite Reaction

Abstract:

TiC/TiB₂-FeNiCr composite reinforced by TiC and TiB₂ composite ceramic particles was successfully in-situ synthesized using thermite reaction. The effects of Ti content in the raw material on the microstructure and properties of the composite were studied. The microstructure was investigated using X-ray diffraction (XRD), scanning electron microscopy (SEM) and electron probe microanalysis (EPMA). The hardness, compressive strength and wear resistance were tested using the Vickers indentation method (HXZ-1000), mechanical testing machine (SANS5105) and the high temperature wear tester (HT-600), respectively. The results show that the composite is mainly consisted of TiC, TiB₂, Cr₇C₃, α-FeNiCr and NiAl. The content of TiC and TiB₂ is increased with the Ti content. The hardness and compressive strength of the composite is increased first and then decreased. They attain the maximum value at about 8.0wt%Ti. The hardness and the compressive strength of the composite are 1313.25HV and 2725.57MPa at 8.0% Ti. Also the wear resistance of the composite is good, and the weight wear loss at 8.0% Ti is nearly fifth of the mass loss of steel.

• Periodical: Materials Science Forum (Volume 789)
• Pages: 403-408
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.789.403
• Online since: April 2014
• Authors: Yang Liu*, Wen Jun Xi, Shu Jie Li
• Keywords: Composite, Thermite Reaction, Ti Content, TiC/TiB₂-FeNiCr

References

[1] X.H. Zhang M.H. Yu，H.Q. Tang G.C. Su. Effect of copper addition on microstructures and mechanical properties of in situ TiCp/Fe composites. Materials and Design 2011；32:3560-3565.

DOI: 10.1016/j.matdes.2011.01.026

[2] Ya-feng Yang，Hui-yuan Wang，Yun-hong Liang，Ru-yi Zhao，Qi-chuan Jiang. Fabrication of steel matrix composites locally reinforced with different ratios of TiC/TiB2 particulates using SHS reactions of Ni-Ti-B4C and Ni-Ti-B4C systems during casting. Materials Science and Engineering A 2007；445-446：398-404.

DOI: 10.1016/j.msea.2006.09.062

[3] Wenjun Xi，Haijing Wang，Jing Li，Chaoliang Shi. A NiAl-and TiC-Reinforced Fe-based nanocomposite prepared by the rapid-solidification thermite process. Materials Science and Engineering A 2012；541：166-171

DOI: 10.1016/j.msea.2012.01.132

[4] D.Vallauri I.C. Atías Adrián，A. Chrysanthou. TiC–TiB2 composites: Areview of phase relationships，processing and properties. ScienceDirect 2008；28：1697-1713.

DOI: 10.1016/j.jeurceramsoc.2007.11.011

[5] Q.C. Jiang B.X. Ma，H.Y. Wang，Y. Wang Y.P. Dong. Fabrication of steel matrix composites locally reinforced with in situ TiB2-TiC particulates using self-propageting high-temperature synthesis reaction of Al-Ti-B4C and Ni-Ti-B4C system during casting. Science Direct 2006； Composites：Part A 37：133-138.

DOI: 10.1016/j.compositesa.2005.03.011

[6] Binghong Li，Ying Liu，Jun Li，Hui Cao，Lin He. Effect of sintering process on the microstructures and properties of in situ TiB2-TiC reinforced steel matrix composites produced by spark plasma sintering. Journal of materials Processing Technology 2010；210:91-95.

DOI: 10.1016/j.jmatprotec.2009.08.008

[7] H.Y. Wang Q.C. Jiang X.L. Li，F. Zhao. Effect of Al content on the self-propagating high-temperature synthesis reaction of Al-Ti-C system in molten magnesium. Journal of Alloys and Compounds 2009；366：L9-L12.

DOI: 10.1016/s0925-8388(03)00737-0
