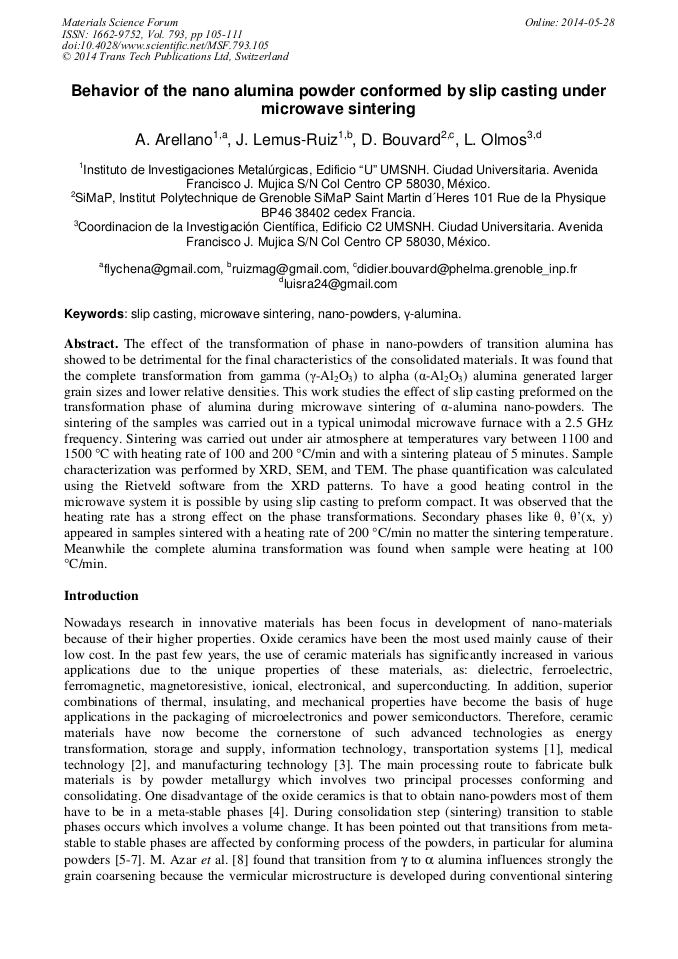

Behavior of the Nano Alumina Powder Conformed by Slip Casting under Microwave Sintering

Abstract:

The effect of the transformation of phase in nanopowders of transition alumina has showed to be detrimental for the final characteristics of the consolidated materials. It was found that the complete transformation from gamma (γ-Al₂O₃) to alpha (α-Al₂O₃) alumina generated larger grain sizes and lower relative densities. This work studies the effect of slip casting preformed on the transformation phase of alumina during microwave sintering of α-alumina nanopowders. The sintering of the samples was carried out in a typical unimodal microwave furnace with a 2.5 GHz frequency. Sintering was carried out under air atmosphere at temperatures vary between 1100 and 1500 °C with heating rate of 100 and 200 °C/min and with a sintering plateau of 5 minutes. Sample characterization was performed by XRD, SEM, and TEM. The phase quantification was calculated using the Rietveld software from the XRD patterns. To have a good heating control in the microwave system it is possible by using slip casting to preform compact. It was observed that the heating rate has a strong effect on the phase transformations. Secondary phases like θ, θ’(x, y) appeared in samples sintered with a heating rate of 200 °C/min no matter the sintering temperature. Meanwhile the complete alumina transformation was found when sample were heating at 100 °C/min.

• Periodical: Materials Science Forum (Volume 793)
• Pages: 105-111
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.793.105
• Online since: May 2014
• Authors: A. Arellano*, J. Lemus-Ruiz, D. Bouvard, L. Olmos
• Keywords: Microwave Sintering, Nanopowder, Slip Casting, γ-Alumina

References

[1] C.Y. Tang, P.S. Uskokovic, C.P. Tsui, D. Veljovic, R. Petrovic, D. Janackovic, Influence of microstructure and phase composition on the nanoindentation characterization of bioceramic materials based on hydroxyapatite, Ceram. Int. 35 (2009) 2171–2178.

DOI: 10.1016/j.ceramint.2008.11.028

[2] J. Alonso-Santos, M.G. Tellez-Arias, E. Bedolla, J.Lemus-Ruiz, Microstructural behavior during bonding of alumina to niobium by liquid state diffusion, Materials Science Forum 755 (2013) 171-177.

DOI: 10.4028/www.scientific.net/msf.755.171

[3] W. Krenkel, F. Berndt, C/C–SiC composites for space applications and advanced friction systems, Materials Science and Engineering A 412(2005) 177-181.

DOI: 10.1016/j.msea.2005.08.204

[4] C.G. Levi, Metestability and microstructure evolution in the synthesis of inorganics from precursor, Acta. Mater. 46 (1998) 787-800.

[5] F.W. Dynis and J.W. Halloran, Alpha alumina formation in alum-derived gamma alumina, J. American Ceramic Society 65 (1982) 442-448.

DOI: 10.1111/j.1151-2916.1982.tb10511.x

[6] P.A. Badkar, and J.E. Bailey, The mechanism of simultaneous sintering and phase transformations in alumina, J. Mat. Sci. 11 (1796) 1794-1806.

[7] C. Legros, C. Carry, P. Bowen, H. Hofmann, Sintering of a transitions alumina: Effect of phase Transformation, powder Characteristics and thermal cycle, J. Eur. Ceram. Soc. 19 (1999) 1967-1978.

DOI: 10.1016/s0955-2219(99)00016-3

[8] M. Azar, P. Palmero, M. Lombardi, V. Garnier, L. Montanro, G. Fontozzi, J. Chevalier, Effect of initial particle on the sintering of nanostructures transition alumina, J. Eur. Ceram. Soc. 28 (2008) 1121-1128.

DOI: 10.1016/j.jeurceramsoc.2007.10.003

[9] X. Zhipeng, Y. Jinlong, H. Young, Densification and grain growth of alumina by microwave processing, Mat. Letters 37 (1998) 215-220.

[10] J. Freim, J. Mckittrick, Microwave sintering of nanocrystalline γ-Alimina, Nanostructure Materials 4 (1994) 371-385.

DOI: 10.1016/0965-9773(94)90108-2

[11] K.I. Rybakov, A.G. Eremeev, S.V. Egorov, Y.V. Bykov, Z.Pajkic, Efecct of microwave heating on phase transformations in nanostructured alumina, J. Phys. D. Appl. Phys 41 (2008) 1-4.

DOI: 10.1088/0022-3727/41/10/102008

[12] S. Charmond, C Carry, D Bouvard, Densification and microstructure evolution of Y-tetragonal, zirconia Policristal powder during direct and hybrid microwave sintering a single mode cavity, J. Euro. Ceram. Soc. 30 (2010) 1211–1221.

DOI: 10.1016/j.jeurceramsoc.2009.11.014

[13] A. Arellano, J. Lemus-Ruiz, D. Bouvard, S. D. D. La Torre, L. Olmos, Efecto del conformado en frio en la sinterizacion de nanopolvos de Alumina, Bol. Soc. Esp. Cer. Vidrio 52 (2013) XIX-XXII.

DOI: 10.3989/cyv.2013.v52.i5.1233

[14] F. Herbs. Transformation-Frittage d´aluminas de transition nanostructures, projet de thèse de doctorat, SiMaP 2002.
