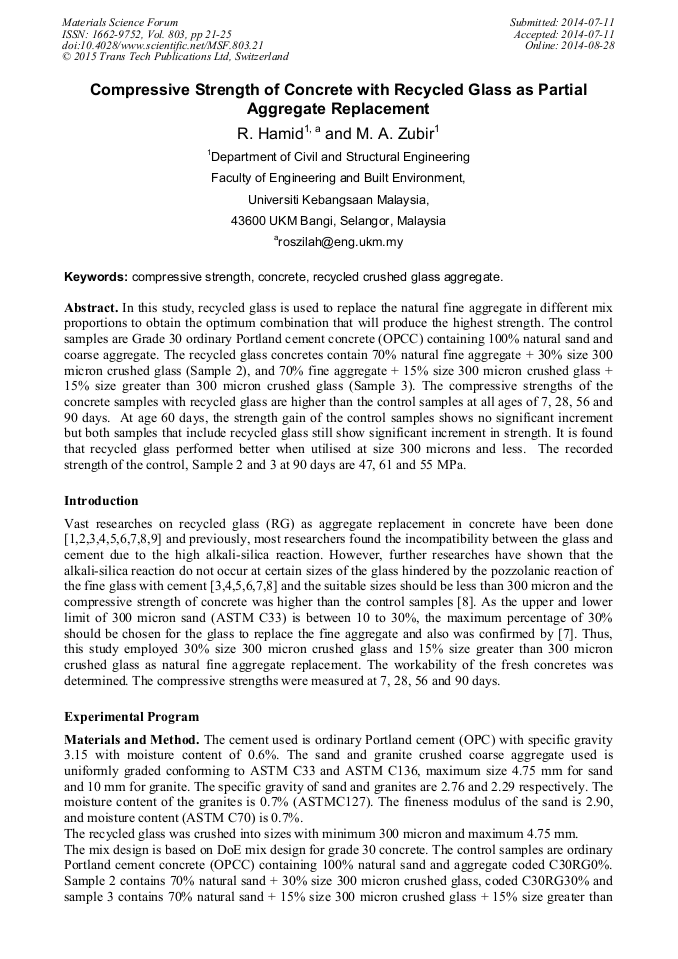

Compressive Strength of Concrete with Recycled Glass as Partial Aggregate Replacement

Abstract:

In this study, recycled glass is used to replace the natural fine aggregate in different mix proportions to obtain the optimum combination that will produce the highest strength. The control samples are Grade 30 ordinary Portland cement concrete (OPCC) containing 100% natural sand and coarse aggregate. The recycled glass concretes contain 70% natural fine aggregate + 30% size 300 micron crushed glass (Sample 2), and 70% fine aggregate + 15% size 300 micron crushed glass + 15% size greater than 300 micron crushed glass (Sample 3). The compressive strengths of the concrete samples with recycled glass are higher than the control samples at all ages of 7, 28, 56 and 90 days. At age 60 days, the strength gain of the control samples shows no significant increment but both samples that include recycled glass still show significant increment in strength. It is found that recycled glass performed better when utilised at size 300 microns and less. The recorded strength of the control, Sample 2 and 3 at 90 days are 47, 61 and 55 MPa.

• Periodical: Materials Science Forum (Volume 803)
• Pages: 21-25
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.803.21
• Online since: August 2014
• Authors: Roszilah Hamid*, M.A. Zubir
• Keywords: Compressive Strength, Concrete, Recycled Crushed Glass Aggregate

References

[1] C.D. Johnston: Waste Glass as Coarse Aggregate for Concrete. American Society for Testing Materials, Journal of Testing and Evaluation, Vol. 2 (1974), No. 5, pp.1-7.

[2] J.W. Figg: Reaction between Cement and Artificial Glass in Concrete. Conference on Alkali-Aggregate Reaction in Concrete, Cape Town, South Africa. Pretoria, National Building Research Institute, CSIR, (1981) pp.1-20.

[3] Z.P. Bazant, W. Jin, and C. Meyer: Micro fracturing caused by alkali-silica reaction of waste glass in concrete. Fracture Mechanics of Concrete Structures (3rd Int. Conf., FraMCoS – 3), edited by Mihashi H. and Rokugo K., Aedificatio Publishers, D-79104 Freiburg, Germany, Vol. 3 (1998).

[4] J. Rindl: Report by Recycling Manager, Dane County, Report of Dept. of Public Works, (1998), Madison, USA.

[5] A.J. Carpenter and S.M. Cramer:. Mitigation of Alkali-Silica Reaction in Pavement Patch Concrete that Incorporates Highly Reactive Fine Aggregate. Transportation Research Record. Vol. 1668 (1999), pp.60-67, DOI 10. 3141/1668-09.

DOI: 10.3141/1668-09

[6] W. Jin, C. Meyer and S. Baxter: Glascrete, —concrete with glass aggregate. ACI Mater J. Vol. 97 (2000), p.208–213.

[7] A. Shayan, & A. Xu: Value-added utilization of waste glass in concrete. Cement and Concrete Research. Vol. 34(1) (2004), pp.81-89.

DOI: 10.1016/s0008-8846(03)00251-5

[8] A. Shayan, & A. Xu: Performance of glass powder as a pozzolanic material in concrete: a field trial on concrete slabs. Cement and Concrete Research. Vol. 36(3) (2006), pp.457-468.

DOI: 10.1016/j.cemconres.2005.12.012

[9] Z. Z. Ismail, E.A. AL-Hashmi:. Recycling of waste glass as a partial replacement for fine aggregate in concrete. Waste Management, Vol. 29 (2009), p.655–659.

DOI: 10.1016/j.wasman.2008.08.012
