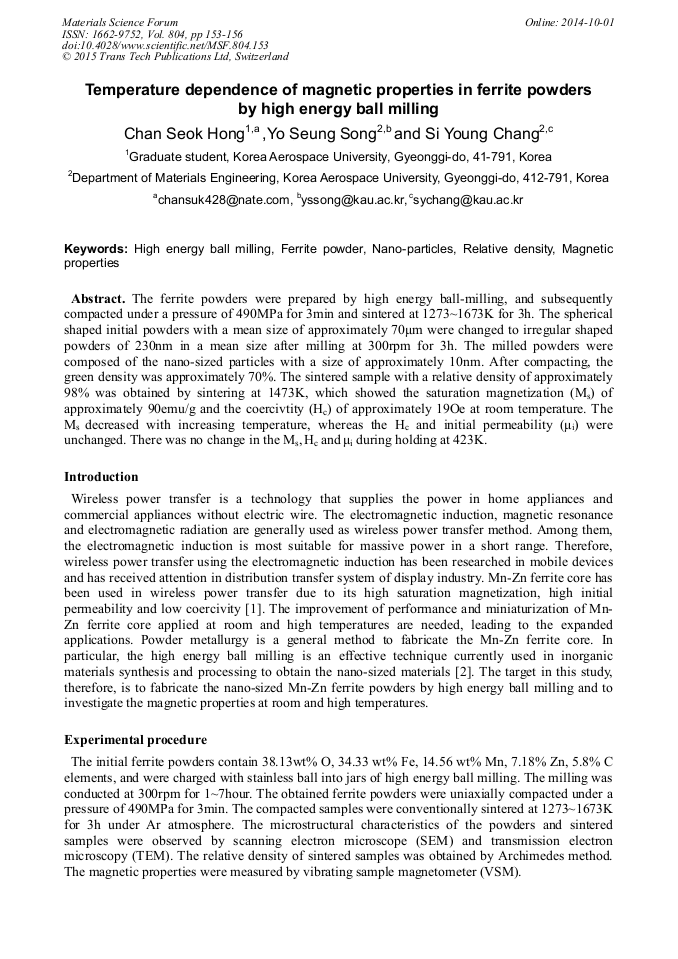

Temperature Dependence of Magnetic Properties in Ferrite Powders by High Energy Ball Milling

Abstract:

The ferrite powders were prepared by high energy ball-milling, and subsequently compacted under a pressure of 490MPa for 3min and sintered at 1273~1673K for 3h. The spherical shaped initial powders with a mean size of approximately 70μm were changed to irregular shaped powders of 230nm in a mean size after milling at 300rpm for 3h. The milled powders were composed of the nanosized particles with a size of approximately 10nm. After compacting, the green density was approximately 70%. The sintered sample with a relative density of approximately 98% was obtained by sintering at 1473K, which showed the saturation magnetization (M_s) of approximately 90emu/g and the coercivtity (H_c) of approximately 19Oe at room temperature. The M_s decreased with increasing temperature, whereas the H_c and initial permeability (μ_i) were unchanged. There was no change in the M_s, H_c and μ_i during holding at 423K.

• Periodical: Materials Science Forum (Volume 804)
• Pages: 153-156
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.804.153
• Online since: October 2014
• Authors: Chan Seok Hong*, Yo Seung Song, Si Young Chang
• Keywords: Ferrite Powder, High Energy Ball Milling, Magnetic Property, Nanoparticle, Relative Density

References

[1] P. Hu, H. Yang, D. Pan, H. Wang, J. Tian, S. Zhang, X. Wang and A. Volinsky: Magnetism and Magnetic Materials Vol. 322 (2010), p.173.

[2] S.K. Pradhan, S. Bid, M. Gateshki and V. Petkov: Materials Chemistry and Physics Vol. 93 (2005), p.224.

[3] A.C.F.M. Costa, E. Tortella, M.R. Morelli and R.H.G.A. Kiminami: Magnetism and Magnetic Materials Vol. 256 (2003), p.174.

[4] B.D. Cullity and C.D. Graham: Introduction to Magnetic Materials, (translated by G. Y Kim, Bando publisher, Seoul 1992).
