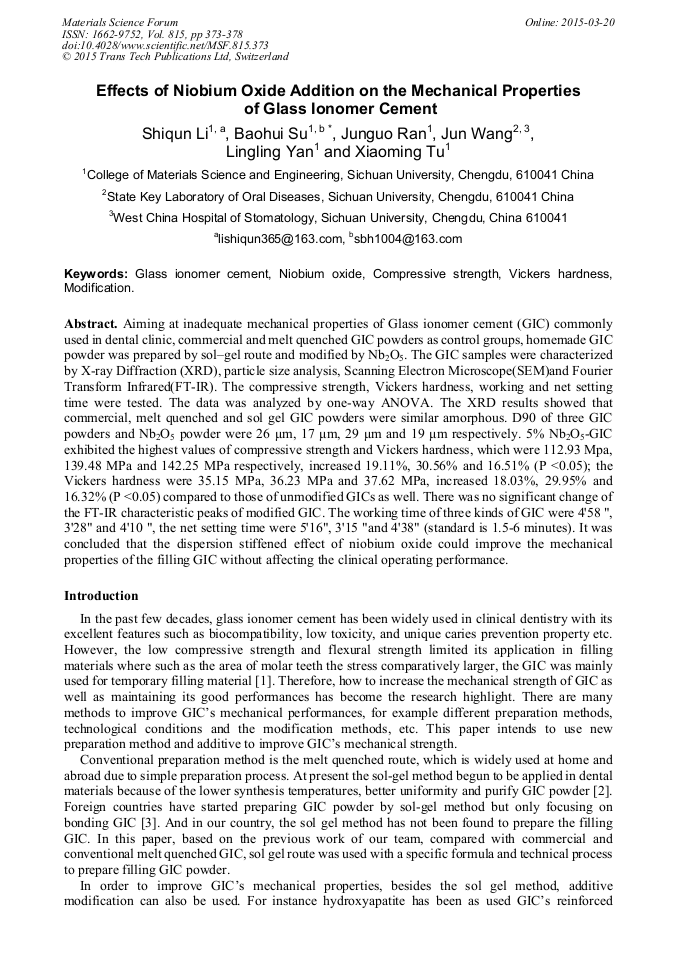

Effects of Niobium Oxide Addition on the Mechanical Properties of Glass Ionomer Cement

Abstract:

Aiming at inadequate mechanical properties of Glass ionomer cement (GIC) commonly used in dental clinic, commercial and melt quenched GIC powders as control groups, homemade GIC powder was prepared by sol–gel route and modified by Nb₂O₅. The GIC samples were characterized by X-ray Diffraction (XRD), particle size analysis, Scanning Electron Microscope (SEM) and Fourier Transform Infrared (FT-IR). The compressive strength, Vickers hardness, working and net setting time were tested. The data was analyzed by one-way ANOVA. The XRD results showed that commercial, melt quenched and sol gel GIC powders were similar amorphous. D90 of three GIC powders and Nb₂O₅ powder were 26 μm, 17 μm, 29 μm and 19 μm respectively. 5% Nb₂O₅-GIC exhibited the highest values of compressive strength and Vickers hardness, which were 112.93 Mpa, 139.48 MPa and 142.25 MPa respectively, increased 19.11%, 30.56% and 16.51% (P <0.05); the Vickers hardness were 35.15 MPa, 36.23 MPa and 37.62 MPa, increased 18.03%, 29.95% and 16.32% (P <0.05) compared to those of unmodified GICs as well. There was no significant change of the FT-IR characteristic peaks of modified GIC. The working time of three kinds of GIC were 4'58 ", 3'28" and 4'10 ", the net setting time were 5'16", 3'15 "and 4'38" (standard is 1.5-6 minutes). It was concluded that the dispersion stiffened effect of niobium oxide could improve the mechanical properties of the filling GIC without affecting the clinical operating performance.

• Periodical: Materials Science Forum (Volume 815)
• Pages: 373-378
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.815.373
• Online since: March 2015
• Authors: Shi Qun Li, Bao Hui Su*, Jun Guo Ran, Jun Wang, Ling Ling Yan, Xiao Ming Tu
• Keywords: Compressive Strength, Glass Ionomer Cement, Modification, Niobium Oxide, Vickers Hardness

References

[1] Lohbauer, Ulrich. Dental Glass Ionomer Cements as Permanent Filling Materials?–Properties, Limitations and Future Trends., Materials 3. 1 (2009), pp.76-96.

DOI: 10.3390/ma3010076

[2] Bertolini, M. J., et al. Preparation and evaluation of an experimental luting glass ionomer cement to be used in dentistry., Journal of Materials Science: Materials in Medicine 20. 9 (2009), pp.1781-1785.

DOI: 10.1007/s10856-009-3748-7

[3] Yong Kim Æ Mark R. Towler Æ Anthony Wren Æ Fabrication of sphericalCaO–SrO–ZnO–SiO2 particles by sol–gel processingJ . Mater Sci: Mater Med (2009) 20, p.2267–2273.

DOI: 10.1007/s10856-009-3790-5

[4] Di, L. I. U., et al. Study of Properties of Glass Ionomer Cement Modified by HA., Bulletin of the Chinese ceramic society 29. 2 (2010).

[5] Eisenbarth, E., et al. Nanostructured niobium oxide coatings influence osteoblast adhesion., Journal of Biomedical Materials Research Part A 79. 1 (2006), pp.166-175.

DOI: 10.1002/jbm.a.30823

[6] Eisenbarth, E., D. Velten, and J. Breme. Biomimetic implant coatings., Bio molecular engineering 24. 1 (2007), pp.27-32.

DOI: 10.1016/j.bioeng.2006.05.016

[7] Ochsenbein, Anne, et al. Osteoblast responses to different oxide coatings produced by the sol–gel process on titanium substrates., Acta biomaterial 4. 5 (2008), pp.1506-1517.

DOI: 10.1016/j.actbio.2008.03.012

[8] Bertolini, Marcio José, Maria Aparecida Zaghete, and Rossano Gimenes. Development of an experimental glass ionomer cement containing niobium and fluoride., Journal of non-crystalline solids 351. 52 (2005), pp.3884-3887.

DOI: 10.1016/j.jnoncrysol.2005.10.008

[9] Bertolini, Márcio J., et al. Determination of the properties of an experimental glass polyalkenoate cement prepared from niobium silicate particles containing fluoride., dental materials 24. 1 (2008), pp.124-128.

DOI: 10.1016/j.dental.2007.03.005

[10] YY 0271. 1-2009 Dental water-based cements , Part 1: pink liquid alkali cement [S].

[11] Xie, D., et al. Mechanical properties and microstructures of glass-ionomer cements., Dental Materials 16. 2 (2000), pp.129-138.

DOI: 10.1016/s0109-5641(99)00093-7

[12] Prentice, Leon H., Martin J. Tyas, and Michael F. Burrow. The effect of particle size distribution on an experimental glass-ionomer cement., Dental materials 21. 6 (2005), pp.505-510.

DOI: 10.1016/j.dental.2004.07.016
